Your Lincoln Navigator is sagging. Maybe one corner is sitting low. Maybe the compressor is running nonstop. Maybe you woke up to a truck that won't lift off the bump stops. Whatever the symptom, you've landed in the same place thousands of Navigator owners have before you: staring down an air suspension repair that's going to cost serious money.
The good news: you have real options. The bad news: one of them will almost certainly send you back to the shop within a year or two.
We've seen what happens to Lincoln Navigator air suspension systems across every generation — from the original 1998 model to the current generation. Here's the honest cost breakdown, what each option actually includes, and why the "cheapest" fix isn't always what it appears to be.
Why Lincoln Navigator Air Suspension Fails (And Why It Keeps Failing)
The Lincoln Navigator has used an active air suspension system since 1998. The system uses rubber air springs at each corner to adjust ride height and absorb road impact — and that rubber has a lifespan.
Most Navigator air springs start failing between 80,000 and 100,000 miles. The rubber dries out, develops micro-cracks, and eventually starts leaking. Once a spring leaks, the compressor has to work overtime to maintain pressure. That extra workload burns out the compressor. Then you replace the compressor — and the remaining springs keep leaking. Then another spring goes. Then another.
This is what Navigator owners mean when they call it a "money pit." It's not bad luck. It's the design. Cascade failures are the rule, not the exception — especially on 2003–2014 models, which are most prone to this pattern.
And before you even get a repair estimate, budget $150–$300 just for the dealer diagnostic fee.
Lincoln Navigator Air Suspension Repair Cost: The 3 Options
There are three realistic paths when your Navigator's air suspension fails. Each has a different upfront cost, a different risk profile, and a very different long-term outcome.
Option 1: Dealer or Independent Shop Repair (OEM Air Suspension)
This is the "fix it like it was" approach — replace the failed component with an OEM or OEM-equivalent air spring or compressor and carry on.
What it costs (2025–2026 data via RepairPal, January 2026):
- Air spring replacement (per corner): $816–$1,217
- Full set (4 corners): $3,200–$4,800+
- Compressor replacement: $800–$1,200
- Full air suspension overhaul: $4,000–$8,000+
These aren't worst-case numbers. That's the current RepairPal range for a Navigator air spring job — parts and labor at a shop.
What you're getting:
Your truck rides the same as factory. The system functions as designed. Ride height adjustment works. If everything is replaced at once, you may have a few good years before the next failure.
The catch:
Most shops don't replace all four corners at once unless you push for it. They fix the failed spring. You pay $900–$1,200 for that one corner. Three months later, a second spring fails. You pay again. Then the compressor goes because it was already stressed. You end up paying $4,000–$6,000 piecemeal over 18 months instead of having a real conversation upfront.
Even if you do everything at once, you're restoring an aging system with the same fundamental flaw. Those new rubber air springs will start the same degradation cycle all over again.
Best for: Navigators under 70,000 miles with a single isolated failure, still under extended warranty, or purchased recently and clearly maintained.
Option 2: DIY Replacement with Aftermarket Air Springs
If you're mechanically inclined, buying aftermarket air springs and doing the work yourself cuts the cost significantly.
What it costs (parts only):
- Air spring per corner (aftermarket): $200–$400
- Compressor (aftermarket): $300–$500
- Full DIY parts cost: $1,200–$2,500
That's a real saving over dealer pricing. If you have the tools, the time, and the experience to work on air suspension, this is a legitimate option.
What you're getting:
Lower parts cost. The satisfaction of doing it yourself. A system that still functions as designed — including height adjustment.
What you need to know:
Aftermarket air springs vary wildly in quality. Some are excellent. Some fail within 18 months. Budget time to research what fits your specific year and trim.
More importantly: if you don't install a bypass module, your warning lights will stay on. The Navigator's electronic control module expects to see the air suspension system functioning as factory. Swapping in parts without addressing the module means living with a persistent warning light and potentially degraded electronic functions. Some DIYers don't realize this until after the install.
Also: you're still replacing rubber air springs. You're still on the same failure clock. On a high-mileage Navigator, you may be doing this again in 60,000–80,000 miles — or sooner, depending on parts quality.
Best for: Experienced DIYers with a specific year and trim that has solid aftermarket support, low-to-moderate mileage, and who understand the warning light issue before starting.
Option 3: Strutmasters Coil Spring Conversion Kit
This is the option most Navigator owners wish they'd known about from the start.
Instead of replacing rubber air springs with more rubber air springs, a conversion kit replaces the entire air suspension system with conventional coil springs. No air. No compressor. No rubber to crack.
What it costs:
- Strutmasters conversion kit (vehicle-specific): $400–$1,200
- Installation at an independent shop: ~$500
- Total out-of-pocket: ~$900–$1,700
Compare that to $4,000–$8,000 at a dealer. You're looking at a fraction of the cost — with a better long-term outcome.
What's included:
Strutmasters kits are engineered specifically for Lincoln Navigator years and configurations. Each kit includes the coil springs, struts or shocks, and critically — an electronic bypass module that tells the vehicle's computer the air suspension system is operating normally. No warning lights. No error codes.
The install difficulty is roughly comparable to a brake job. A competent independent shop can complete it in a few hours.
What you're getting:
A suspension system that doesn't rely on rubber to hold pressure. Coil springs last 80,000–100,000+ miles under normal conditions — and they don't cascade-fail. When a coil spring eventually wears out, you replace that spring. The failure mode is simple, predictable, and affordable.
Strutmasters has been in this business since 1999 — they invented the air-to-coil conversion kit category. More than 250,000 kits are currently on the road. The engineering is mature, the fitment is proven, and the bypass module is part of the package, not an afterthought.
The tradeoff:
You lose active ride height adjustment. The Navigator will sit at a fixed, factory-correct height. For most owners — especially those driving on regular roads rather than off-road terrain — this isn't a meaningful loss. The ride quality remains comfortable. You just don't get the automatic leveling.
If you rely on the Navigator's load-leveling for heavy towing or frequent payload variation, factor that in. For the vast majority of owners dealing with a failing air suspension on a daily driver, it's not a consideration.
Best for: 2003–2014 Navigators with over 80,000 miles, any Navigator experiencing cascade failures, and anyone who's already repaired the air suspension once and wants a permanent fix.
Side-by-Side Cost Comparison
| Dealer Repair | DIY Air Springs | Strutmasters Conversion | |
|---|---|---|---|
| Cost (single corner) | $816–$1,217 | $200–$400 (parts) | — |
| Cost (full system) | $4,000–$8,000+ | $1,200–$2,500 (parts) | $900–$1,700 (all-in) |
| Warning lights resolved | ✅ | ⚠️ Without bypass module | ✅ Bypass module included |
| Failure risk | Same system, same failure timeline | Same system, same failure timeline | Coil springs: 80k–100k+ miles |
| Labor required | Shop only | DIY capable | DIY or independent shop |
| Long-term outcome | Repair cycle repeats | Repair cycle repeats | System eliminated |
Year-Specific Notes: Which Navigators Are Most at Risk?
2003–2006 Lincoln Navigator Air Suspension
These are the highest-risk years for cascade failure. The first-generation system is now 20+ years old, and any Navigator in this range with original air springs is living on borrowed time. If you're buying one of these used, assume the air suspension will need attention immediately.
2007–2014 Lincoln Navigator Air Suspension
Second-generation Navigators are in the sweet spot of "old enough to fail, popular enough to still be on the road in high numbers." This is the most common call we see. If yours is in this range and hasn't had air suspension work, it's coming.
2015–2017 Lincoln Navigator Air Suspension
Third-generation models are starting to hit the mileage thresholds. Not as common yet, but early failures are showing up — especially on higher-mileage examples.
2018–Present Lincoln Navigator Air Suspension
Current-gen Navigators are generally still within the early failure window, but the same rubber-and-compressor design means the same lifecycle applies. Plan accordingly.
The Real Question: Fix the System or Replace It?
If your Navigator has under 70,000 miles and a single, isolated spring failure — fix the spring. It makes sense.
If your Navigator has over 80,000 miles, has already had one air suspension repair, or you're buying a used Navigator with an unknown service history — you're not fixing a broken part. You're trying to extend the life of a system that's at the end of its cycle.
The math is simple: $900–$1,700 once, or $4,000–$8,000 now with the same repair coming again in a few years.
The conversion kit doesn't just save you money upfront. It changes the failure mode entirely.
Fix It Once. Fix It Right.
If you're done chasing air suspension repairs on your Lincoln Navigator, Strutmasters makes a vehicle-specific conversion kit for your year and configuration — coil springs, struts, and the bypass module your truck's computer needs. No warning lights, no compressor to burn out, no rubber to crack.
View Lincoln Navigator Conversion Kits
Over 250,000 kits on the road since 1999. Installation at any independent shop. Priced at a fraction of what the dealer charges to put you right back on the same failure cycle.
Your Navigator is worth keeping. The air suspension doesn't have to come with it.

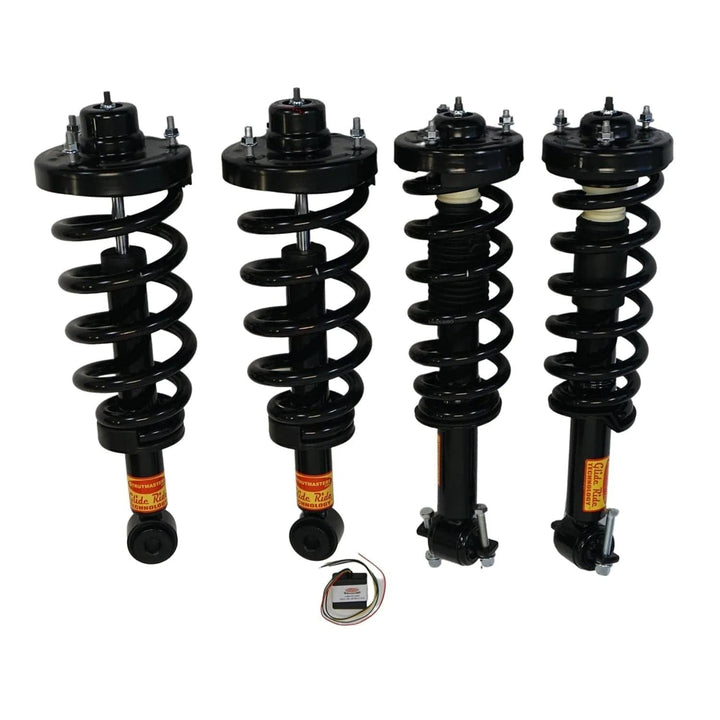

2015-2017 Lincoln Navigator With CCD 4 Wheel Conversion Kit with Light Out Module (FX44FM)
$889.00
2015 to 2017 Lincoln Navigator MKS Active Electronic To Passive Suspension Conversion Kit is a great way to eliminate the expense of dealing with the vehicle’s computerized suspension system.Using a technology previously known as CCD (Continuously Controlled Dampening System), Lincoln… read more

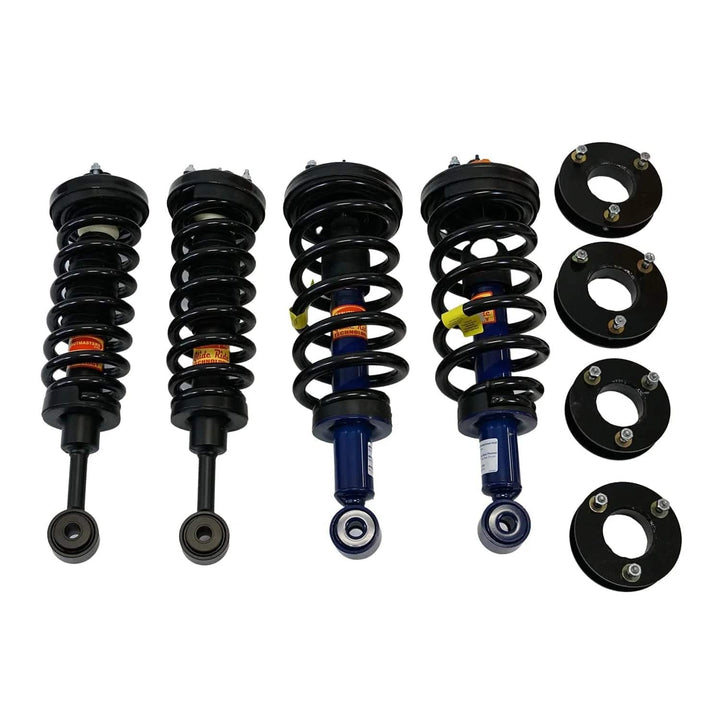

2007-2014 Lincoln Navigator 4 Wheel Air Suspension Conversion And Lift Kit (FX34FL)
$969.00
Convert Your Air Suspension To A Coil Spring Suspension. End Your Air Suspension Problems Forever... 2007-2014 Lincoln Navigator 2WD & 4WD Air Strut To Coil Over Strut Conversion With Lift Kit is the perfect solution to your air suspension problems.… read more

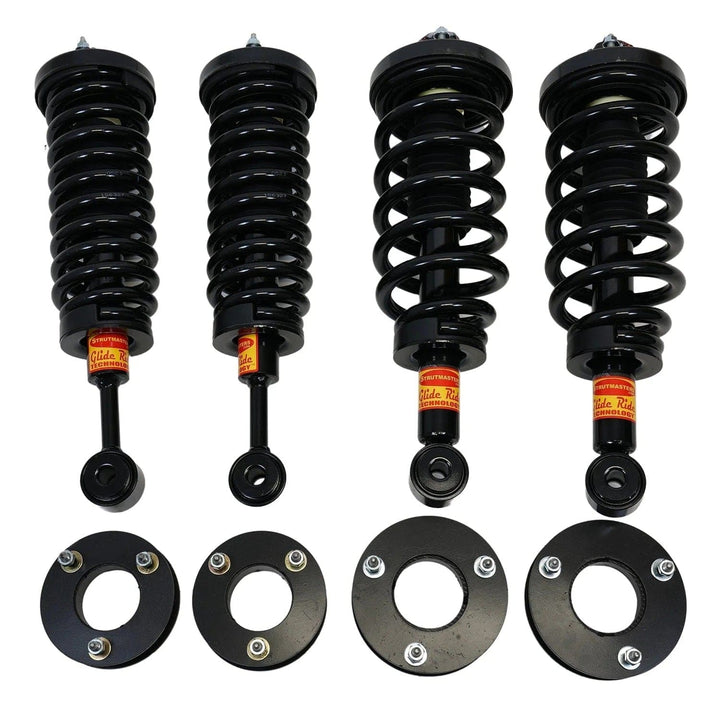

2003-2006 Lincoln Navigator 4 Wheel Air Suspension Conversion And Lift Kit (FX24FL)
$769.00
Convert Your Air Suspension To A Coil Spring Suspension. End Your Air Suspension Problems Forever... 2003-2006 Lincoln Navigator 2WD And 4WD Air Strut To Coil Over Strut Conversion With Lift Kit is the perfect solution to your air suspension problems.… read more
FAQs
How much does Lincoln Navigator air suspension repair cost?
Lincoln Navigator air suspension repair typically runs $4,000–$8,000+ at a dealer for a full system overhaul, with individual air spring replacements costing $816–$1,217 per corner. Independent shops are somewhat cheaper, but the bigger issue is how these repairs tend to compound — most shops replace one failed spring, then the compressor goes, then another spring fails. What looks like a $900 fix often turns into $4,000–$6,000 spent piecemeal over 18 months. Budget $150–$300 for the diagnostic fee before any repair estimate even begins.
Is a Lincoln Navigator air suspension conversion worth it?
For most Navigator owners — especially those with over 80,000 miles or a history of air suspension repairs — yes, decisively. A Strutmasters coil spring conversion kit runs $900–$1,700 all-in (parts plus installation at an independent shop), compared to $4,000–$8,000+ to restore the OEM air system. More importantly, it eliminates the failure mode entirely: coil springs don't develop micro-cracks, don't force the compressor to run overtime, and don't cascade-fail the way rubber air springs do. If you've already repaired the air suspension once and it's failing again, you're not dealing with a fluke — you're dealing with the system's design. The conversion changes that math permanently.
Can I install a Strutmasters kit myself?
Yes, if you're mechanically experienced. The install difficulty is roughly comparable to a brake job — it's a suspension swap, not a complex electronics job. Strutmasters kits are vehicle-specific, so fitment is engineered for your exact year and configuration. If you're comfortable with suspension work and have the right tools, DIY installation is a realistic option. If not, any competent independent shop can complete the job in a few hours. Either way, the total cost stays well below what a dealer charges just for parts on an OEM air suspension repair.
Does converting from air to coil affect ride quality?
The ride remains comfortable — most owners notice little to no meaningful difference in daily driving. What you give up is active ride height adjustment: the Navigator will sit at a fixed, factory-correct height rather than automatically leveling. For owners using the truck as a daily driver on regular roads, this isn't a practical concern. If you rely heavily on the factory load-leveling for frequent heavy towing or significant payload variation, that's worth factoring in. For the vast majority of Navigator owners dealing with a failing air suspension, the fixed ride height is not a real-world tradeoff.
Will a conversion kit clear the air suspension warning light?
Yes — Strutmasters kits include an electronic bypass module specifically designed to address this. The Navigator's onboard computer expects to detect the factory air suspension system operating normally. Without a bypass, converting to coil springs leaves warning lights on and can affect related electronic functions. The bypass module signals the vehicle's computer that the system is functioning correctly, so you get a clean dash and no error codes. This is built into the kit, not an optional add-on — it's part of what separates a purpose-engineered conversion kit from simply swapping in aftermarket air springs and hoping for the best.
