1997-2002 Ford Expedition 2WD Rear Air Suspension Conversion Kit With 2 Rear Shocks (FY1RB)
1997-2002 Ford Expedition 2WD Rear Air Suspension Conversion Kit With 2 Rear Shocks (FY1RB)
1997-2002 Ford Expedition 2WD Rear Air Suspension Conversion Kit With 2 Rear Shocks (FY1RB)
1997-2002 Ford Expedition 2WD Rear Air Suspension Conversion Kit With 2 Rear Shocks (FY1RB)

1997-2002 Ford Expedition 2WD Rear Air Suspension Conversion Kit With 2 Rear Shocks (FY1RB)

The 1997-2002 Ford Expedition Rear Air Suspension Conversion Kit With 2 Rear Shocks 2WD FY1RB is the perfect solution to your air suspension problems. Designed to be very affordable, you can convert your air suspension to use passive shocks and coil springs for less than the price of replacing one original equipment air spring.
$309.00 In Stock Sold out
Need assistance buying the right part? Speak to an expert now.

Call Us (866) 597-2397

Monday - Friday: 8 AM - 9 PM
Saturday: 9 AM - 6 PM

This product is vehicle specific.
Select a vehicle to ensure fitment.



2002 2001 2000 1999 1998 1997
  • Description
  • Why Strutmasters
  • OEM Numbers
  • Reviews

Convert Your Air Suspension To A Coil Spring Suspension. End Your Air Suspension Problems Forever...

1997-2002 Ford Expedition 2WD Air To Coil Spring Conversion Kit With Rear Shocks is the perfect solution to your air suspension problems. Designed to be very affordable, you can convert your air suspension to use standard shocks/struts and coil springs for less than the price of replacing one air strut.

Conversion Kit Features

  • Saves Money
  • All New Components
  • Rides Great
  • More Reliable Than Air Suspensions
  • No Modifications Required To Install
  • Easy To Install
  • Premium Springs

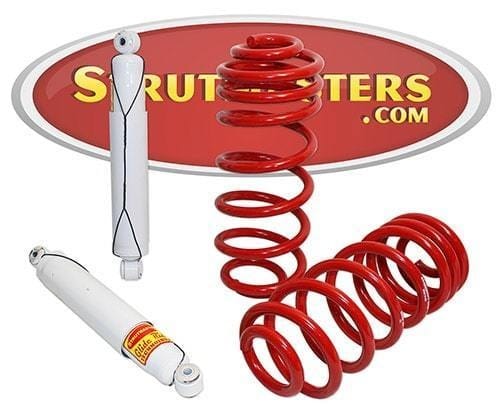

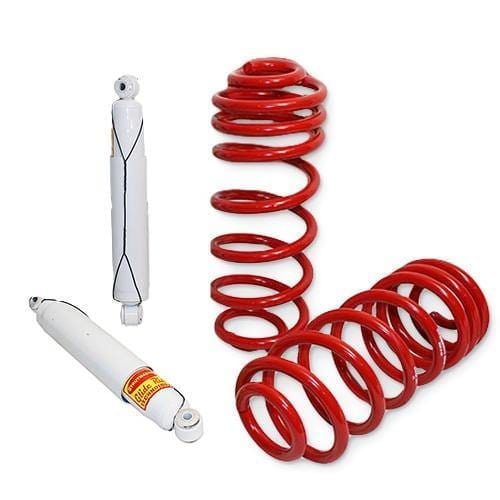

Air Suspension Conversion Kit Includes

  • 2 Rear Shocks
  • 2 Rear Springs
  • All Necessary Hardware
  • Detailed Instructions Including Light Fix Instructions

This Conversion Kit Fits

1997 Ford Expedition 2WD, 1998 Ford Expedition 2WD, 1999 Ford Expedition 2WD, 2000 Ford Expedition 2WD, 2001 Ford Expedition 2WD, 2002 Ford Expedition 2WD

Product Notes

  • None
  • For Best Results We Recommend The 4 Wheel Conversion

Replaced Components

The 1997-2002 Ford Expedition 2WD is built with the following suspension components:

1997-2002 Ford Expedition 2WD Air Springs (x2)- commonly referred to as air bags, a plastic and rubber bag that is fitted on top of the strut that uses pressurized air as a cushion instead of a metal coil spring to hold a vehicle off of the ground and off of its wheels. These are the number one cause of all air suspension leaks. All air springs all go bad at about the same rate. If one is leaking, the others will not be far behind. For a proper repair, all of them need to be replaced at the same time.

1997-2002 Ford Expedition 2WD Coil Springs (x2)- Coil springs hold the vehicle up but be careful, they are rated for and designed to work with the rest of the suspension system, so when you change air shocks to passive shocks, then you will need a different rated coil spring that works well with the new type of shocks.

1997-2002 Ford Expedition 2WD Rear Gas Shocks (x2)- a type of shock absorber; has metal tubing filled with gas-charged hydraulic fluid that is connected to the wheel of a vehicle in order to reduce the effects of vertical travel on a rough surface which controls the bounciness, and therefore comfort, of a vehicle.; the air spring assembled on top of the strut is commonly referred to as an air strut.

1997-2002 Ford Expedition 2WD Air Lines- tubes that run from a compressor (air suspension) to the air struts which carry pressurized air to the air bags components in order to adjust the height of the vehicle, respectively.

1997-2002 Ford Expedition 2WD Solenoids (x4)- This vehicle is equipped with 4 solenoids. These plastic components connect the electrical connection and lines of suspension components to the suspension control module. The solenoids are responsible for regulating the air pressure in each air spring or air shock. Solenoids are a small piece of the suspension system but they play a big role in how well it functions. If a solenoid is not working properly, it will cause the vehicle to be unlevel and, in turn, cause the compressor to burn out.

1997-2002 Ford Expedition 2WD Compressor- This vehicle is equipped with one air suspension compressor. The compressor is responsible for pumping up the air springs and shocks. When the air suspension starts leaking, the compressor is forced to run continuously to try and keep the air springs inflated. After a couple of days of running non-stop, the compressor will burn itself out. Replacing the compressor is a timely and expensive project to undertake.

1997-2002 Ford Expedition 2WD Dryer Assembly- This vehicle is equipped with a dryer assembly. The dryer assembly is responsible for getting moisture out of the air lines. Once the air suspension parts start to leak, moisture will build up throughout the air system. Moisture damages the air suspension components from the inside out. The dryer must be replaced whenever the compressor is replaced to prevent further damage.

1997-2002 Ford Expedition 2WD Suspension Control Module- This vehicle is equipped with a suspension control module. This module is the brain of the suspension system and it reads all of the signals that are being sent by the height sensors and determines if the vehicle needs to be raised or lowered.

1997-2002 Ford Expedition 2WD O-rings- Although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.

Suspension Failure Signs
Proper diagnosis of a failed or leaking air suspension system is key in order to avoid total failure of the 1997-2002 Ford Expedition. Look for these common signs that the air suspension system is going bad, before it’s too late. The most noticeable sign that the air suspension system is failing is a major difference in ride height from the front to the rear end of the Expedition. Typically, with this model, the rear suspension fails first causing that end to sag. The front end will likely remain inflated. This gives the illusion that the Expedition is “squatting” down in an unusual fashion. One obvious sign of suspension failure is an illuminated suspension warning light on the interior instrument cluster. The condition of the air compressor can indicate a suspension problem, as well. If it has stopped working or is running too long (longer than 15-20 seconds at a time), then a suspension repair or replacement is likely needed. Any visible cracks in the rear air springs (caused by dry rot) further prove the suspension has gone bad.

OEM Replacement Cost

+ Front Air Springs ($837/air spring)
+ Rear Shocks ($253/air shock)
+ Coil Spring ($189)
+ Compressor and Dryer Assembly ($720)
= TOTAL: Over $2,820 (and that doesnt even include replacing electronic components that are known to fail such as the height sensors).

The original air suspension system on the 97-02 Ford Expedition is made up of assorted parts that must always function in sync. If one part is not working, the system will need repair. Multiple trips to the Ford dealership gets expensive for the Expedition driver. As The Suspension Experts, we knew there had to be a more affordable alternative to direct replacement at the dealer. Without sacrificing quality, we created this air to non-air suspension conversion kit for the Ford Expedition. This kit, manufactured in America, includes two rear springs and two rear shocks. Our customers will attest that the kit saves them time, money, and frustration. With the guidance of detailed instructions and installation videos that are available to view, the kit can be installed with ease. Strutmasters provides excellent customer service- call or chat with our ASE certified technicians at any time. Carefully review the price difference between choosing an air vs. non-air suspension system. We compare three prices: that of repairing the failed air suspension system at the Ford dealer, that of installing aftermarket air suspension parts on the Expedition piece-by-piece, and that of installing a brand new Strutmasters rear suspension conversion kit. The money you will save with the Strutmasters kit is considerable.
3U2Z5580KA, F75Z5A891AA, 5U2Z18V125L
