i have not installed yet but will be taking it down to Los Cabos mexico to install on my navigator down there.
1997-2002 Lincoln Navigator 4WD 4-Wheel Suspension Conversion Kit Rear Shocks Kit (FX14F)
Loading...
Air & Magnetic Suspension Conversion Kits | SKU:
FX14F
1997-2002 Lincoln Navigator 4WD 4-Wheel Suspension Conversion Kit Rear Shocks Kit (FX14F)
$489.00
Unit price
/
Unavailable
1997-2002 Lincoln Navigator 4WD 4-Wheel Suspension Conversion Kit Rear Shocks Kit (FX14F) is backordered and will ship as soon as it is back in stock.
-
Same day ground shipping on orders placed before 3pm
-
1 year warranty on Strutmaster shocks, struts and springs
-
Hassle-free returns within 30 days
- Easy installation in 8 simple steps, manual and videos included
- Great ride quality through reliable coil springs with our patented Glide Ride Technology
- Complete kit to replace your old suspension with perfect fit
Need assistance? Speak to an expert now!
Monday - Friday: 8am - 9pm
Saturday: 9am - 6pm
Super easy install. No issues at all. Strutmasters has a great product with easy to follow instructions, I'm not a certified mechanic but had no problem completing the job myself.
Description
Description
Included
Included

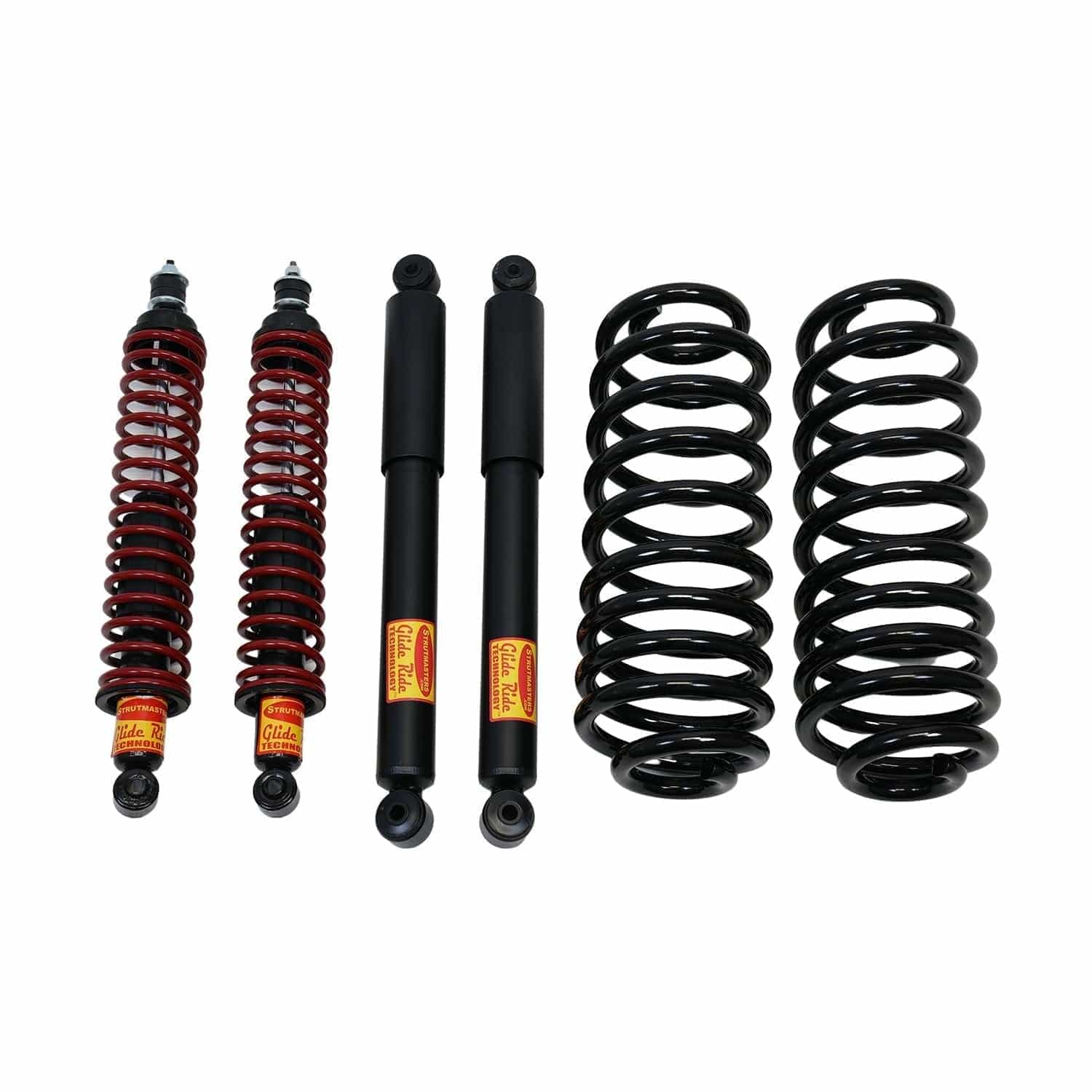

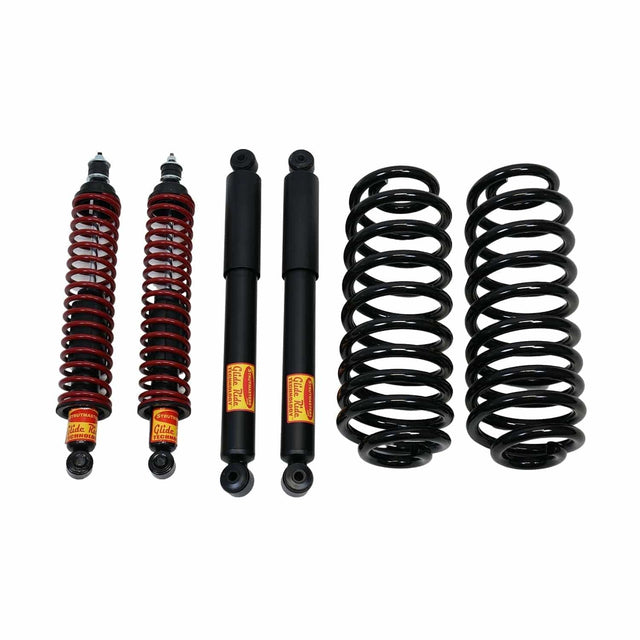

Air Suspension Conversion Kit Includes
- 2 Front Coil Over Shocks
- 2 Rear Shocks
- 2 Rear Springs
- All Necessary Hardware
- Detailed Instructions Including Light Fix Instructions
OEM Numbers
OEM Numbers
AU2Z18V124AZ, F75Z5A891BE, 3U2Z5580LA, 5U2Z18V125VN
Why Choose Strutmasters
Why Choose Strutmasters
There is a wide array of parts that make up the air suspension system on your 1997-2002 Lincoln Navigator. Bringing it to the dealership each time one of these parts needs a repair gets very expensive and time consuming. When one part stops working properly, the entire system is out of sync. This kit includes two front coilover shocks, two rear springs, and two rear shocks. The kit eliminates the dependence on the faulty air parts for good. DIYers love our kits because they save lots of time, frustration and money. Each kit comes complete with installation instructions that are easy to follow. Each kit can be installed in about one hour per wheel. Scroll up on this page to review the cost difference between choosing an air vs non-air suspension system. We outline three different prices: that of repairing your air suspension system with Original Equipment parts at the dealership; that of installing aftermarket air suspension replacement parts on the Navigator piece-by-piece; and that of eliminating the faulty air suspension forever by installing a Strutmasters passive suspension system today. Read our positive customer reviews to get first-hand feedback about our kit quality and convenience.
Notes
Notes
Product Notes
- None
Replaced Components
The 1997-2002 Lincoln Navigator 4WD is built with the following suspension components: 1997-2002 Lincoln Navigator 4WD Air Springs (x2)- commonly referred to as air bags, a plastic and rubber bag that uses pressurized air as a cushion (replacing a coil spring) to support the weight of the rear of the vehicle. These rubber air springs are the number one cause of all air suspension leaks. Since air springs go bad at about the same rate, if one is leaking, the others will not be far behind. For a proper repair, all of them need to be replaced at the same time. 1997-2002 Lincoln Navigator 4WD Front Air Shocks (x2)- Air shocks help dampen vibration and bounciness in the front of the vehicle. When the front air shocks, the vehicle's front ride height will NOT drop (torsion bars support the weight). A rough ride quality in the front end is the best sign they have failed. 1997-2002 Lincoln Navigator 4WD Rear Gas Shocks (x2)- a type of shock absorber; has metal tubing filled with gas-charged hydraulic fluid that dampens vibration and bounciness caused by driving on rough road surfaces. 1997-2002 Lincoln Navigator 4WD Air Lines- tubes that carry pressurized air from a compressor to the air springs and air shocks in order to adjust the height of the vehicle. 1997-2002 Lincoln Navigator 4WD Solenoids (x4)- This vehicle is equipped with 4 solenoids. These plastic components work along with the suspension control module. The solenoids are responsible for regulating the air pressure in each air spring or air shock. Solenoids are a small piece of the suspension system but they play a big role in how well it functions. If a solenoid is not working properly, it will cause uneven ride height and, in turn, cause the compressor to burn out. 1997-2002 Lincoln Navigator 4WD Compressor- This vehicle is equipped with an onboard air compressor. The compressor is responsible for making enough air to pump up the air springs and shocks. When the air suspension starts leaking, the compressor is forced to run continuously to try and keep the air springs and shocks inflated. After a couple of days of running non-stop, the compressor will burn itself out. Replacing the compressor is a timely and expensive project to undertake. 1997-2002 Lincoln Navigator 4WD Dryer Assembly- This vehicle is equipped with a dryer assembly. The dryer assembly is responsible for getting moisture out of the air lines. Once the air suspension parts start to leak, moisture will build up throughout the air system. Moisture damages the air suspension components from the inside out. The dryer must be replaced whenever the compressor is replaced to prevent further damage. 1997-2002 Lincoln Navigator 4WD Suspension Control Module- This vehicle is equipped with a suspension control module. This module is the brain of the suspension system and it reads all of the signals that are being sent by the height sensors and determines if the vehicle needs to be raised or lowered. 1997-2002 Lincoln Navigator 4WD O-rings- Although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.
Suspension Failure Signs
Look for common signs of a failed or leaking air suspension system on your Lincoln Navigator before it is too late and total failure sets in. The most distinctive sign the air suspension has failed is a sudden loss of three to five inches of ride height in the rear of the vehicle. You may experience differences in ride height from one side to the other of the vehicle. You may have visible cracks in the rear air springs caused by dry rot and normal wear and tear. An illuminated suspension warning light on the instrument panel, and an air compressor that is working too long at a time (longer than 15-20 seconds maximum), as these are all red flag signs your suspension needs repair.
What is a conversion kit
Who is Strutmasters
Description
Description
The 1997-2002 Lincoln Navigator 4WD 4 Wheel Suspension Conversion Kit Rear Shocks Kit FX14F is the perfect solution to your air suspension problems. Designed to be very affordable, you can convert your air suspension to use passive shocks and coil springs for less than the price of replacing one original equipment air spring.
Included
Included
Air Suspension Conversion Kit Includes
- 2 Front Coil Over Shocks
- 2 Rear Shocks
- 2 Rear Springs
- All Necessary Hardware
- Detailed Instructions Including Light Fix Instructions
OEM Numbers
OEM Numbers
AU2Z18V124AZ, F75Z5A891BE, 3U2Z5580LA, 5U2Z18V125VN
Why Choose Strutmasters
Why Choose Strutmasters
There is a wide array of parts that make up the air suspension system on your 1997-2002 Lincoln Navigator. Bringing it to the dealership each time one of these parts needs a repair gets very expensive and time consuming. When one part stops working properly, the entire system is out of sync. This kit includes two front coilover shocks, two rear springs, and two rear shocks. The kit eliminates the dependence on the faulty air parts for good. DIYers love our kits because they save lots of time, frustration and money. Each kit comes complete with installation instructions that are easy to follow. Each kit can be installed in about one hour per wheel. Scroll up on this page to review the cost difference between choosing an air vs non-air suspension system. We outline three different prices: that of repairing your air suspension system with Original Equipment parts at the dealership; that of installing aftermarket air suspension replacement parts on the Navigator piece-by-piece; and that of eliminating the faulty air suspension forever by installing a Strutmasters passive suspension system today. Read our positive customer reviews to get first-hand feedback about our kit quality and convenience.
Notes
Notes
Product Notes
- None
Replaced Components
The 1997-2002 Lincoln Navigator 4WD is built with the following suspension components: 1997-2002 Lincoln Navigator 4WD Air Springs (x2)- commonly referred to as air bags, a plastic and rubber bag that uses pressurized air as a cushion (replacing a coil spring) to support the weight of the rear of the vehicle. These rubber air springs are the number one cause of all air suspension leaks. Since air springs go bad at about the same rate, if one is leaking, the others will not be far behind. For a proper repair, all of them need to be replaced at the same time. 1997-2002 Lincoln Navigator 4WD Front Air Shocks (x2)- Air shocks help dampen vibration and bounciness in the front of the vehicle. When the front air shocks, the vehicle's front ride height will NOT drop (torsion bars support the weight). A rough ride quality in the front end is the best sign they have failed. 1997-2002 Lincoln Navigator 4WD Rear Gas Shocks (x2)- a type of shock absorber; has metal tubing filled with gas-charged hydraulic fluid that dampens vibration and bounciness caused by driving on rough road surfaces. 1997-2002 Lincoln Navigator 4WD Air Lines- tubes that carry pressurized air from a compressor to the air springs and air shocks in order to adjust the height of the vehicle. 1997-2002 Lincoln Navigator 4WD Solenoids (x4)- This vehicle is equipped with 4 solenoids. These plastic components work along with the suspension control module. The solenoids are responsible for regulating the air pressure in each air spring or air shock. Solenoids are a small piece of the suspension system but they play a big role in how well it functions. If a solenoid is not working properly, it will cause uneven ride height and, in turn, cause the compressor to burn out. 1997-2002 Lincoln Navigator 4WD Compressor- This vehicle is equipped with an onboard air compressor. The compressor is responsible for making enough air to pump up the air springs and shocks. When the air suspension starts leaking, the compressor is forced to run continuously to try and keep the air springs and shocks inflated. After a couple of days of running non-stop, the compressor will burn itself out. Replacing the compressor is a timely and expensive project to undertake. 1997-2002 Lincoln Navigator 4WD Dryer Assembly- This vehicle is equipped with a dryer assembly. The dryer assembly is responsible for getting moisture out of the air lines. Once the air suspension parts start to leak, moisture will build up throughout the air system. Moisture damages the air suspension components from the inside out. The dryer must be replaced whenever the compressor is replaced to prevent further damage. 1997-2002 Lincoln Navigator 4WD Suspension Control Module- This vehicle is equipped with a suspension control module. This module is the brain of the suspension system and it reads all of the signals that are being sent by the height sensors and determines if the vehicle needs to be raised or lowered. 1997-2002 Lincoln Navigator 4WD O-rings- Although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.
Suspension Failure Signs
Look for common signs of a failed or leaking air suspension system on your Lincoln Navigator before it is too late and total failure sets in. The most distinctive sign the air suspension has failed is a sudden loss of three to five inches of ride height in the rear of the vehicle. You may experience differences in ride height from one side to the other of the vehicle. You may have visible cracks in the rear air springs caused by dry rot and normal wear and tear. An illuminated suspension warning light on the instrument panel, and an air compressor that is working too long at a time (longer than 15-20 seconds maximum), as these are all red flag signs your suspension needs repair.
