Convert Your Air Suspension To A Coil Spring Suspension. End Your Air Suspension Problems Forever...Strutmasters 2000-2005 Cadillac Deville Deluxe 4 Wheel Air Suspension Conversion Kit is the perfect solution to your air suspension problems. Designed to be very affordable, you can convert your air suspension to use standard shocks/struts and coil springs for less than the price of replacing one air strut.
Conversion Kit Features
- Saves Money
- All New Components
- Improved Ride
- More Reliable Than Air Suspensions
- No Modifications Required To Install
- Easy To Install
- Premium Springs

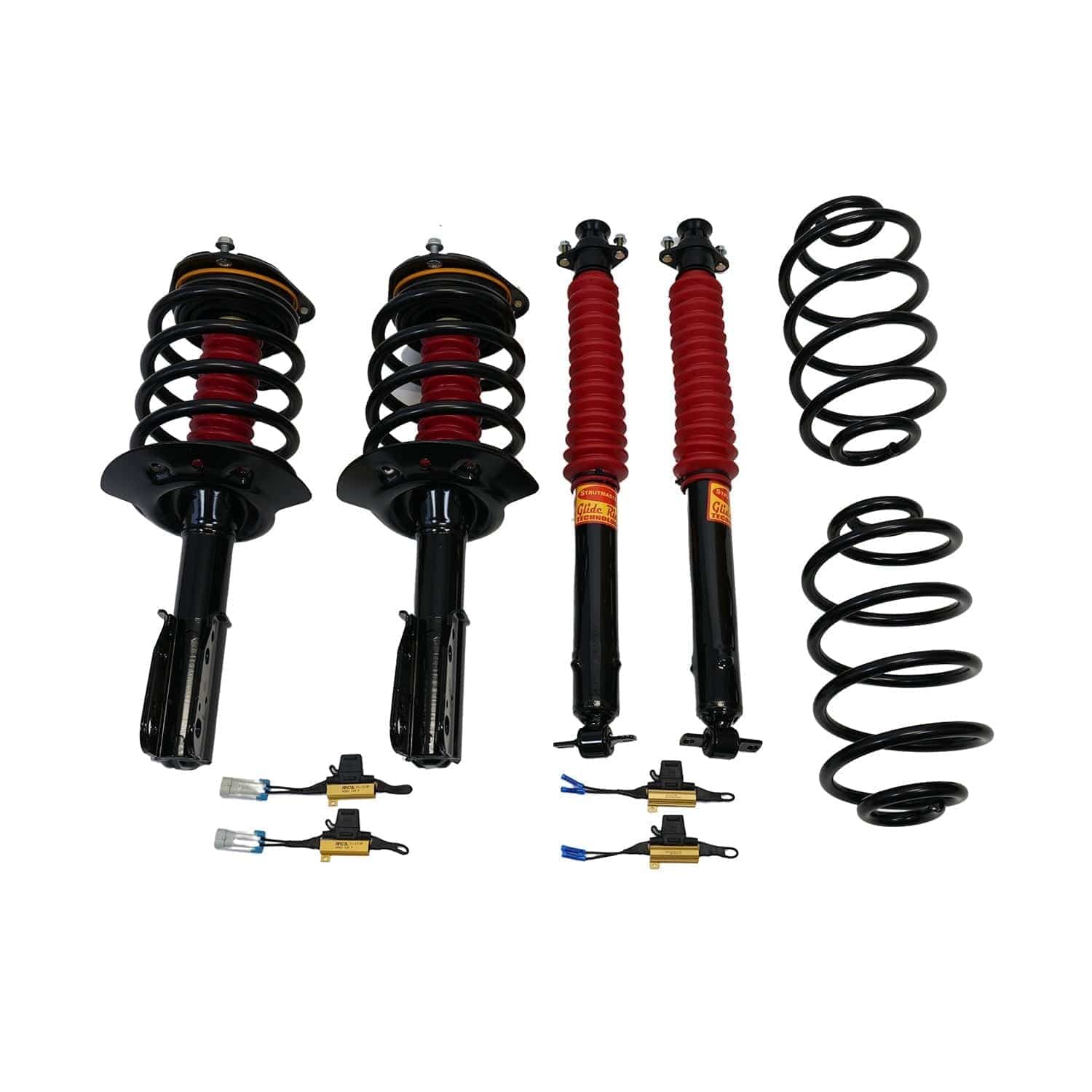

Air Suspension Conversion Kit Includes

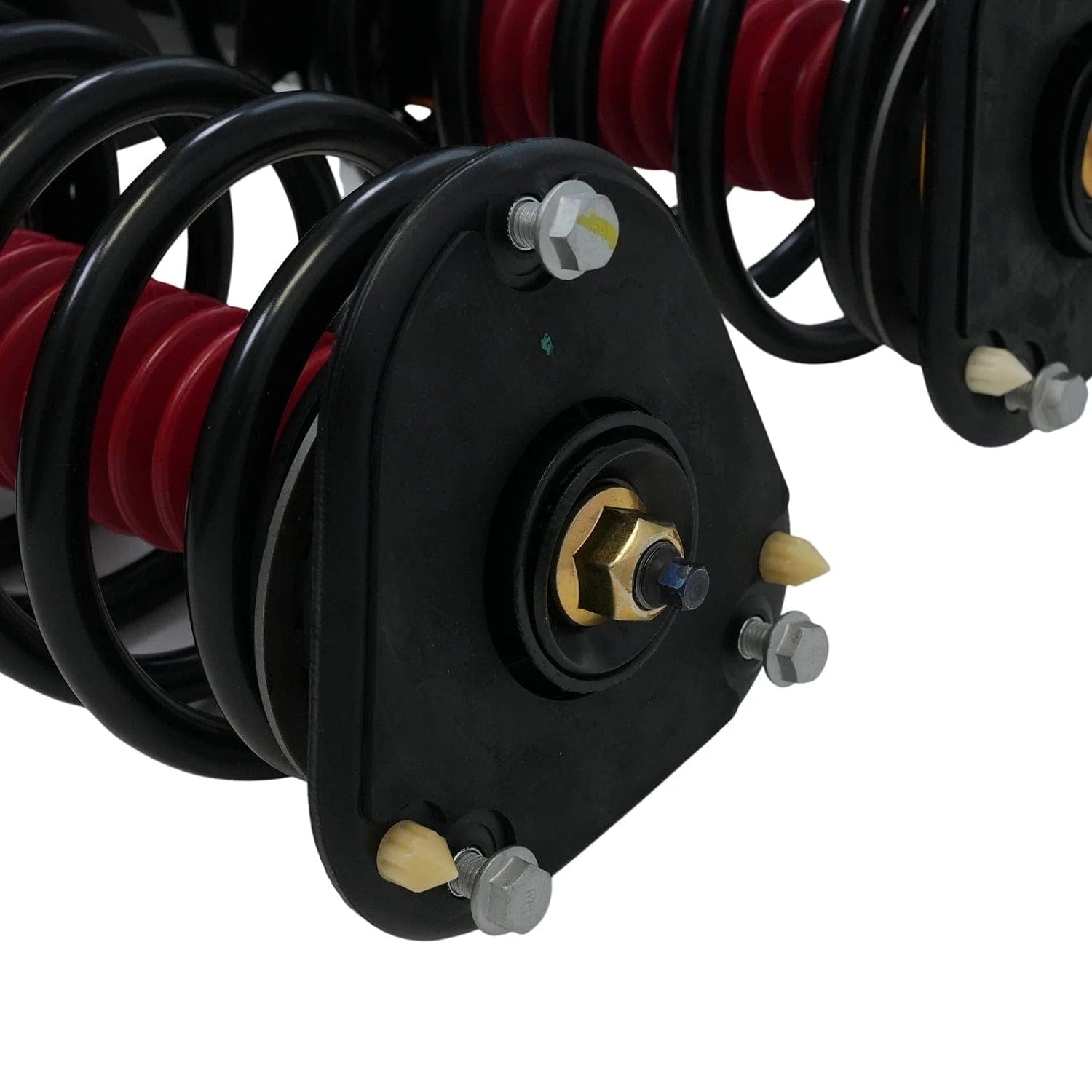

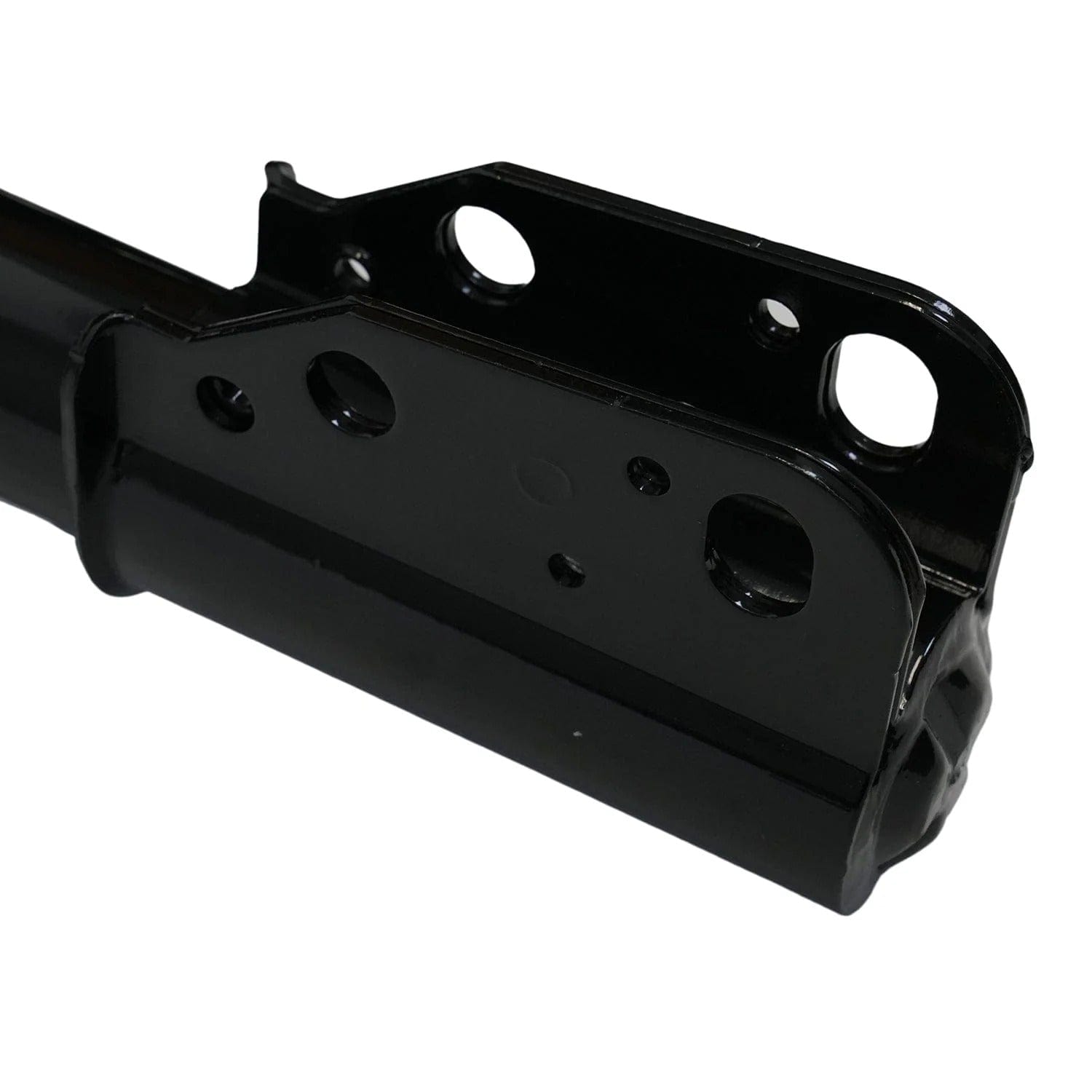

- 2 Complete Front Strut Assemblies, With New Mounts And Springs
- All Necessary Hardware
- 2 Rear Coil Springs

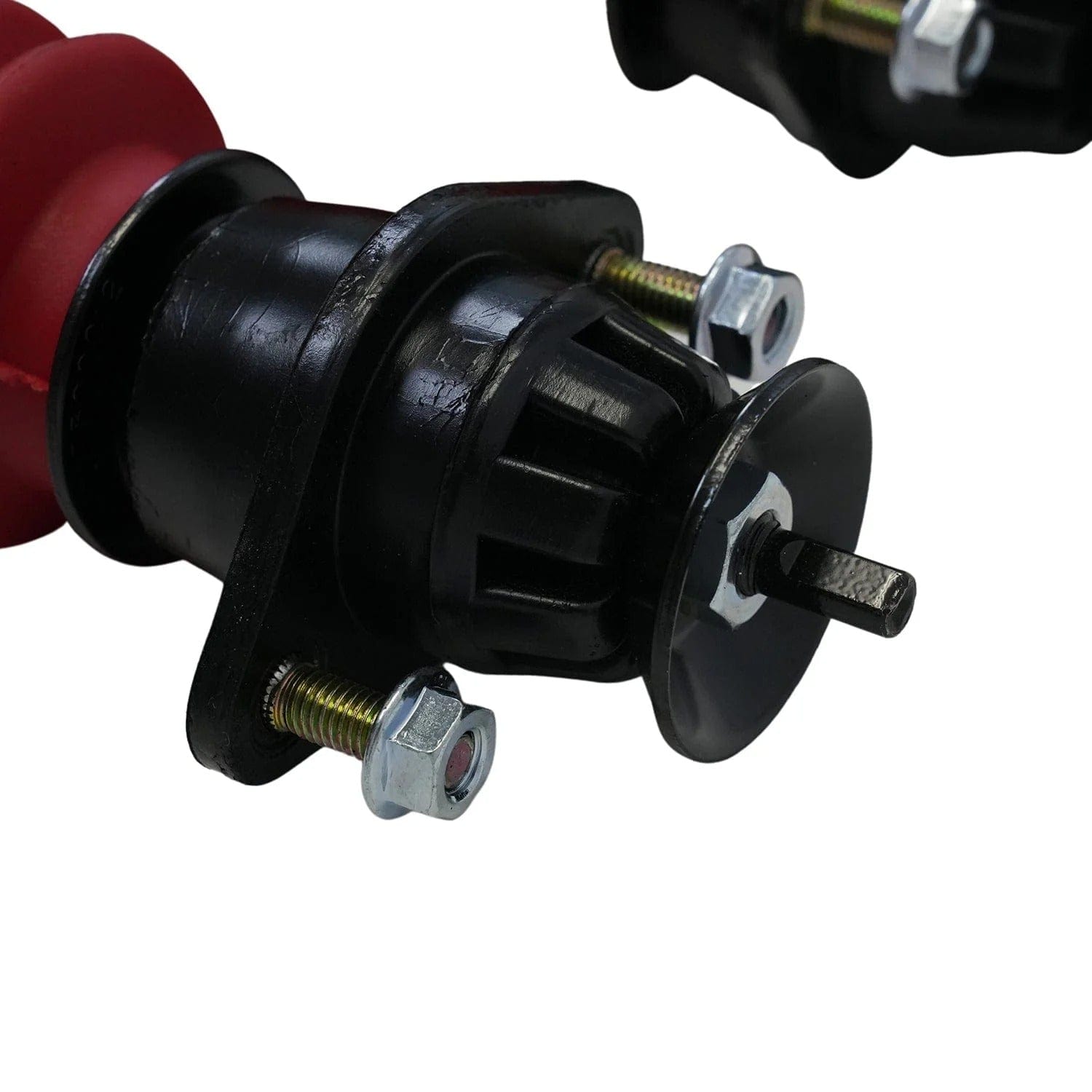

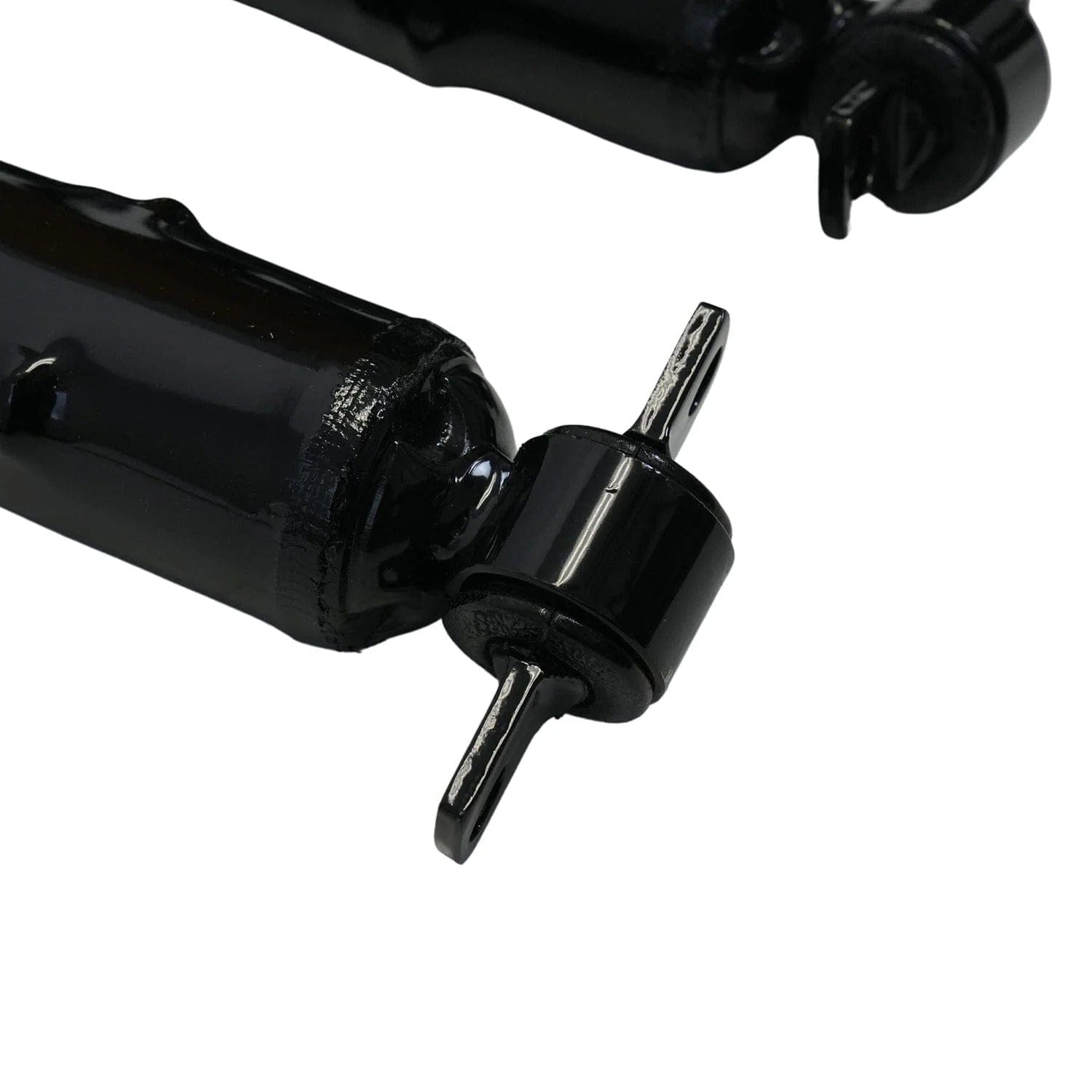

- 2 Rear Premium Shock Absorbers

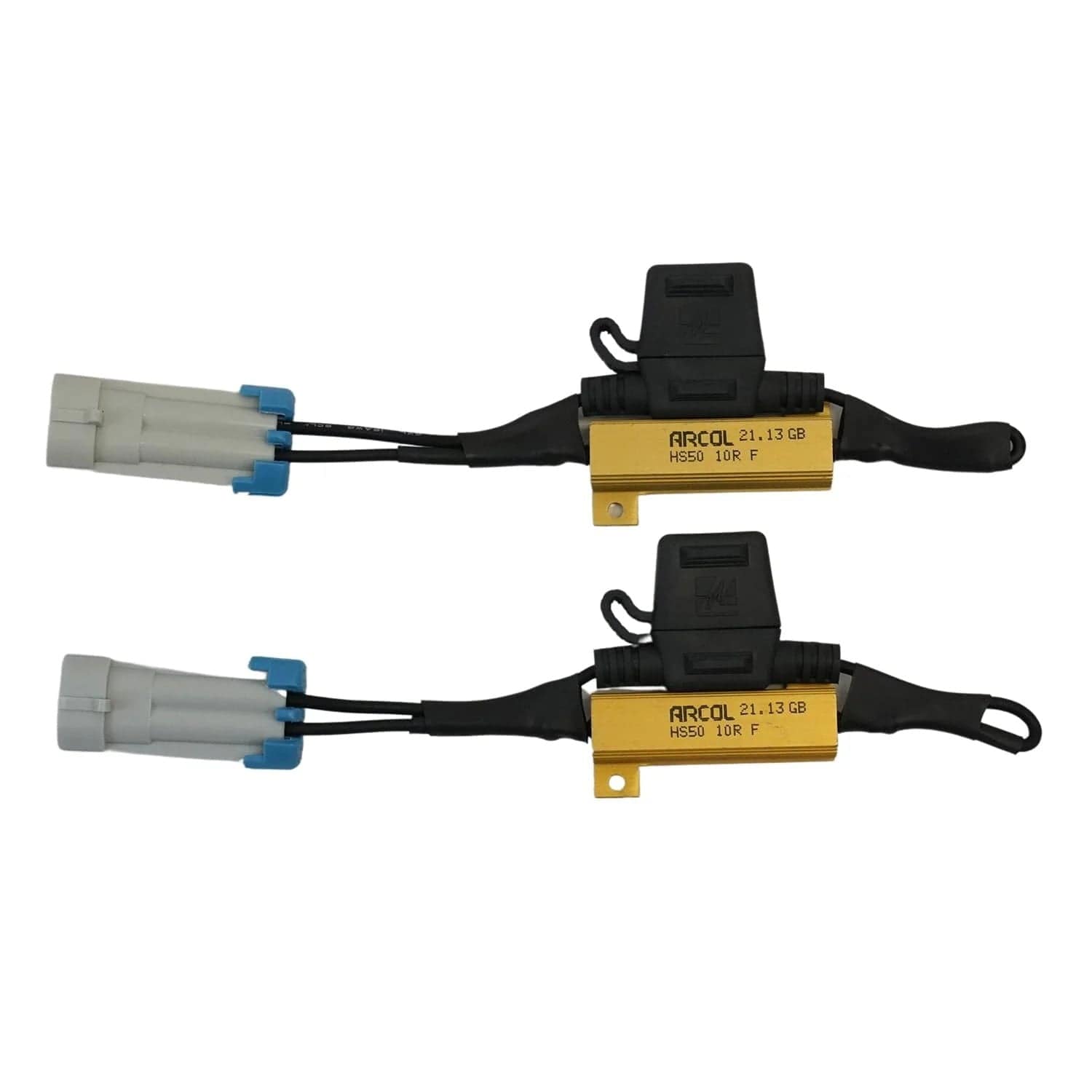

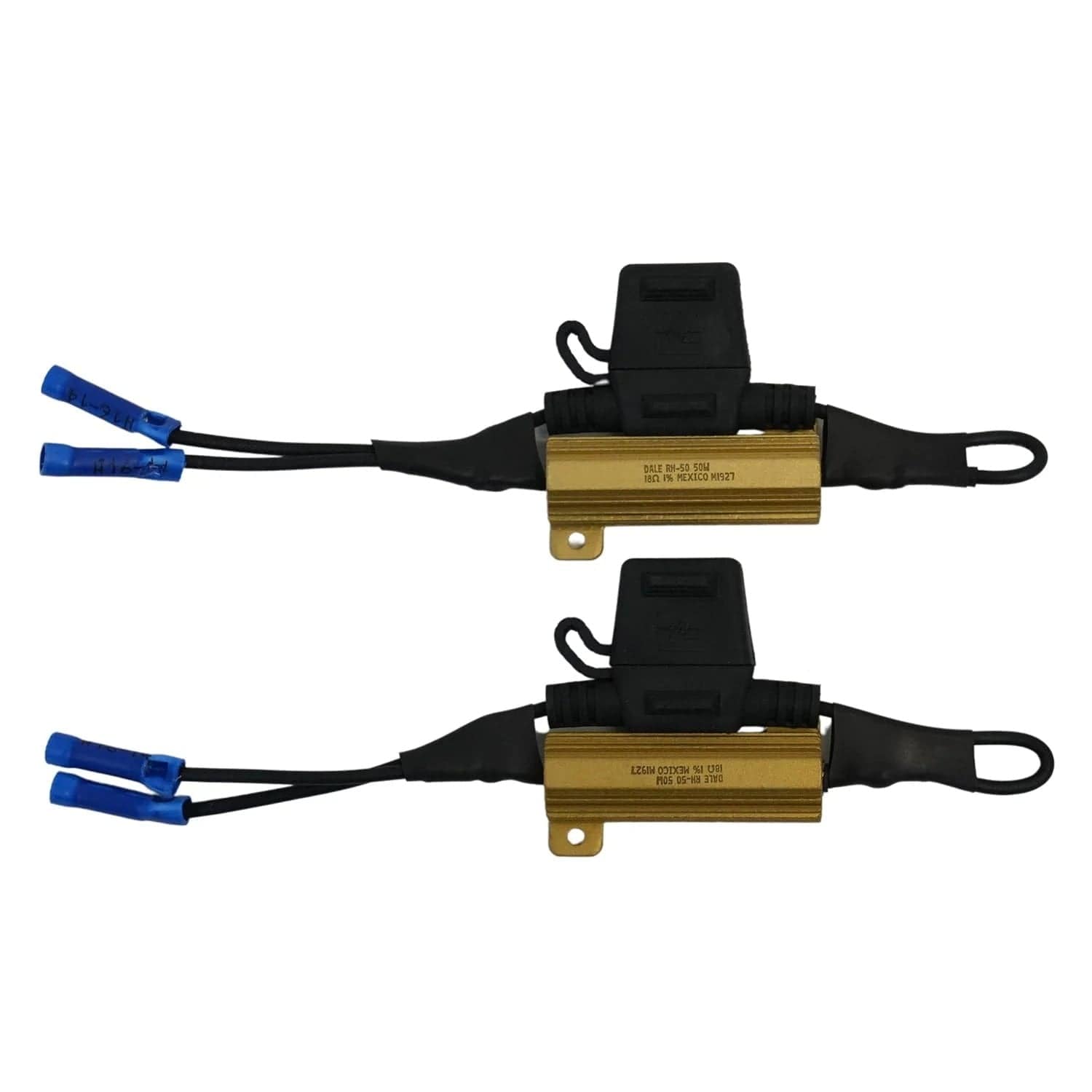

- Electronic bypass to Remove Check Suspension Light
- Detailed Instructions
This Conversion Kit Fits2000 Cadillac Deville, 2001 Cadillac Deville, 2002 Cadillac Deville, 2003 Cadillac Deville, 2004 Cadillac Deville, 2005 Cadillac Deville
- Fits 4.6L Northstar Models Only!
- If the suspension warning light is currently on, call 866-597-2397 for more information prior to installation.
- Does not fit Limousines or Hearses
The 2000-2005 Cadillac Deville is built with the following suspension components:
2000-2005 Cadillac Deville Electronic Struts (x2)- a type of shock absorber; has metal tubing filled with gas-charged hydraulic fluid that is connected to the wheel of a vehicle in order to reduce the effects of vertical travel on a rough surface which controls the bounciness, and therefore comfort, of a vehicle. The Cadillac Devilles struts, while having coil-springs, use an electronic signal to stiffen or soften the dampening of the strut.
2000-2005 Cadillac Deville Coil Springs (x2)- Coil springs hold the vehicle up but be careful, they are rated for and designed to work with the rest of the suspension system, so when you change air shocks to passive shocks, then you will need a different rated coil spring that works well with the new type of shocks.
2000-2005 Cadillac Deville Shock Absorbers (x2)- a metal tubing filled with gas-charged hydraulic fluid that is connected to the wheel of a vehicle in order to reduce the effects of vertical travel on a rough surface which controls the bounciness, and therefore comfort, of a vehicle.Shock Absorber.
2000-2005 Cadillac Deville Height Sensors (x4)- a linkage located near each wheel of a vehicle with any electronic suspension that, either mechanically or electronically, constantly measures the height of the vehicle, and reports this information back to the control module so that the computer can identify if changes in height need to be adjusted accordingly. The ride height sensor is a moving part, and like all moving parts, they will eventually wear out.
2000-2005 Cadillac Deville Air Lines- tubes that run from a compressor (air suspension) to the air struts which carry pressurized air to the air bags components in order to adjust the height of the vehicle, respectively.
2000-2005 Cadillac Deville Solenoids (x4)- usually L-shaped, these plastic components connect the electrical connection and lines of suspension components to the suspension control module on vehicles with active suspension. The solenoid regulates the air pressure for each air spring. Solenoids start to leak as they wear out causing the vehicle to sag or to lean. This will cause the ride height sensor to send a signal to activate the compressor in an attempt to inflate the air suspension and level out the vehicle. This excessive work load will eventually lead to total failure of the compressor.
2000-2005 Cadillac Deville Compressor- creates/sends pressurized to active suspension components. When the air suspension starts leaking, the compressor/pump starts working harder to try to keep the system inflated. By the time air suspension leaks down completely, sitting the vehicle on its tires, the compressor will either have failed or be well on its way to full failure. Buying replacement struts and taking the time to install them only to find out the compressor still needs to be replaced can be very frustrating, time-consuming, and expensive.
2000-2005 Cadillac Deville Dryer Assembly- used to keep moisture out of air lines and air springs in order to prevent freezing and internal cracking of these parts. Once air suspension starts leaking, moisture will build-up throughout the air system. Moisture damages the air suspension from the inside. The dryer will need to be replaced in order to eliminate the moisture and prevent any further damage.
2000-2005 Cadillac Deville Suspension Control Module- a computer which is responsible for the operations of the air suspension system and maintaining the vehicles correct ride height.
2000-2005 Cadillac Deville O-rings- Although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.
Suspension Failure Signs
Early detection of a leaking air suspension system is critical to avoiding total failure. Look for a sudden uneven height variance between different sides of the 2000-2005 Cadillac Deville or an inability of the vehicle to maintain its correct ride height. One end may sag while the other end remains inflated. The vehicle may have a ‚Äö√Ñ√∫squatting down‚Äö√Ñ√π appearance. It may shift from one side to the other. These height imbalances will wear out the air compressor if they are not fixed promptly. If the air compressor has already stopped working or is running too often then suspension failure will advance. An illuminated suspension warning light on the dashboard points to late-stage suspension failure. An expensive repair is unavoidable.
OEM Replacement Cost
+ Shocks ($285/shock)
+ Struts ($234/strut)
+ Coil Spring ($189/coil spring)
+ Compressor & Dryer ($245)
= TOTAL: Over $1,600 (and that doesnt even include replacing electronic components that are known to fail such as the height sensors).
Strutmasters' air to non-air suspension conversion kit, manufactured in America, was designed to save Cadillac Deville owners time, frustration, and money when the original air suspension system goes bad. The kit comes complete with two pre-assembled front struts with premium springs, two premium rear springs, and two premium rear shock absorbers. The kit eliminates faulty air components for good. The quality parts are more reliable than the originals; Strutmasters guarantees it with a 1-year warranty. Detailed instructions and online installation videos guide customers along a smooth repair route. If further assistance is needed, Strutmasters' ASE certified experts can offer technical support over the phone. The low price of the kit is what seals the deal for most Cadillac Deville owners. The kit costs a fraction of the price of dealership direct replacement.
