The 2000-2006 Chevrolet Suburban 1500 4 Wheel Air Suspension Conversion Kit (GC14F) is the perfect solution to your air suspension problems. Designed to be very affordable, you can convert your air suspension to use passive shocks and coil springs for less than the price of replacing one original equipment air spring.
$579.00 In Stock Sold out
IN STOCK & SHIPS FAST!
Need assistance buying the right part? Speak to an expert now.
Monday - Friday: 8 AM - 9 PM
Monday - Friday: 8 AM - 9 PM
Saturday: 9 AM - 6 PM
This product is vehicle specific.
Select a vehicle to ensure fitment.
- Why Strutmasters
- OEM Numbers
Convert Your Air Suspension To A Passive Coil Spring Suspension. End Your Air Suspension Problems Forever...Strutmasters 2000-2006 Chevrolet Suburban 1500 4 Wheel Suspension Conversion Kit is the perfect solution to your active suspension problems. Designed to be very affordable, you can convert those expensive air shocks and electronic shocks to use our exclusive Premium Steel Coil Springs and Passive Shocks for less than the price of replacing just ONE Original Equipment part.
Conversion Kit Features
- Saves Money
- All New Components
- Improved Ride
- More Reliable Than Air Suspensions
- No Modifications, Easy To Install
- Premium Steel Springs

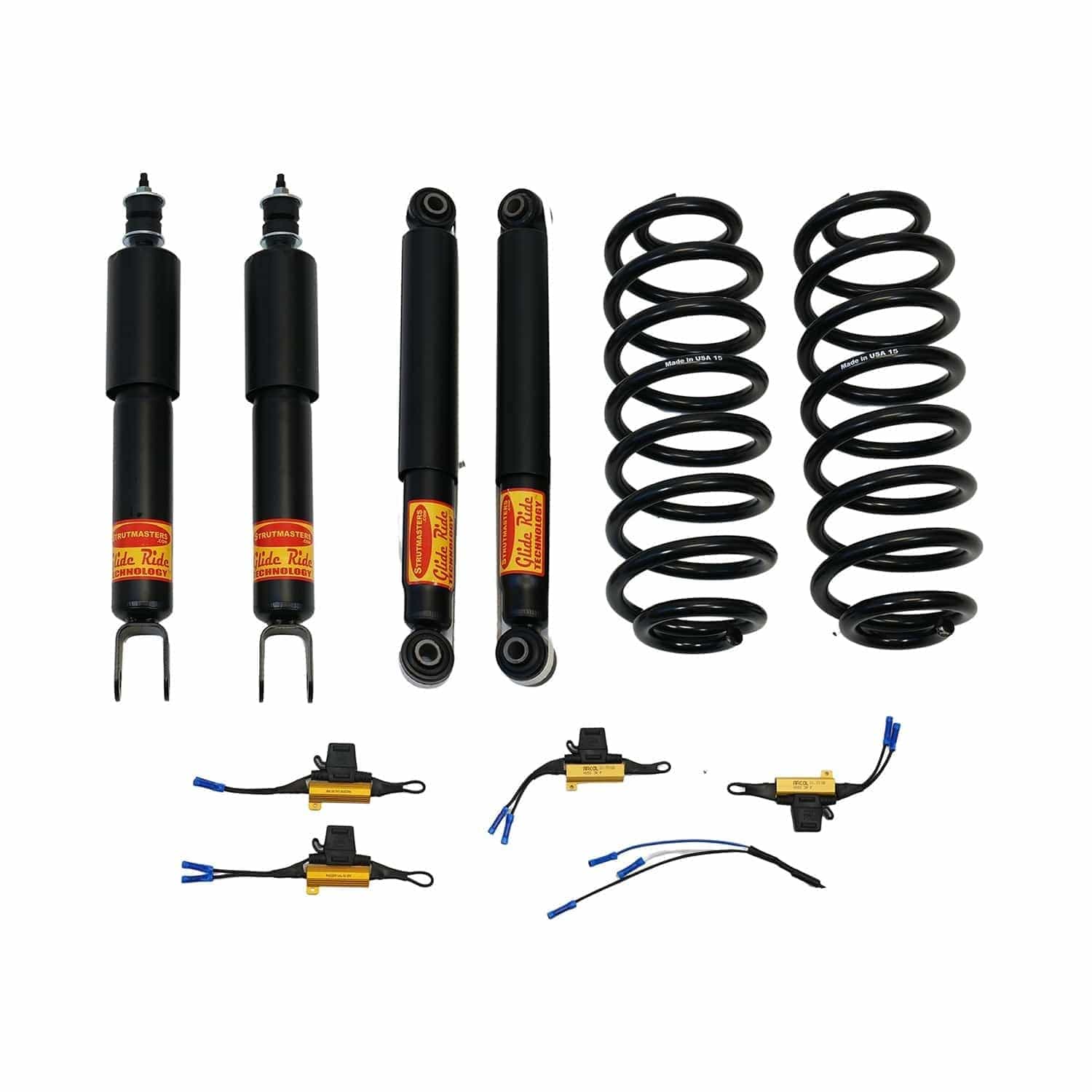

Air Suspension Conversion Kit Includes

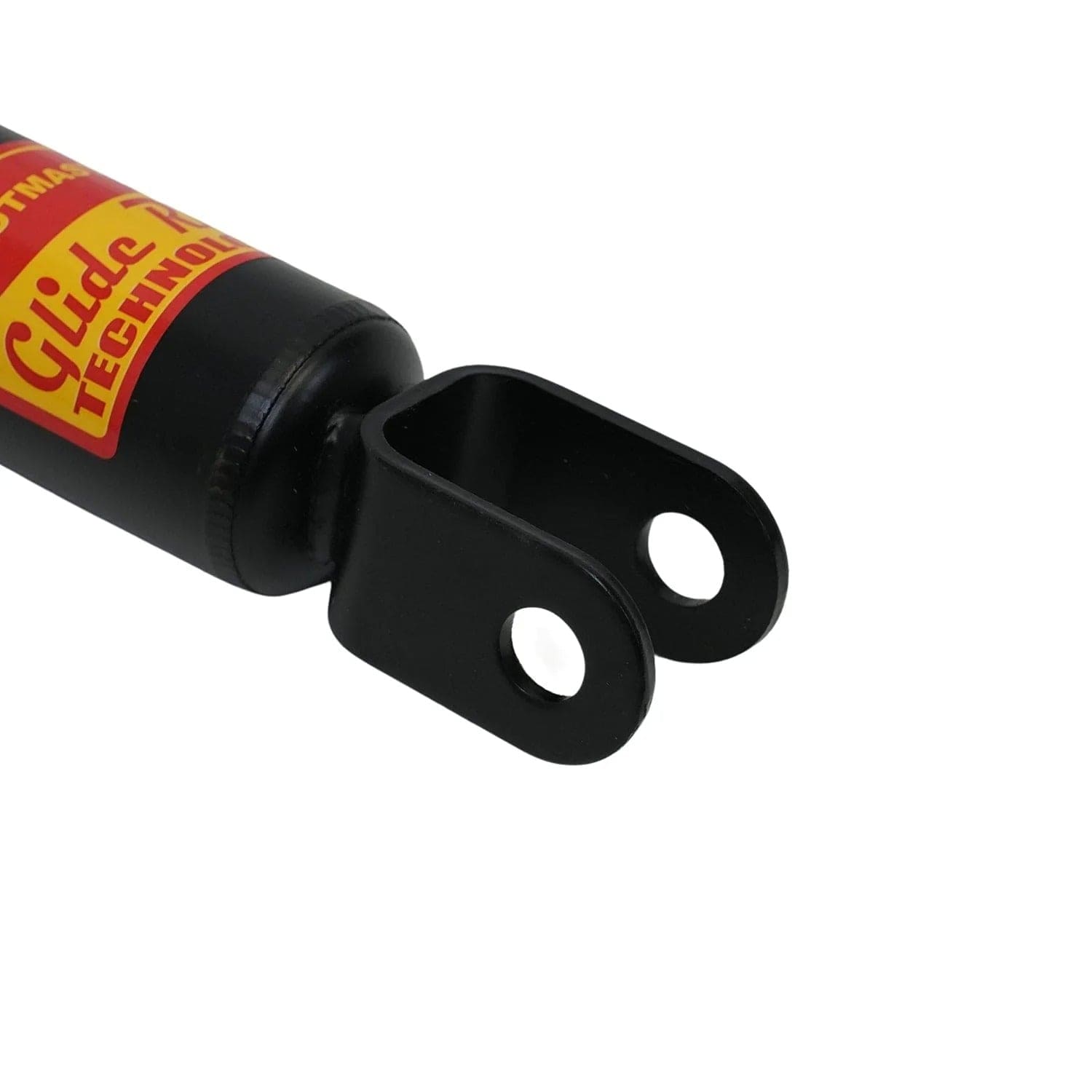

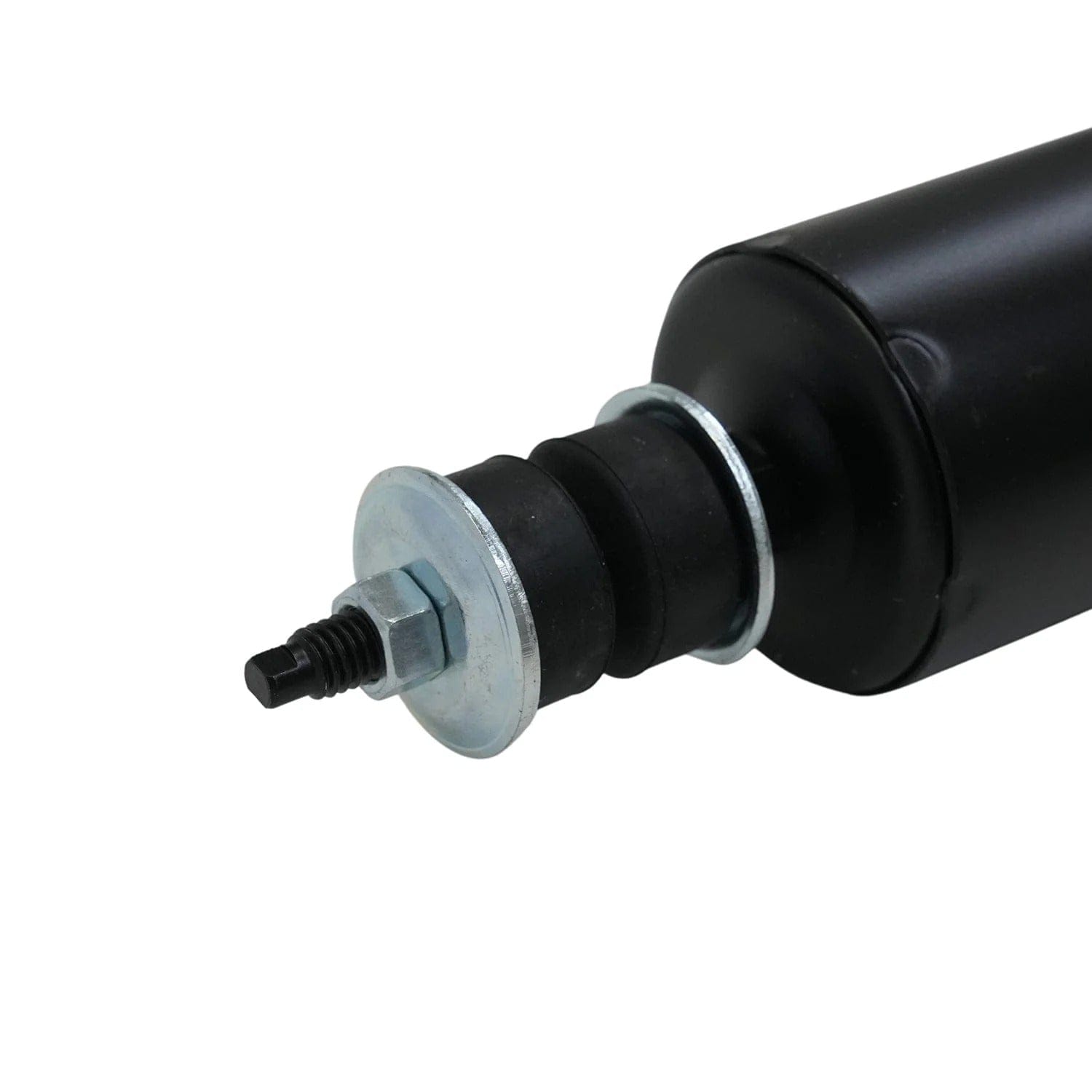

- 2 Passive Front Shocks
- 2 Rear Premium Steel Coil Springs

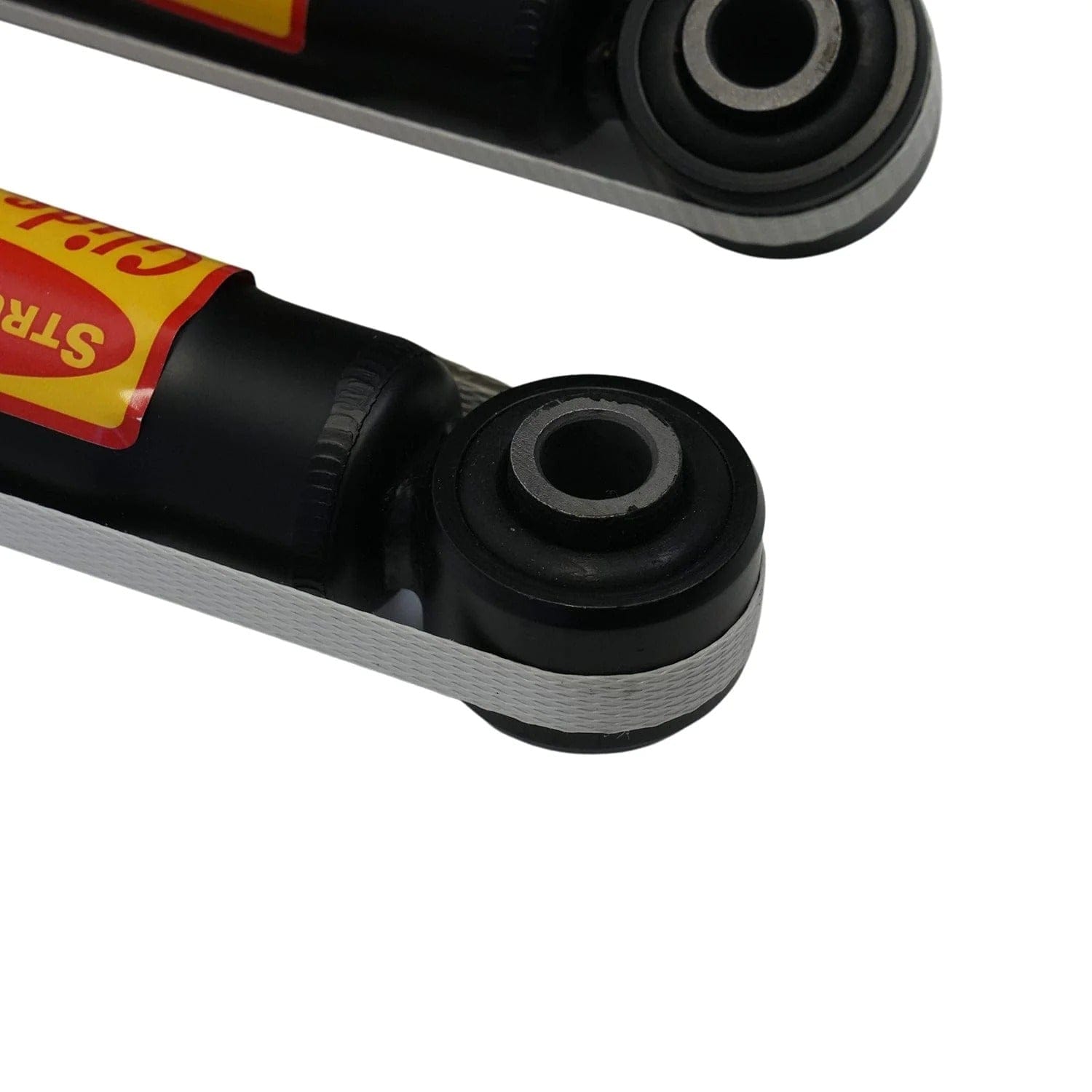

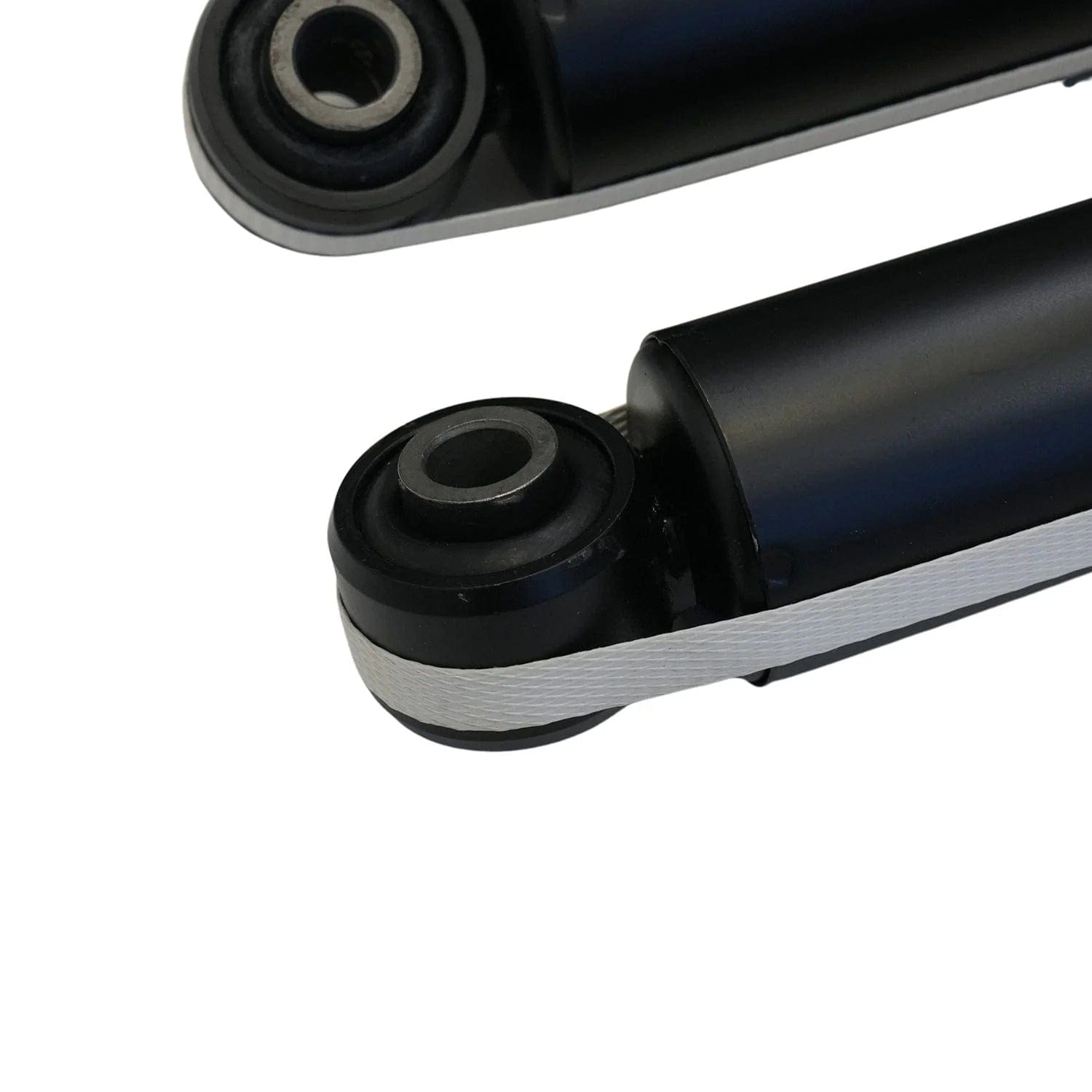

- 2 Passive, Premium Rear Shocks

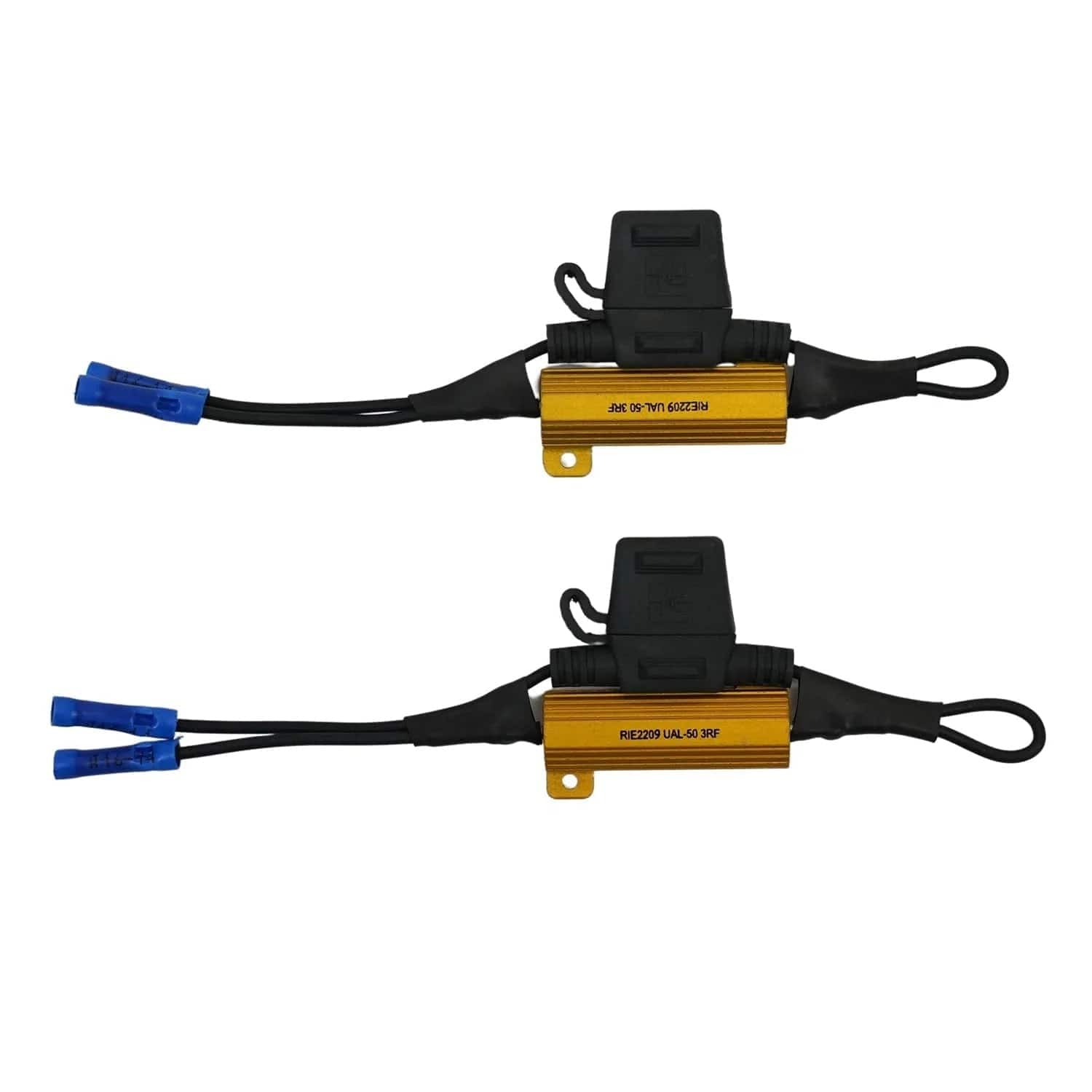

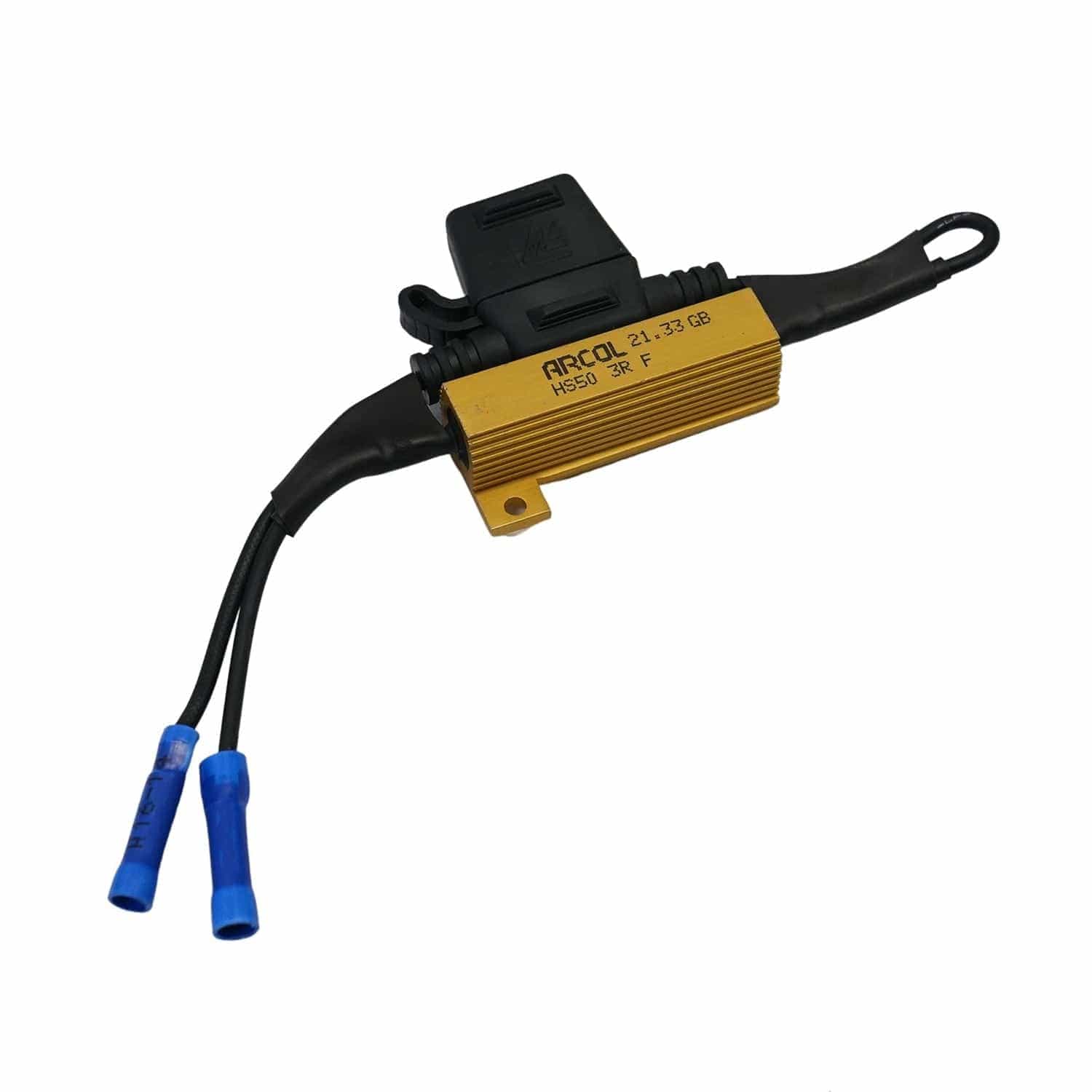

- Electronic Components To Eliminate the Suspension Warning Light
- All Necessary Hardware
- Detailed Instructions
This Conversion Kit Fits2000 Chevrolet Suburban 1500, 2001 Chevrolet Suburban 1500, 2002 Chevrolet Suburban 1500, 2003 Chevrolet Suburban 1500, 2004 Chevrolet Suburban 1500, 2005 Chevrolet Suburban 1500, 2006 Chevrolet Suburban 1500
- Fits Both 2WD and 4WD Models of the 1500 Series.
- For best results getting the suspension warning light off, we recommend converting all four wheels of the vehicle at the same time.
The 2000-2006 Chevrolet Suburban 1500 is built with the following suspension components: 2000-2006 Chevrolet Suburban 1500 Air/Magnetic Shocks (x4)- shocks that contain an air bladder or magnets whose dampening capabilities is controlled by the suspension control module. 2000-2006 Chevrolet Suburban 1500 Coil Springs (x2)- Coil springs hold the vehicle up but be careful, they are rated for and designed to work with the rest of the suspension system, so when you change air shocks to passive shocks, then you will need a different rated coil spring that works well with the new type of shocks. 2000-2006 Chevrolet Suburban 1500 Torsion Bar- Adjustable horizontal bar on the front of the vehicle that holds the vehicle off the groundtorsion bar. 2000-2006 Chevrolet Suburban 1500 Shock Absorbers (x4)- a metal tubing filled with gas-charged hydraulic fluid that is connected to the wheel of a vehicle in order to reduce the effects of vertical travel on a rough surface which controls the bounciness, and therefore comfort, of a vehicle. 2000-2006 Chevrolet Suburban 1500 Air Lines- tubes that run from a compressor (air suspension) to the air struts which carry pressurized air to the air shock components in order to adjust the height of the vehicle, respectively. 2000-2006 Chevrolet Suburban 1500 Solenoids (x4)- usually L-shaped, these plastic components connect the electrical connection and lines of suspension components to the suspension control module on vehicles with active suspension. The solenoid regulates the air pressure for each air spring. Solenoids start to leak as they wear out causing the vehicle to sag or to lean. This will cause the ride height sensor to send a signal to activate the compressor in an attempt to inflate the air suspension and level out the vehicle. This excessive work load will eventually lead to total failure of the compressor. 2000-2006 Chevrolet Suburban 1500 Compressor- creates/sends pressurized to active suspension components. When the air suspension starts leaking, the compressor/pump starts working harder to try to keep the system inflated. By the time air suspension leaks down completely, sitting the vehicle on its tires, the compressor will either have failed or be well on its way to full failure. Buying replacement struts and taking the time to install them only to find out the compressor still needs to be replaced can be very frustrating, time-consuming, and expensive. 2000-2006 Chevrolet Suburban 1500 Dryer Assembly- used to keep moisture out of air lines and air springs in order to prevent freezing and internal cracking of these parts. Once air suspension starts leaking, moisture will build-up throughout the air system. Moisture damages the air suspension from the inside. The dryer will need to be replaced in order to eliminate the moisture and prevent any further damage. 2000-2006 Chevrolet Suburban 1500 Suspension Control Module- a computer which is responsible for the operations of the air suspension system and maintaining the vehicles correct ride height. 2000-2006 Chevrolet Suburban 1500 O-rings- Although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.
Suspension Failure Signs
Like its sister vehicle the Tahoe, the 2000-2006 Chevrolet Suburban was equipped from the factory with a sophisticated suspension system that will eventually need repair or replacing. Leaks in the rubber portion of the air shocks in the rear of the vehicle cause an onboard compressor to run endlessly until it can no longer keep up. The compressor either loses its ability to keep the vehicle lifted with enough air pressure (PSI) or it shuts off completely from over use. Obvious signs of this happening include a drop in ride height of three to five inches in the rear of the vehicle, excessive noise from the air compressor and a suspension warning light coming on in the instrument cluster. It is a little tougher to spot failure of the front electronic shocks -- but a suspension warning light and a harsh ride are the most common clues. While dealing with the defective active suspension system, we recommend inspecting other potentially worn suspension items like ball joints and sway bar bushings. Any normal wear items with rubber bushings wear out over time and need replacing. Continuing to drive the vehicles with a failed air suspension or electronic shocks can cause damage and increased wear on other components of the suspension due to the drastic drop in ride height. Get your vehicle fixed right away and save money by using a Strutmasters suspension conversion kit.
OEM Replacement Cost
'+ Rear Air Shocks ($396/Rear Shocks) + Electronic Front Shocks ($318/Front Shocks) + Coil Spring ($86/Coil Spring) + Compressor and Dryer Assembly ($270) = TOTAL: Over $1,638 (and that doesn't even include replacing electronic components that are known to fail such as the height sensors).
The 2000-2006 Chevy Suburban 1500 active suspension system is made up air shocks, electronic shocks and a wide array of assorted parts that are expensive to repair. If just one component is not working in sync with the others, the entire suspension system can't function properly. Years ago, we found ourselves in this tough spot with a huge repair bill and no alternatives. That's why we became The Suspension Experts because we knew there must be a better solution. Our suspension conversion kit offers an affordable direct replacement of your air and electronic shocks without sacrificing ride quality. Our kit includes two passive rear shocks, two high quality Premium Steel Coil Springs and two passive front shocks. With our detailed instructions, most can complete the installation in about one hour per wheel. If you have some mechanical skill you can install our kit yourself. If you or your mechanic have questions, our technical support team is here to help! Strutmasters saves you time, frustration, and a ton of money. It's no wonder most of our satisfied customers chose our conversion kit. You have three options when faced with failure of your active suspension: Repairing the suspension system with Original Equipment parts at a GM dealer; installing aftermarket replacement suspension parts on your Suburban 1500 piece by piece; or getting rid of your headaches for good by installing a Strutmasters suspension conversion kit today. When you choose a Strutmasters kit, your wallet will thank you!
22187159, 22187157, 22187155, 22400248, 22187151, 88965339, 22400884, 19300047, 19300045, 19300046, 22187156, 15869656, 15945872, 19300069, 19300071, 19300072, 25885469, 25979391, 25979393, 25979394, 15756926, 19300040, 22187152, 88965458, 88965338, 22400885, 22187158, 25885470, 15924688, 15869658, 25885467, 15918525, 15852159, 19331451, 19331452, 19368450, 19368459, 19368462, 19368463
