The 2004-2006 Lexus RX 330 4 Wheel AWD Air Suspension Conversion Kit (TG14F) is the perfect solution to your air suspension problems. Designed to be very affordable, you can convert your air suspension to use passive shocks and coil springs for less than the price of replacing one original equipment air spring.
$1,149.00
In Stock
Sold out
Need assistance buying the right part? Speak to an expert now.
Monday - Friday: 8 AM - 9 PM
Saturday: 9 AM - 6 PM
- Description
- Why Strutmasters
- OEM Numbers
- Instruction Manual
- Fitment
- Reviews
Convert Your Air Suspension To A Coil Spring Suspension. End Your Air Suspension Problems Forever...
2004-2006 Lexus RX 330 4 Wheel Air Suspension Conversion Kit is the perfect solution to your air suspension problems. Designed to be very affordable, you can convert your air suspension to use standard shocks and coil springs for less than the price of replacing one air spring.Conversion Kit Features
- Saves Money
- All New Components
- Rides Great
- More Reliable Than Air Suspensions
- No Modifications Required To Install
- Easy To Install
- Premium Springs
Air Suspension Conversion Kit Includes

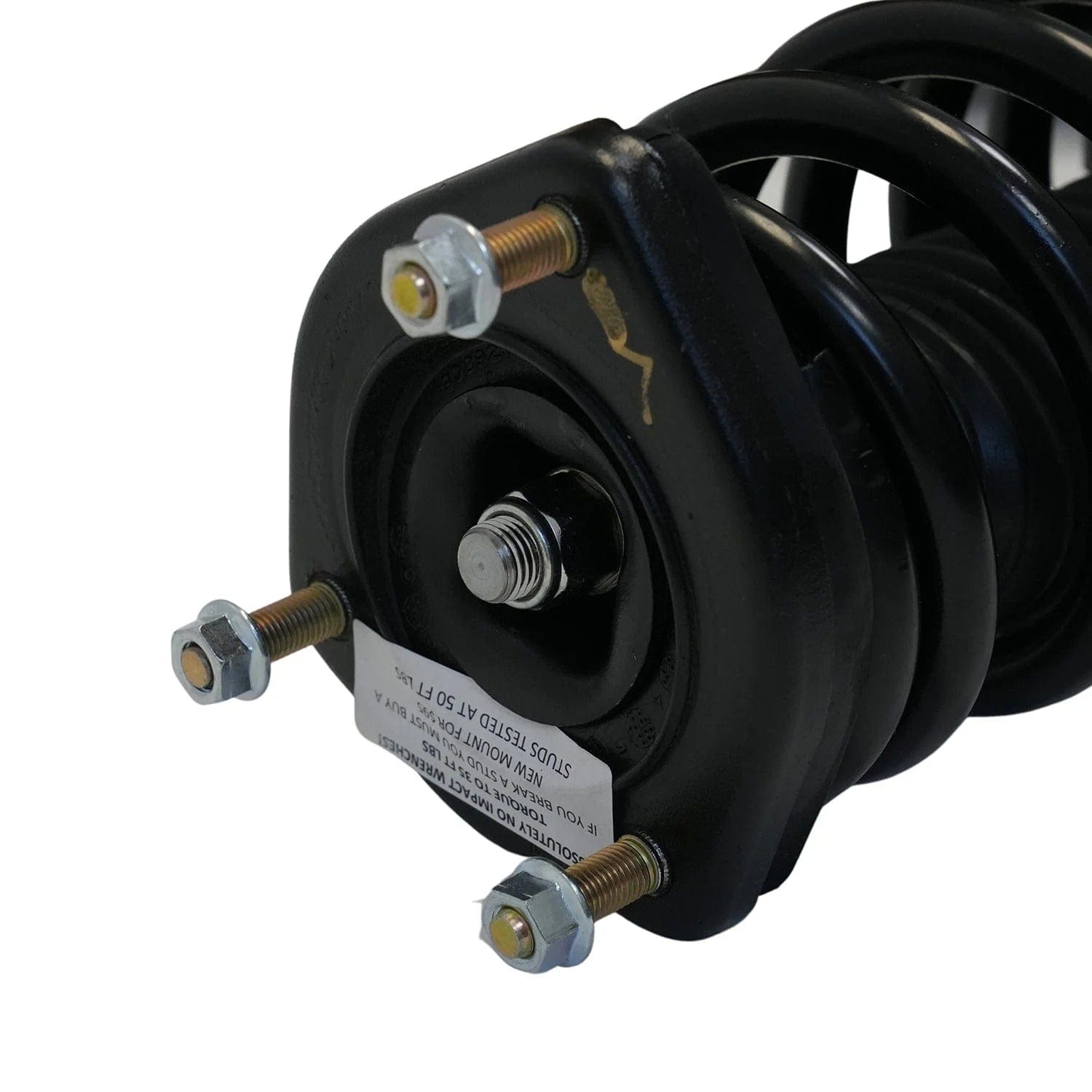

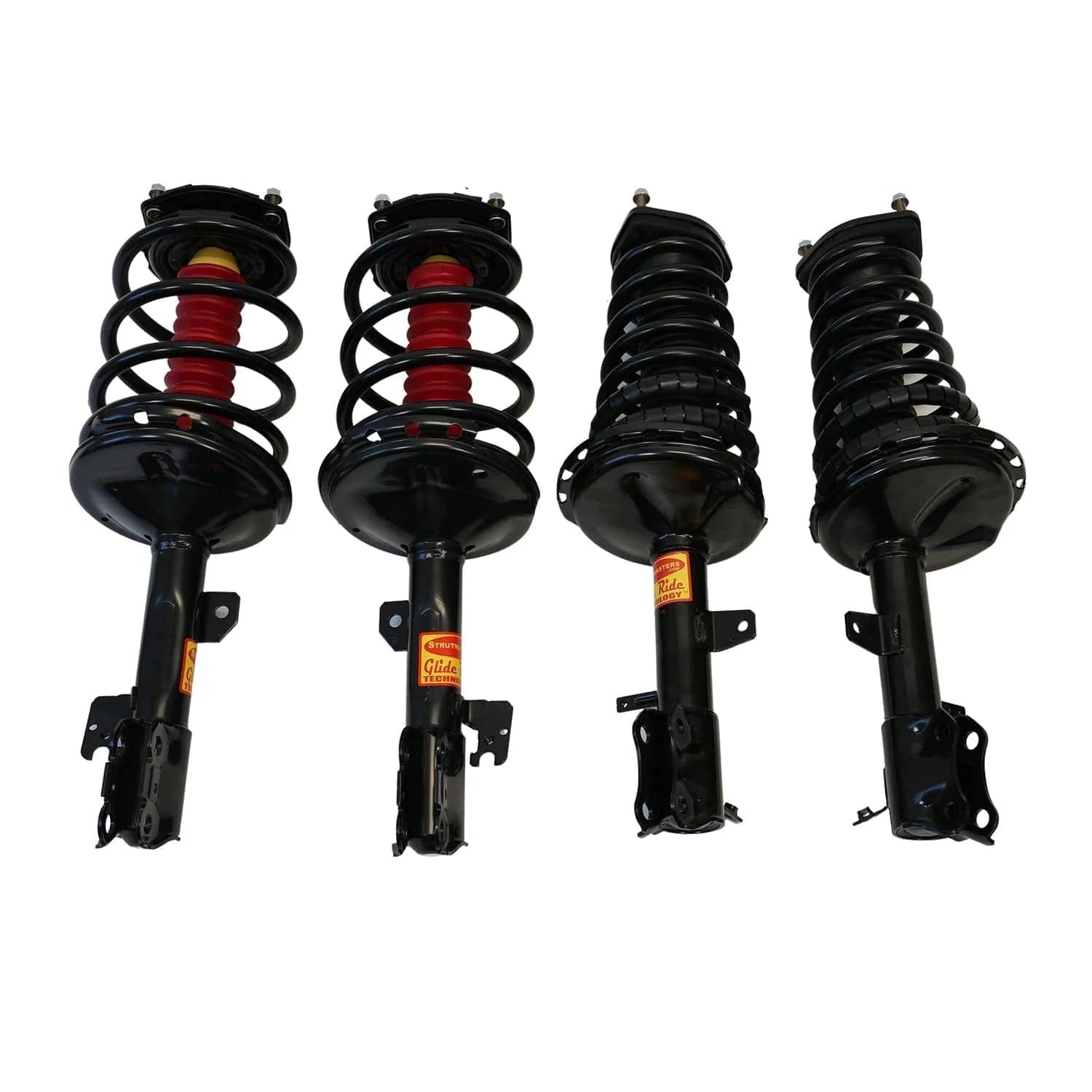

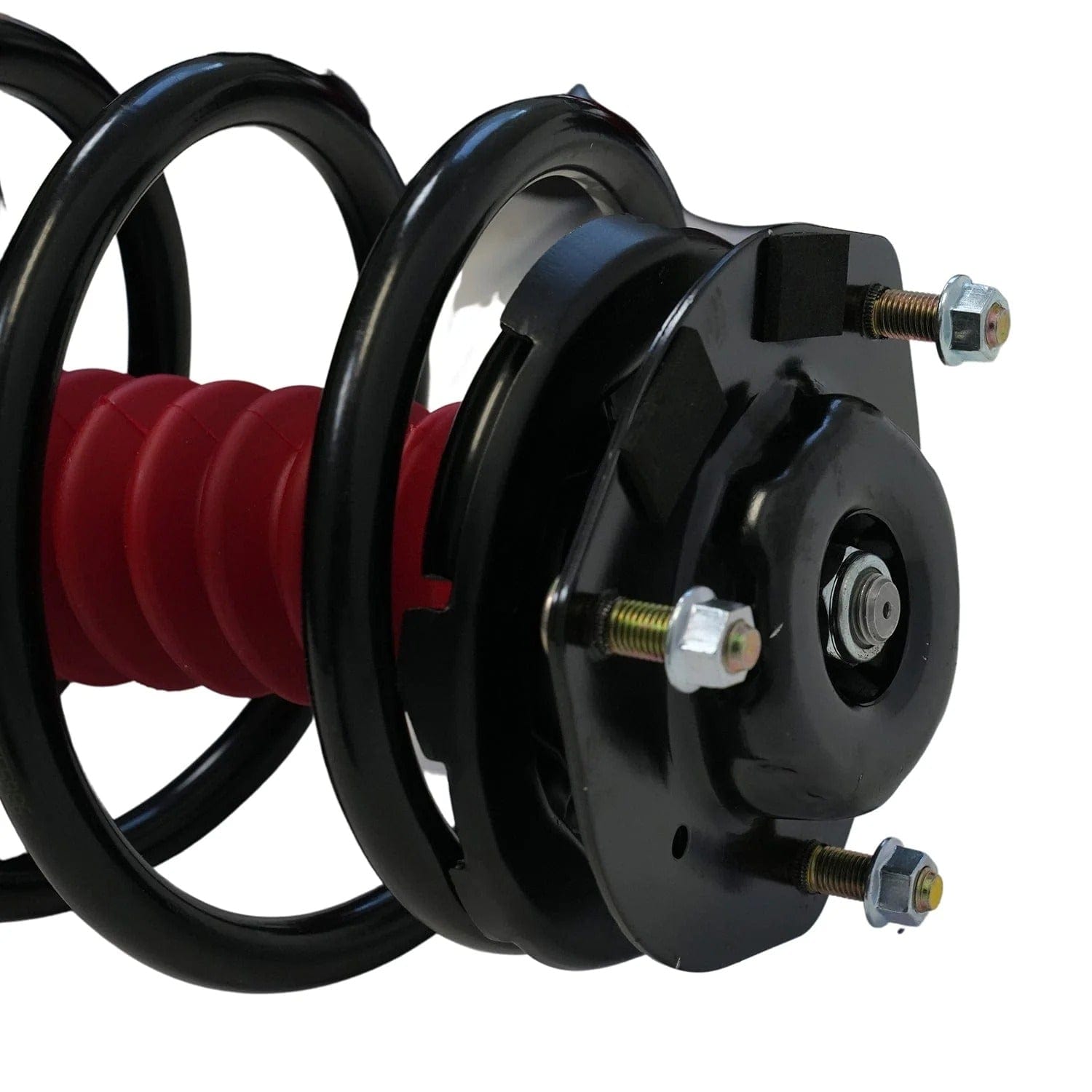

- 2 Complete, Preassembled Front Struts, Including Springs
- 2 Complete, Preassembled Rear Struts, Including Springs
- All Necessary Mounts
- All Necessary Hardware
- Detailed Instructions Including How To Disable The Suspension Warning Light
This Conversion Kit Fits
2004 Lexus RX 330, 2005 Lexus RX 330, 2006 Lexus RX 330, 2007 Lexus RX 330, 2008 Lexus RX 330Product Notes
- Complete Kit To Eliminate the 4 Wheel Air Suspension
- Fits All Wheel Drive Models ONLY!
Replaced Components
The 2003-20068Lexus RX 330 is built with the following suspension components: 2004-2006 Lexus RX 330 Air Struts (x2)- struts that contain an air bladder whose dampening capabilities is controlled by the suspension control module; these have two functions. They connect the wheel of a vehicle to the driving surface in order to reduce the effects of vertical travel on a rough surface which controls the bounciness, and therefore comfort, of a vehicle. They also help maintain the vehicles correct ride height, especially whenever the amount of load put onto the vehicle changes. 2004-2006 Lexus RX 330 Height Sensors (x2)- a linkage located near each wheel of a vehicle with any electronic suspension that, either mechanically or electronically, constantly measures the height of the vehicle, and reports this information back to the control module so that the computer can identify if changes in height need to be adjusted accordingly. The ride height sensor is a moving part, and like all moving parts, they will eventually wear out. 2004-2006 Lexus RX 330 Dryer Assembly- This vehicle is equipped with a dryer assembly. The dryer assembly is responsible for getting moisture out of the air lines. Once the air suspension parts start to leak, moisture will build up throughout the air system. Moisture damages the air suspension components from the inside out. The dryer must be replaced whenever the compressor is replaced to prevent further damage. 2004-2006 Lexus RX 330 Suspension Control Module- This vehicle is equipped with a suspension control module. This module is the brain of the suspension system and it reads all of the signals that are being sent by the height sensors and determines if the vehicle needs to be raised or lowered. 2004-2006 Lexus RX 330 O-rings- Although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.
Suspension Failure Signs
If the 2004-2006 Lexus RX 330 is unable to reach and maintain the proper ride height then the air suspension system may be going bad. Look for the following signs of a failed or leaking air suspension system before it's too late. A sudden height variance between different sides of the RX 330 is a major red flag. Many drivers notice a sagging rear or front end, coupled with an inflated opposite end. This can give the illusion that the RX 330 is "squatting down". There may be a shifting lean from side to side. These height imbalances, if not fixed promptly, will wear out the air compressor over time. If the air compressor stops working then suspension failure will advance further. At this late stage, a suspension warning light will illuminate on the instrument cluster.
OEM Replacement Cost
'+ Air Struts ($799/strut) + Compressor and Dryer Assembly ($435) = TOTAL: Over $3,630 (and that doesnt even include replacing electronic components that are known to fail such as the height sensors).
Strutmasters' air to non-air suspension conversion kit, made in America, includes two pre-assembled complete front struts with premium springs and two pre-assembled complete rear struts with premium springs. Designed for those who like to work on their vehicle themselves, the kit can be easily installed in as little as one hour per wheel. Detailed instructions and online installation videos help ensure a smooth repair. ASE certified experts offer technical support if further help is needed. The quality parts are guaranteed by Strutmasters' 1-year warranty. And, lastly, the cost of the kit is a fraction of the prices of dealership direct replacement and individual part replacement. The kit saves Lexus RX 330 owners time, frustration, and money when the original air suspension system goes bad.
4801048040, 4802048040, 4809048070, 4808048070
