The 2005-2009 Land Rover Discovery 3 / LR3 4 Wheel Air Suspension Conversion Kit (LB44F) is the perfect solution to your air suspension problems. Designed to be very affordable, you can convert your air suspension to use passive shocks and coil springs for less than the price of replacing one original equipment air spring.
$1,129.00 In Stock Sold out
IN STOCK & SHIPS FAST!
Need assistance buying the right part? Speak to an expert now.
Monday - Friday: 8 AM - 9 PM
Monday - Friday: 8 AM - 9 PM
Saturday: 9 AM - 6 PM
This product is vehicle specific.
Select a vehicle to ensure fitment.
- Why Strutmasters
- OEM Numbers
Convert Your Air Suspension To A Passive Coil Spring Suspension. End Your Air Suspension Problems Forever...Strutmasters 2005-2009 Land Rover Discovery 3 / LR3 (4.4L) 4 Wheel Air Suspension Conversion Kit is the perfect solution to your air suspension problems. Designed to be very affordable, you can convert your ENTIRE air suspension to use passive struts and coil springs for less than the price of replacing ONE Original Equipment air strut.
Conversion Kit Features
- Saves Money
- All New Components
- Rides Great
- More Reliable Than Air Suspensions
- No Modifications Required To Install
- Easy To Install
- Premium Springs

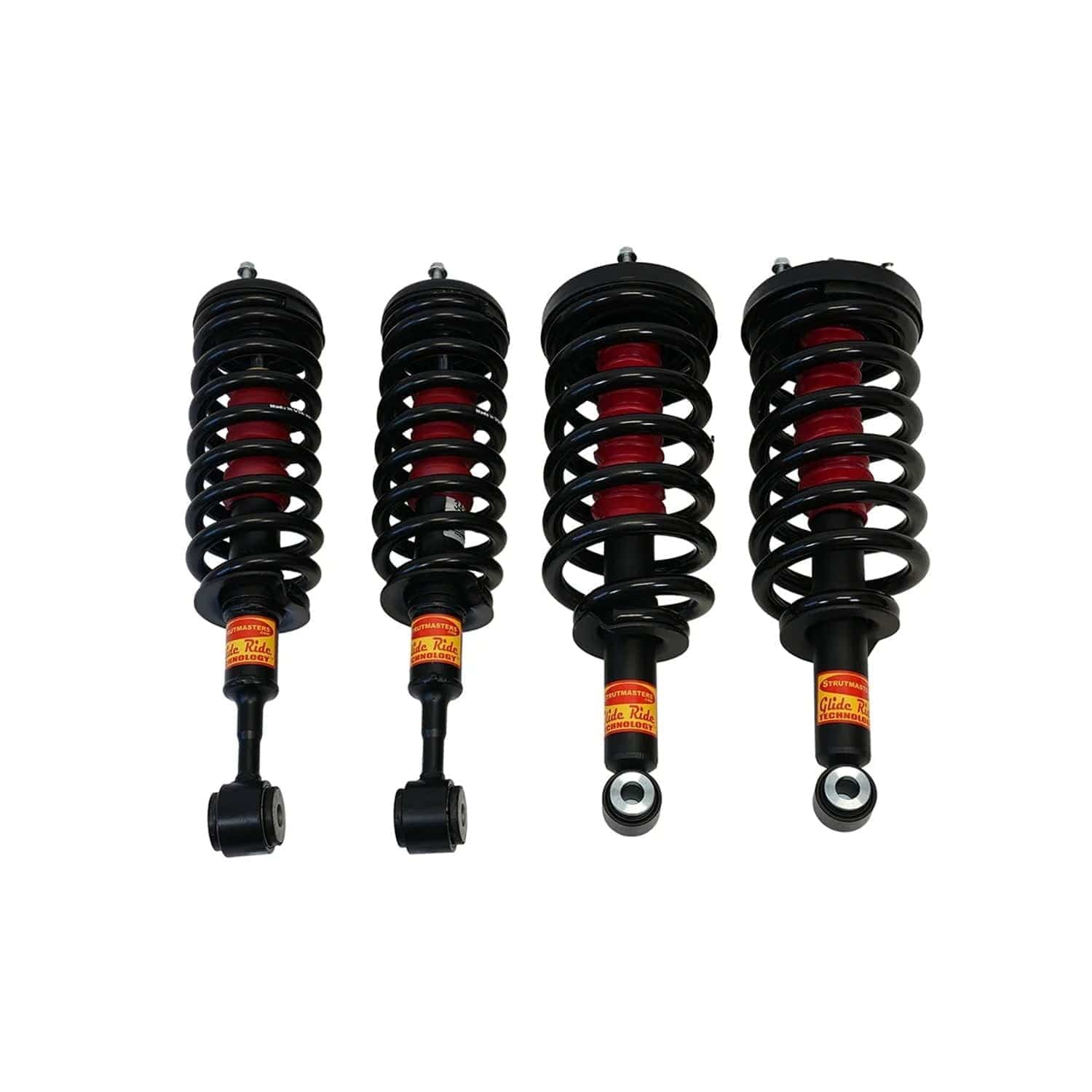

Air Suspension Conversion Kit Includes
- 2 Complete, Fully Assembled Front Struts With New Mounts And Springs
- 2 Complete, Fully Assembled Rear Struts With New Mounts And Springs
- All Mounting Hardware Necessary For Installation
- All Necessary Hardware
- Detailed Instructions
This Conversion Kit Fits2005 Land Rover Discovery 3 / LR3 (4.4L), 2006 Land Rover Discovery 3 / LR3 (4.4L), 2007 Land Rover Discovery 3 / LR3 (4.4L), 2008 Land Rover Discovery 3 / LR3 (4.4L), 2009 Land Rover Discovery 3 / LR3 (4.4L)
- THIS KIT WILL FIT SUPERCHARGED MODELS!
- Suspension Warning Light Fix NOT included with this kit
The 2005-2009 Land Rover Discovery 3 / LR3 is built with the following suspension components:
2005-2009 Land Rover Discovery 3 / LR3 Air Struts (x4)- struts that dampen vibration and bouncing motion with use of a gas-charged tube filled with hydraulic fluid that also acts as a perch for a rubber air bladder (air spring or air bag). The rubber air springs inflate, taking the place of a traditional steel coil spring, and support the weight of the vehicle.
2005-2009 Land Rover Discovery 3 / LR3 Height Sensors (x4)- a linkage located near each wheel of a vehicle with any electronic suspension that, either mechanically or electronically, constantly measures the height of the vehicle, and reports this information back to the control module so that the computer can identify if changes in height need to be adjusted accordingly. The ride height sensor is a moving part, and like all moving parts, they will eventually wear out.
2005-2009 Land Rover Discovery 3 / LR3 Air Lines- tubes that carry pressurized air from an onboard compressor to the rubber air bladder portion of the air strut in order to adjust the height of the vehicle.
2005-2009 Land Rover Discovery 3 / LR3 Compressor- Creates and sends pressurized air to active suspension components. When the air suspension starts leaking, the compressor also called an air pump) starts working harder to try to keep the system inflated. By the time air suspension leaks down completely, the compressor will either have failed or be well on its way to full failure. Buying replacement air struts and taking the time to install them, only to find out the compressor still needs to be replaced, is very frustrating, time-consuming, and expensive.
2005-2009 Land Rover Discovery 3 / LR3 Dryer Assembly- used to keep moisture out of air lines and air springs in order to prevent freezing and internal cracking of these parts. Once air suspension starts leaking, moisture will build-up throughout the air system. Moisture damages the air suspension from the inside. The dryer will need to be replaced in order to eliminate the moisture and prevent any further damage.
2005-2009 Land Rover Discovery 3 / LR3 Suspension Control Module- a computer which is responsible for the operations of the air suspension system and maintaining the vehicle's correct ride height.
2005-2009 Land Rover Discovery 3 / LR3 O-rings- Although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.
Suspension Failure Signs
A loss of three to five inches of ride height is a classic indicator that the air suspension system is failed or leaking. Other common signs include height variance between different sides of the Discovery 3 / LR3; a sagging front or rear end of the vehicle; an illuminated suspension warning light on the dashboard or an improperly working air compressor. A leaking air suspension will place extra strain on the compressor, causing it to work overtime until it's eventually killed. A Land Rover LR3 owner will want any suspension issue fixed as soon as it presents itself to avoid a costly repair.
The various components and electronics of the 2005-2009 Land Rover Discovery 3 / LR3's suspension system must always work together. When one part stops working, the rest follow suit. Strutmasters' air to non-air suspension conversion kit eliminates this reliance for good. The kit comes complete with two pre-assembled front strut assemblies with springs and two pre-assembled rear strut assemblies with springs. The kit is installed in as little as one hour per wheel, and no modifications are needed. It's a direct replacement solution. Detailed instructions and online installation videos offer precise repair directions that are easy to follow. The quality parts are backed by Strutmasters' 1-year warranty. Lastly, the cost of the kit is a fraction of the price of Original Equipment replacement at the dealership or individual aftermarket replacement parts.
RPD501100, LR016418, LR041110, LR038096, RPD501020, LR032650, RPD000309, RPD501090, LR016419, RNB501580, LR016416, RNB501610, RNB501480, RNB000858, RNB000856, RNB000857, RNB501470, RNB501460, RNB501620, RNB501250, LR041108, LR016415, RNB501180, RNB000855, LR016414, LR034282, RNB501590, LR034283, LR058022, LR034284, RNB501600, LR032646, LR018398
