2006-2012 Mercedes-Benz R500 4-Wheel Air Suspension Conversion Kit with Suspension-Light Module with Shocks (MR14FBM)
IN STOCK & SHIPS FAST!
Monday - Friday: 8 AM - 9 PM
Saturday: 9 AM - 6 PM
- Why Strutmasters
- OEM Numbers
Convert Your AIR Suspension To A Coil Spring Suspension End Your Suspension Problems Forever...
Strutmasters 2006-2012 Mercedes-Benz R500 4-Wheel Conversion Kit is the perfect solution to your suspension problems. Designed to be very affordable, you can convert your suspension to use standard shocks and coil springs for less than the price of replacing one Air Spring.
- Saves Money
- Replaces Your Rear Air System
- All New Components
- Rides Great
- No Modifications Required To Install
- Easy To Install
- Premium Springs

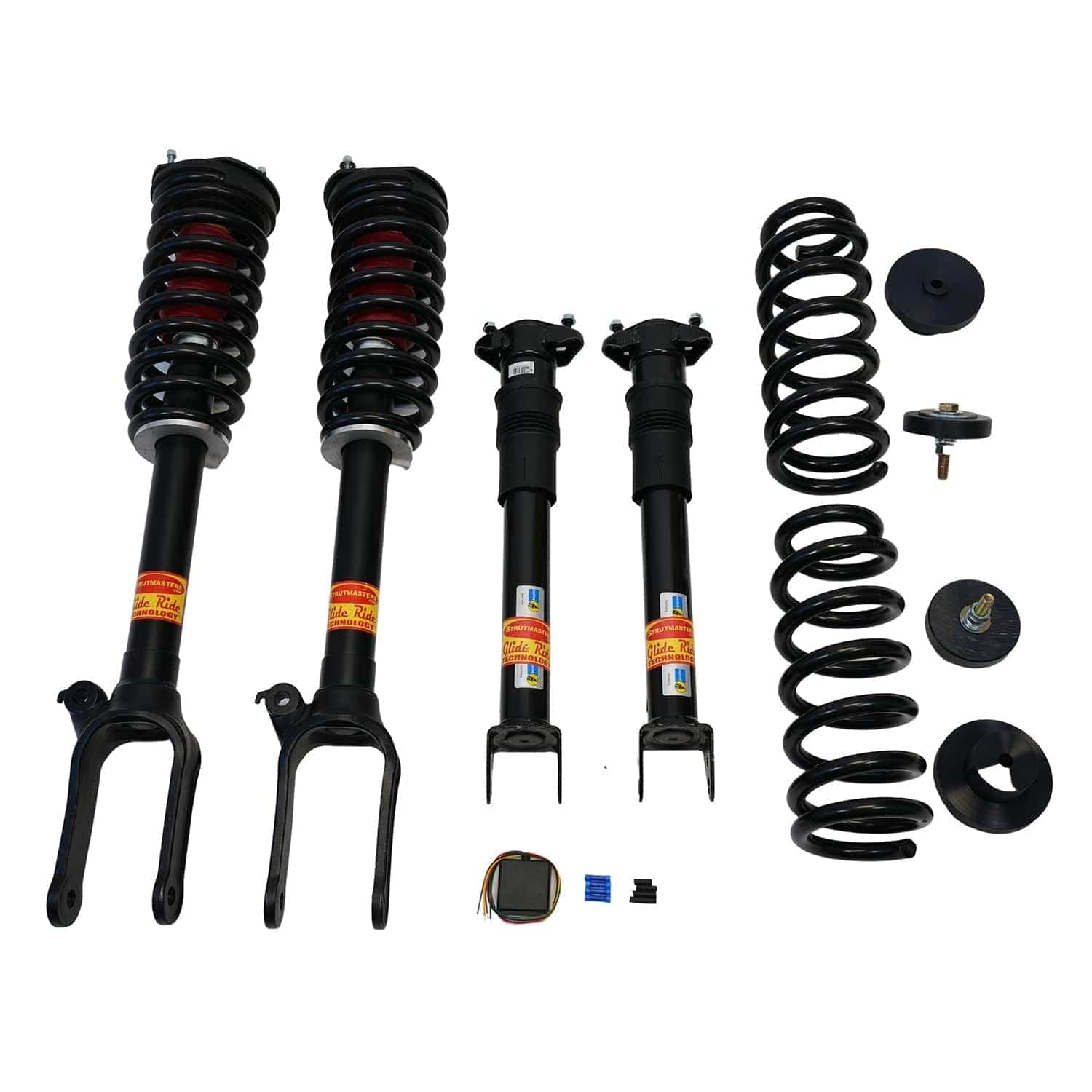

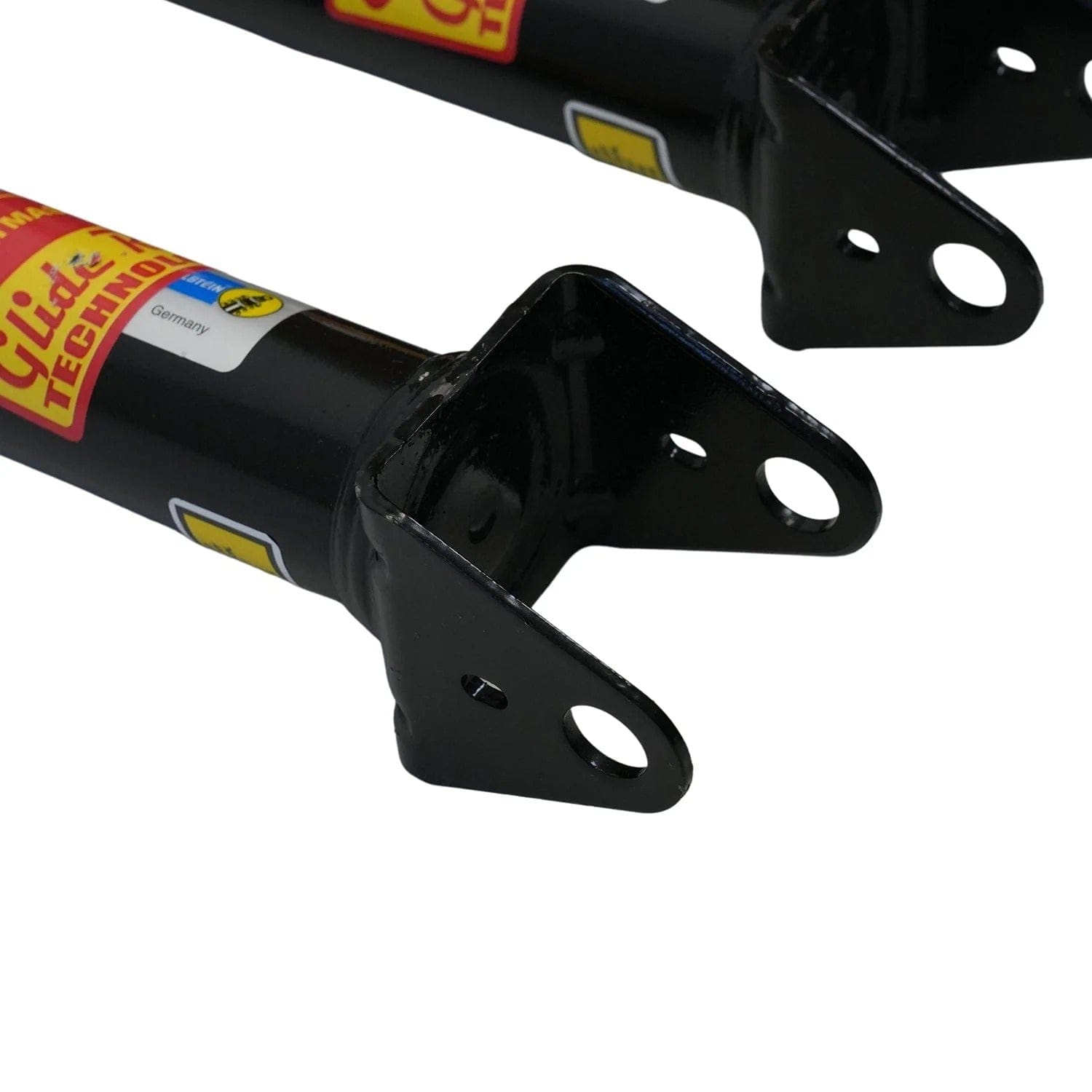

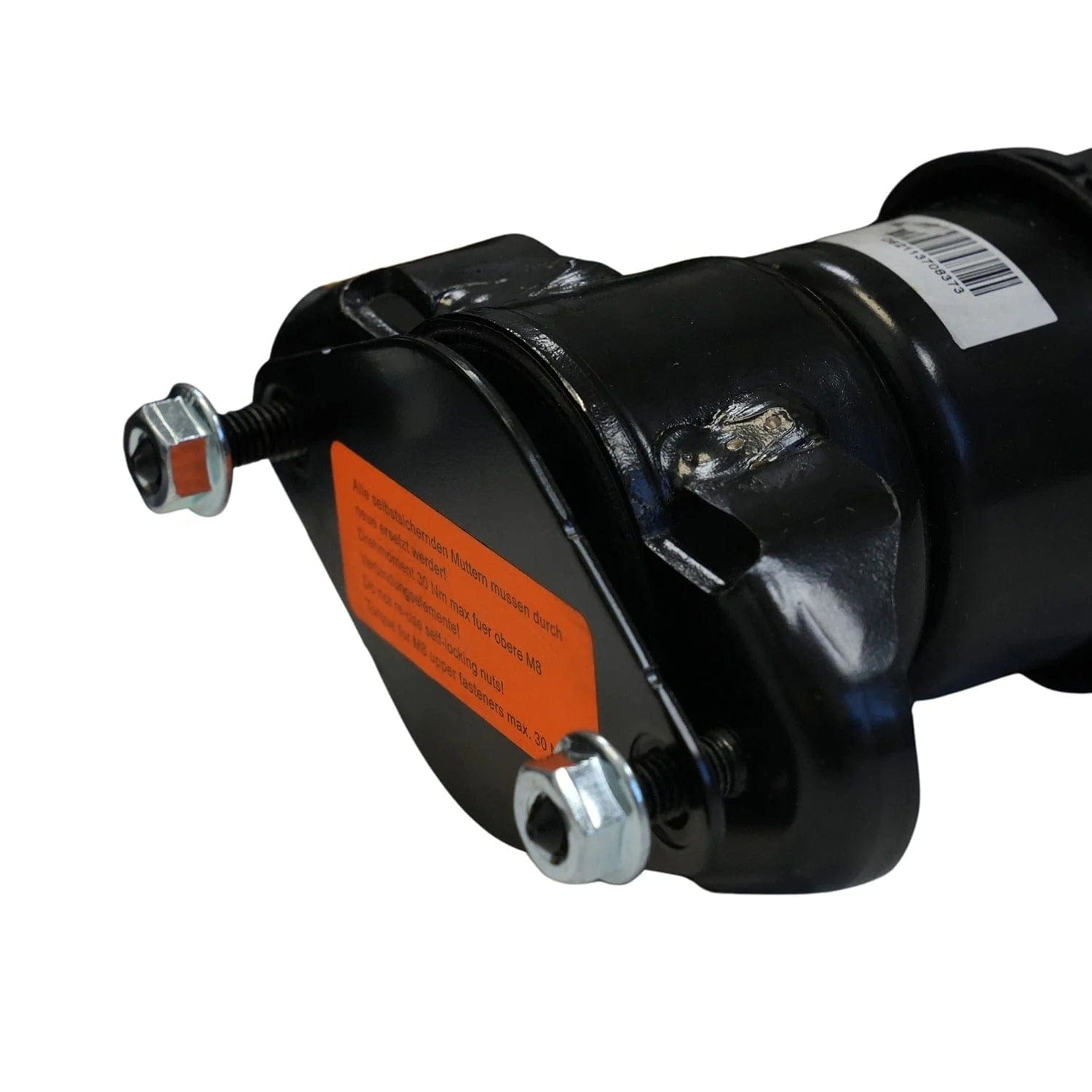

- 2 Rear Shocks
- 2 Rear Springs

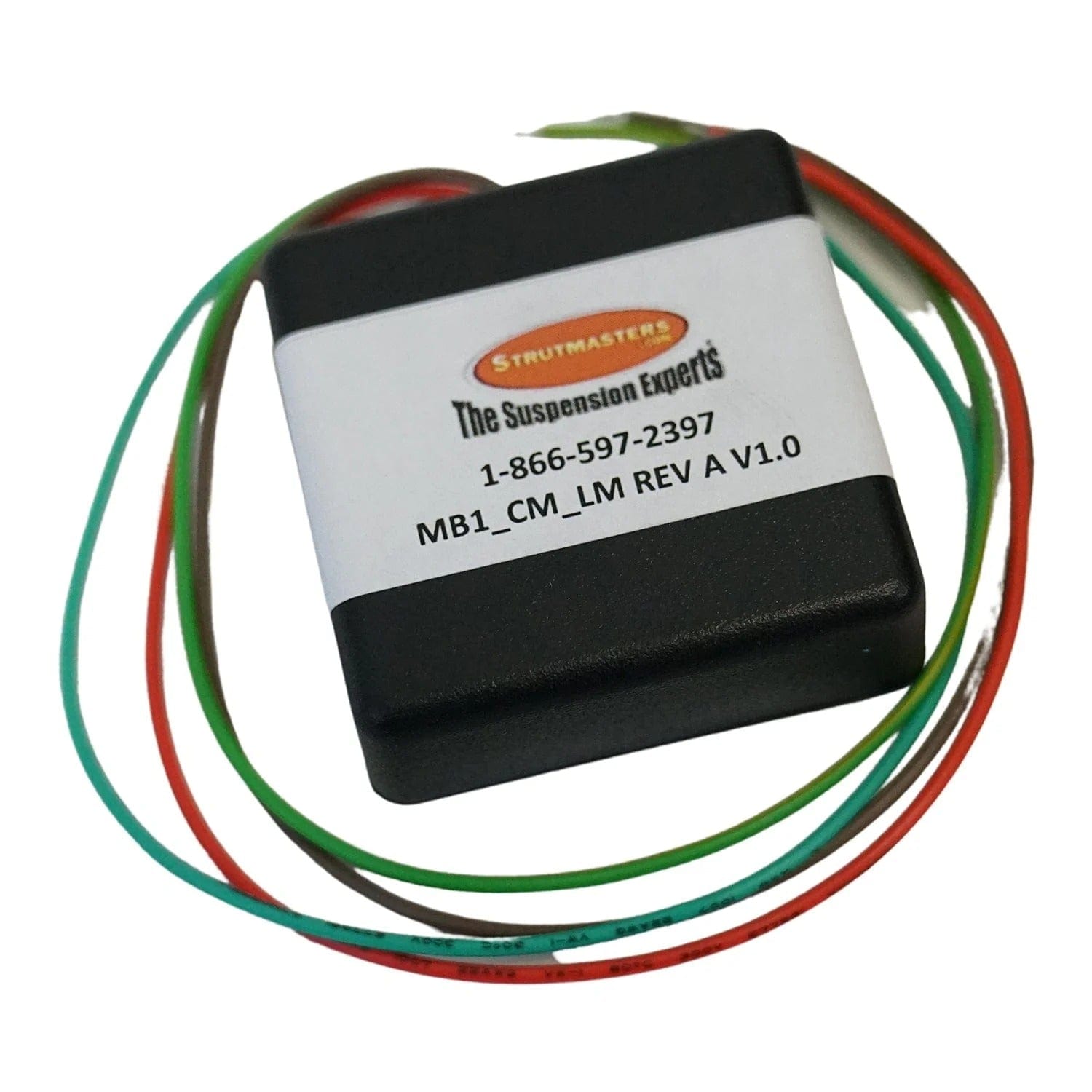

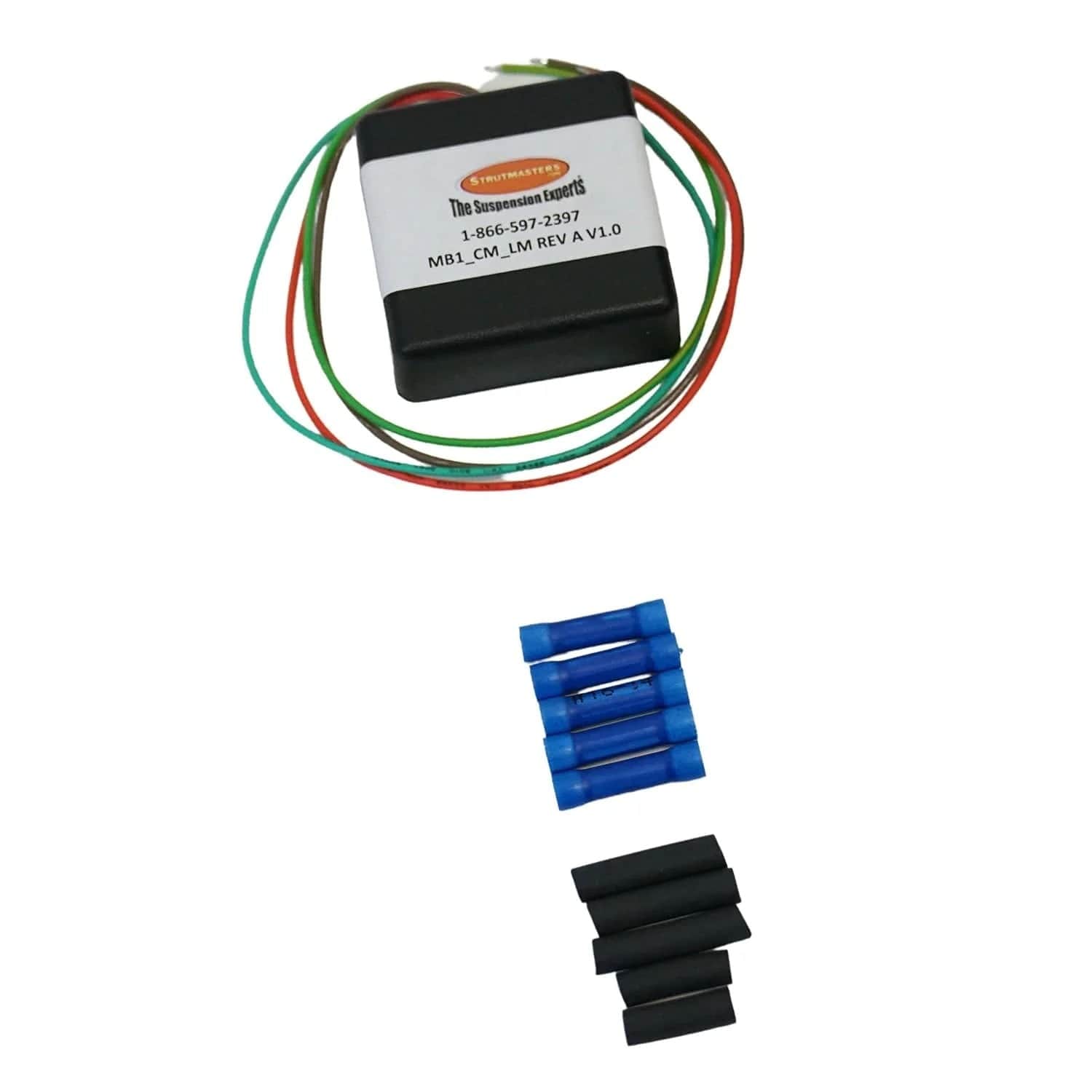

- Suspension Warning Light-Removal Module

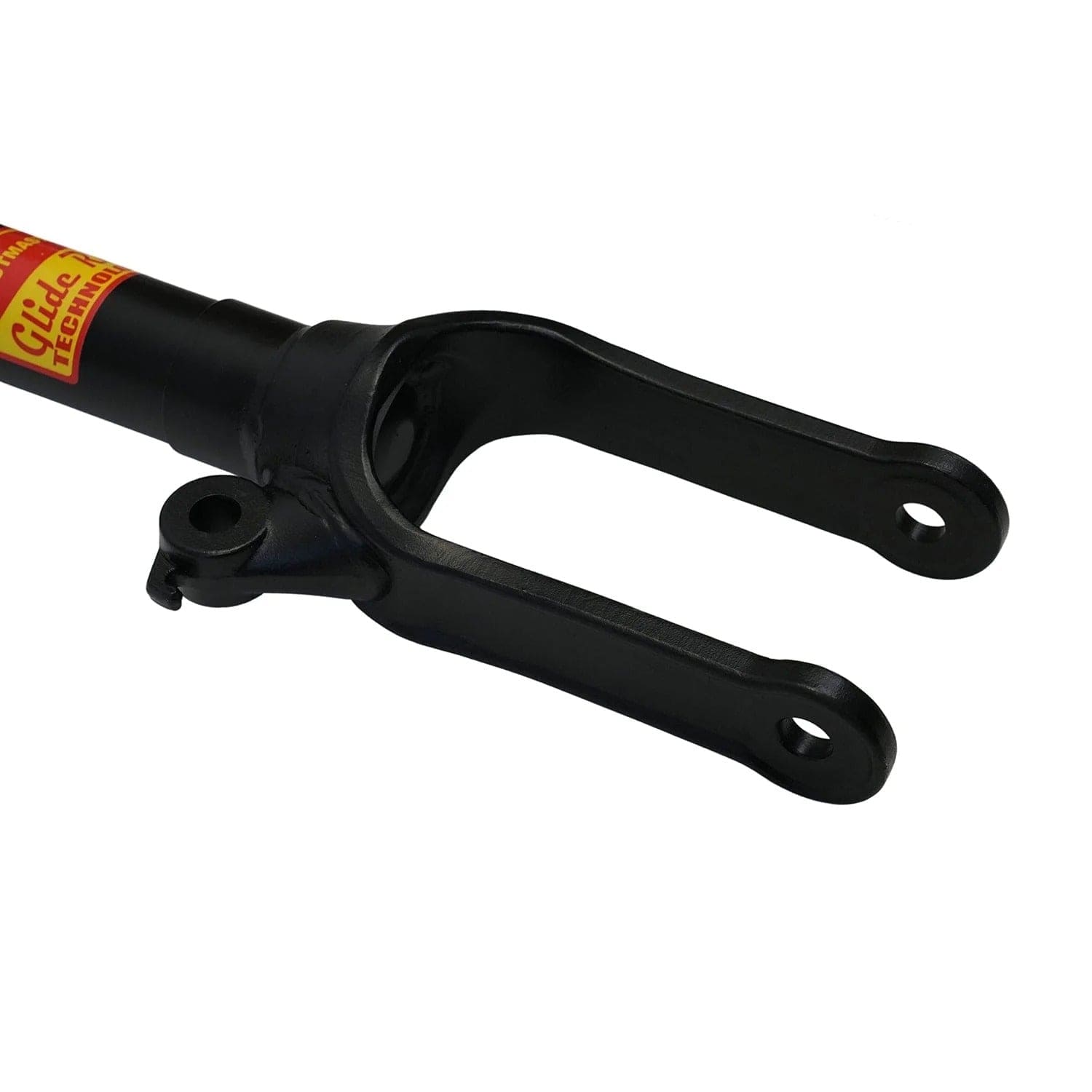

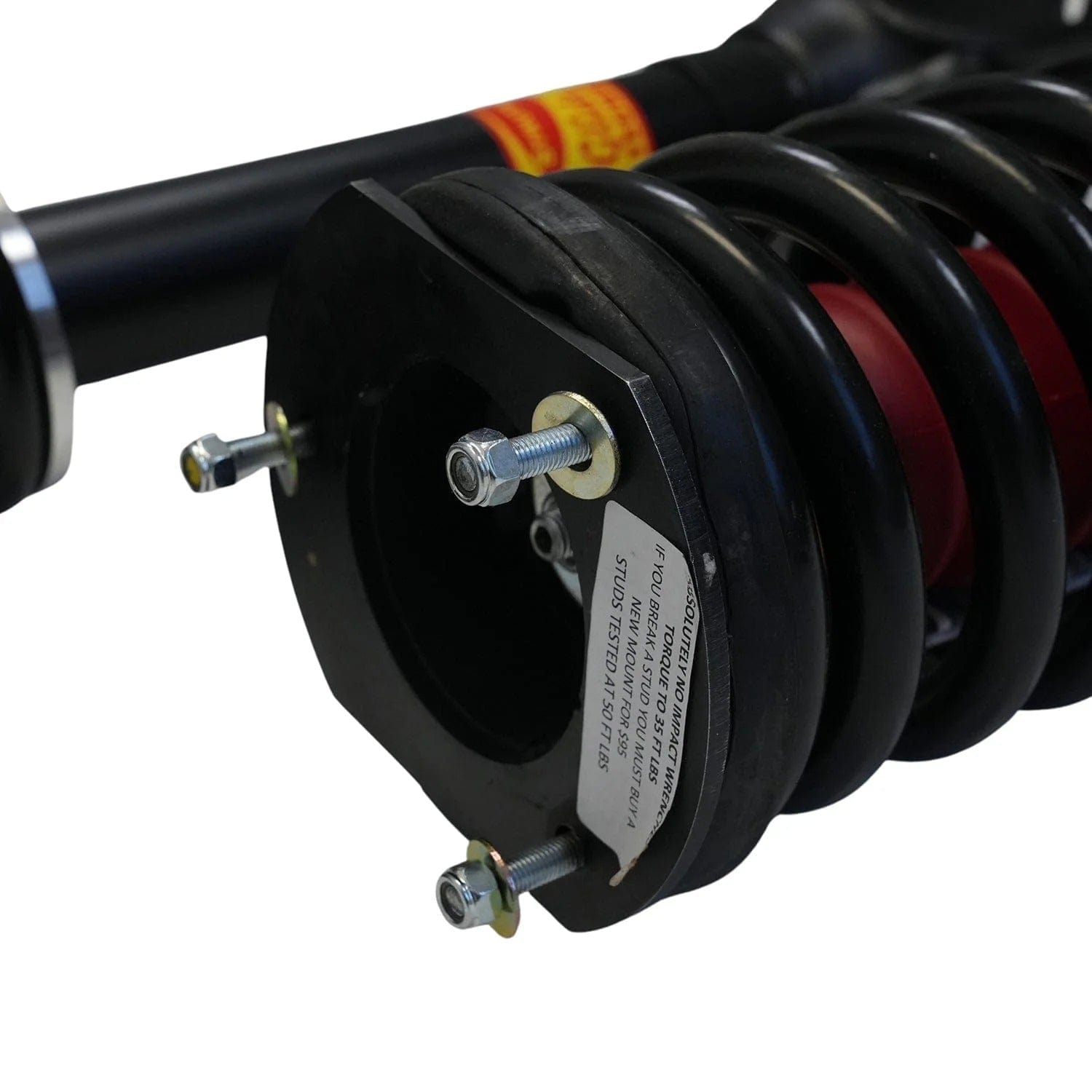

- 2 Front Coilover Struts Preloaded with Springs

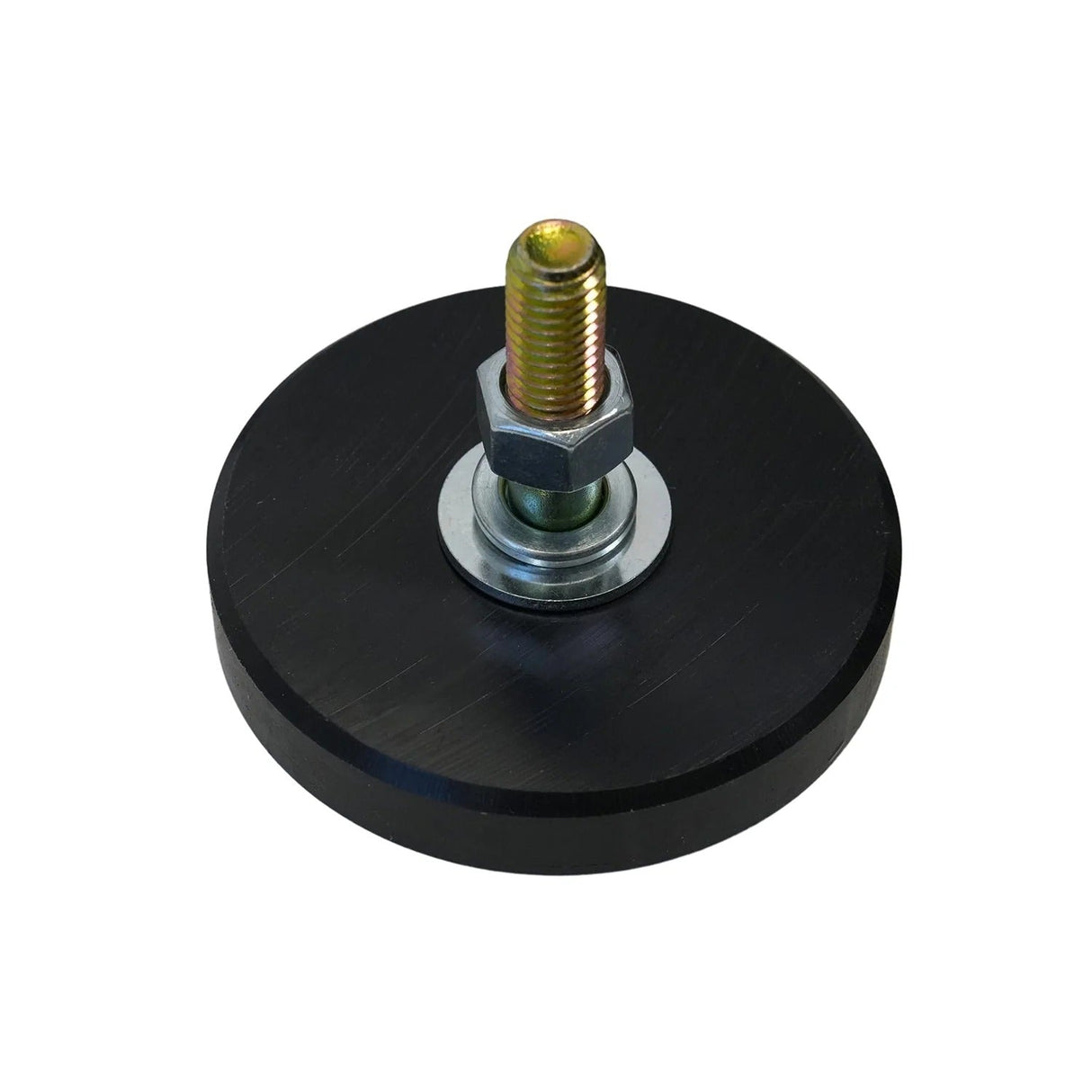

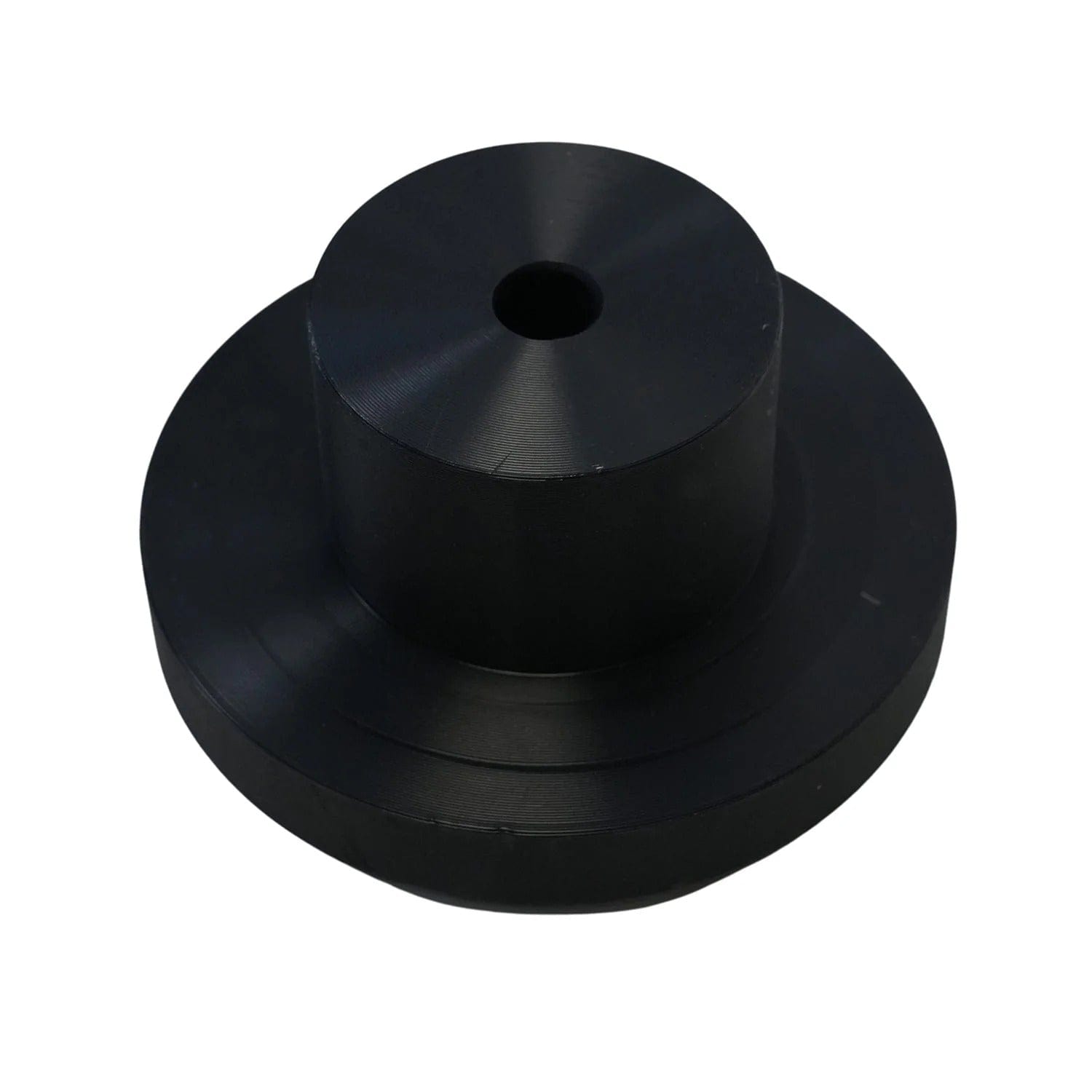

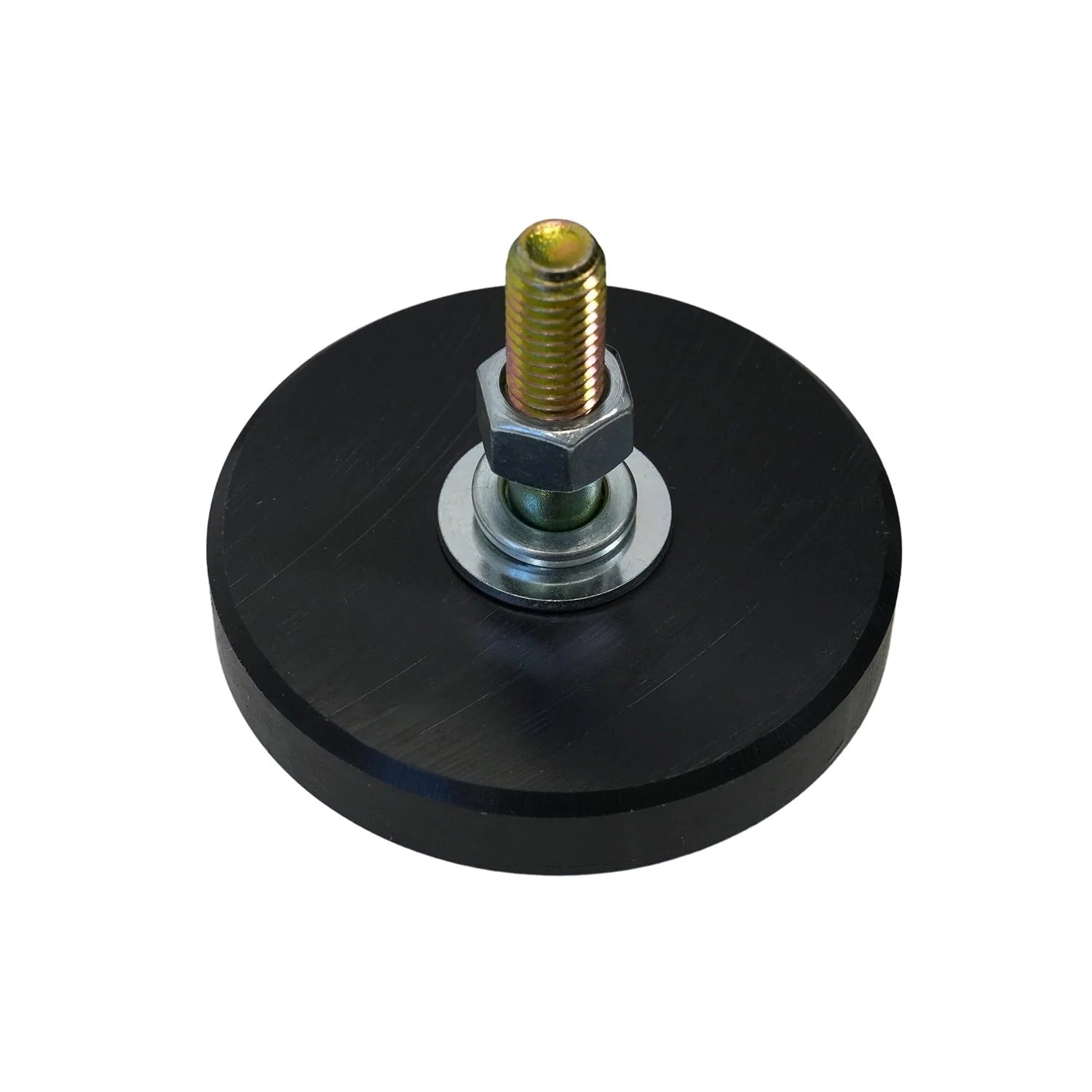

- New Mounts
- All Necessary Hardware
- Detailed Instructions
- This kit includes the module to remove the suspension warning light!
- This kit fits both 2WD and 4WD models.
THIS KIT FITS
- 2006 MERCEDES R500
- 2007 MERCEDES R500
- 2008 MERCEDES R500
- 2009 MERCEDES R500
- 2010 MERCEDES R500
- 2011 MERCEDES R500
- 2012 MERCEDES R500
- 2013 MERCEDES R500
The 2006-2012 Mercedes Benz R500 is built with the following rear suspension components:
2006-2012 Mercedes Benz R500 Electronic Shocks (x2)- shocks whose dampening capabilities are controlled by the suspension control module.
2006-2012 Mercedes Benz R500 Air Springs (x2)- commonly referred to as air bags, a plastic and rubber bag that is fitted on top of the strut that uses pressurized air as a cushion instead of a metal coil spring to hold a vehicle off of the ground and off of its wheels. These are the number one cause of all air suspension leaks. All air springs all go bad at about the same rate. If one is leaking, the others will not be far behind. For a proper repair, all of them need to be replaced at the same time.
2006-2012 Mercedes Benz R500 Height Sensors (x2)- a linkage located near each wheel of a vehicle with any electronic suspension that, either mechanically or electronically, constantly measures the height of the vehicle, and reports this information back to the control module so that the computer can identify if changes in height need to be adjusted accordingly. The ride height sensor is a moving part, and like all moving parts, they will eventually wear out.
2006-2012 Mercedes Benz R500 Air Lines- tubes that run from a compressor to the air springs, which carry pressurized air to the air bags.
2006-2012 Mercedes Benz R500 Solenoids (x2)- usually L-shaped, these plastic components connect the electrical connection and lines of suspension components to the suspension control module on vehicles with active suspension. The solenoid regulates the air pressure for each air spring. Solenoids start to leak as they wear out causing the vehicle to sag or to lean. This will cause the ride height sensor to send a signal to activate the compressor in an attempt to inflate the air suspension and level out the vehicle. This excessive work load will eventually lead to total failure of the compressor.
2006-2012 Mercedes Benz R500 Compressor Assembly- creates/sends pressurized air to active suspension components. When the air suspension starts leaking, the compressor/pump starts working harder to try to keep the system inflated. By the time air suspension leaks down completely, sitting the vehicle on its tires, the compressor will either have failed or be well on its way to full failure. Buying replacement struts and taking the time to install them only to find out the compressor still needs to be replaced can be very frustrating, time-consuming, and expensive.
2006-2012 Mercedes Benz R500 Suspension Control Module- a computer which is responsible for the operations of the air suspension system and maintaining the vehicles correct ride height.
2006-2012 Mercedes Benz R500 O-rings- although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.
Suspension Failure Signs
If the 2006-2012 Mercedes-Benz R500 4Wheel is unable to reach and maintain its proper ride height, it may have a failed or leaking air suspension system. Look for the following signs that indicate the suspension system is going bad, before it's too late and total failure sets in. Any height variance is a red flag. This may look like one inflated end, one sagging end, an overall squatting appearance, or a lean from one side to the other. These imbalances, if not fixed immediately, will wear out the air compressor. Listen to the air compressor. Is it working? Is it running too often? At this late stage, suspension failure is advanced and a suspension warning light will illuminate on the dash. An expensive repair or direct replacement will be necessary.
OEM Replacement Cost
- Front Struts ($496/strut) +
- Front Air Spring ($350/spring) +
- Front Mounts ($43/mount) +
- Rear Electronic Shocks ($740/shock) +
- Rear Air/Hydraulic Spring ($430/spring) +
- Air Compressor Assembly ($540)
- = TOTAL: Over $4,500 (and that doesnt even include replacing electronic components that are known to fail such as the height sensors).
Aftermarket Replacement Cost
- Front Air Struts ($675/strut) +
- Rear Electronic Shocks ($110/shock) +
- Rear Air/Hydraulic Spring ($190/spring) +
- Air Compressor Assembly ($680)
- = TOTAL: Over $2,600 (and that doesn't even include replacing electronic components that are known to fail such as the height sensors).
