Convert Your AIR Suspension To A Coil Spring Suspension End Your Suspension Problems Forever...Strutmasters 2010-2012 Mercedes-Benz GL350 BlueTEC Diesel 4MATIC 4-Wheel Conversion Kit with the Suspension Warning Light Module is the perfect solution to your suspension problems. Designed to be very affordable, you can convert your suspension to use standard shocks and coil springs for less than the price of replacing one Air Spring.
Conversion Kit Features
- Saves Money
- Replaces Your Rear Air System
- All New Components
- Rides Great
- No Modifications Required To Install
- Easy To Install
- Premium Springs

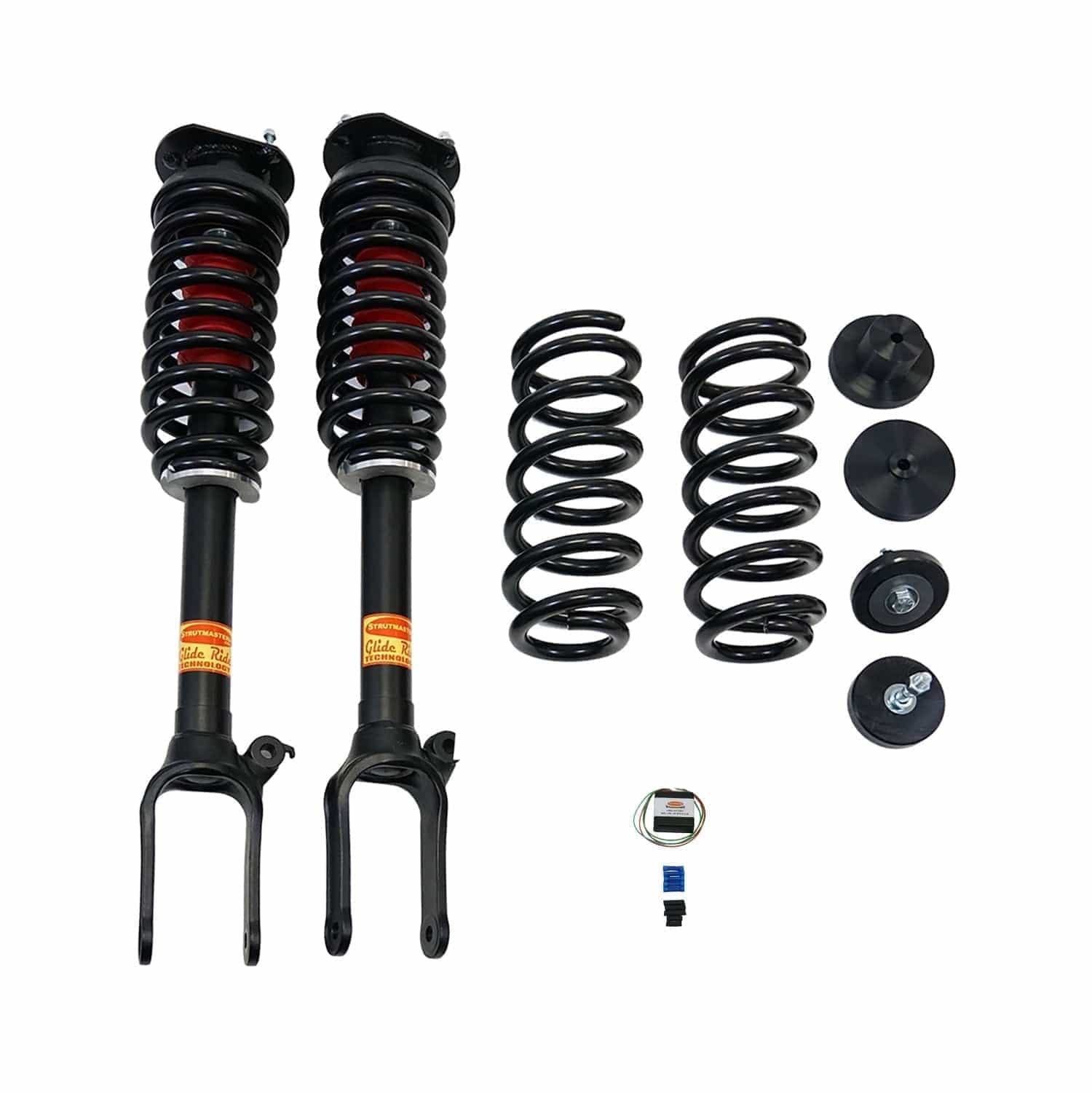

Air Suspension Conversion Kit Includes
- 2 Rear Coil Springs

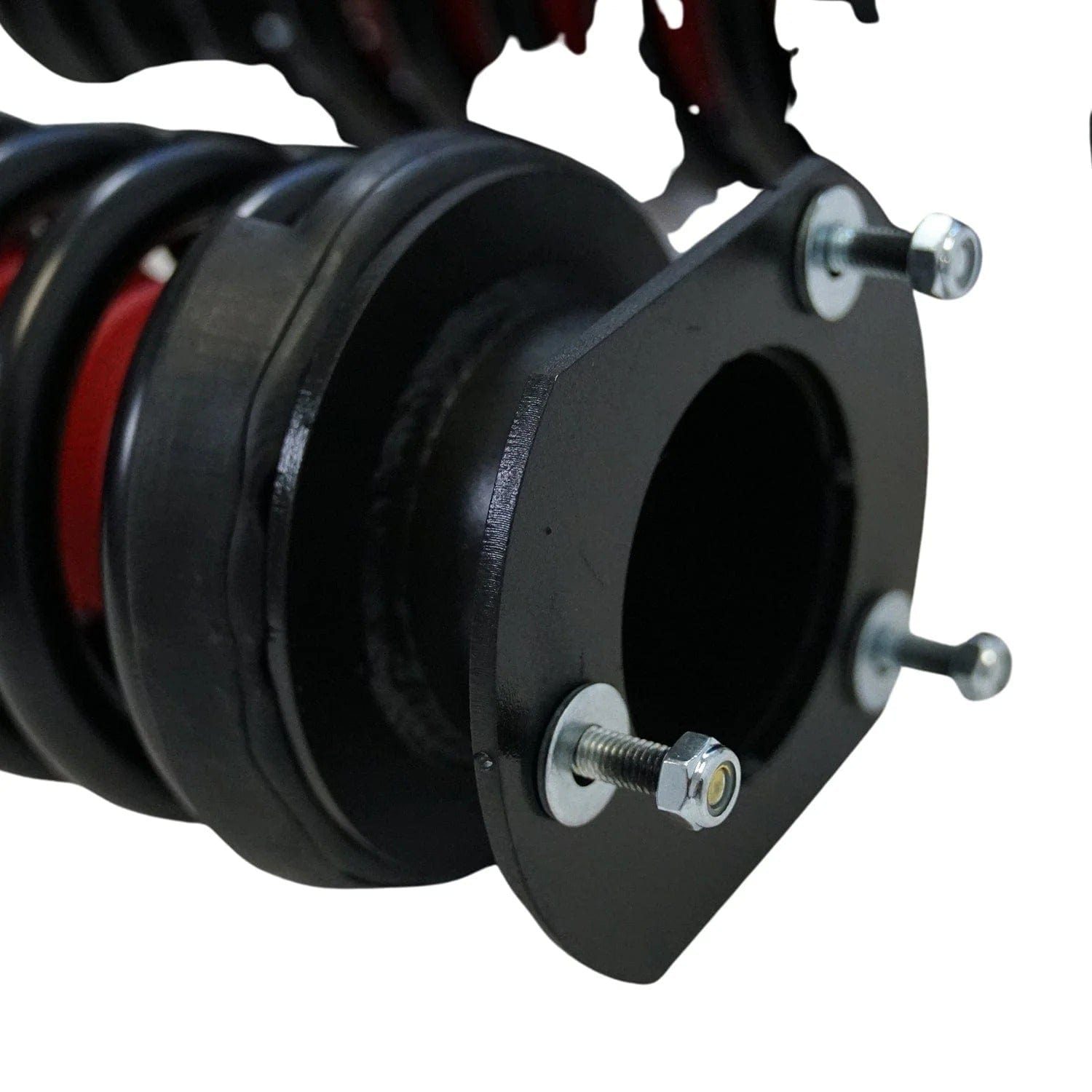

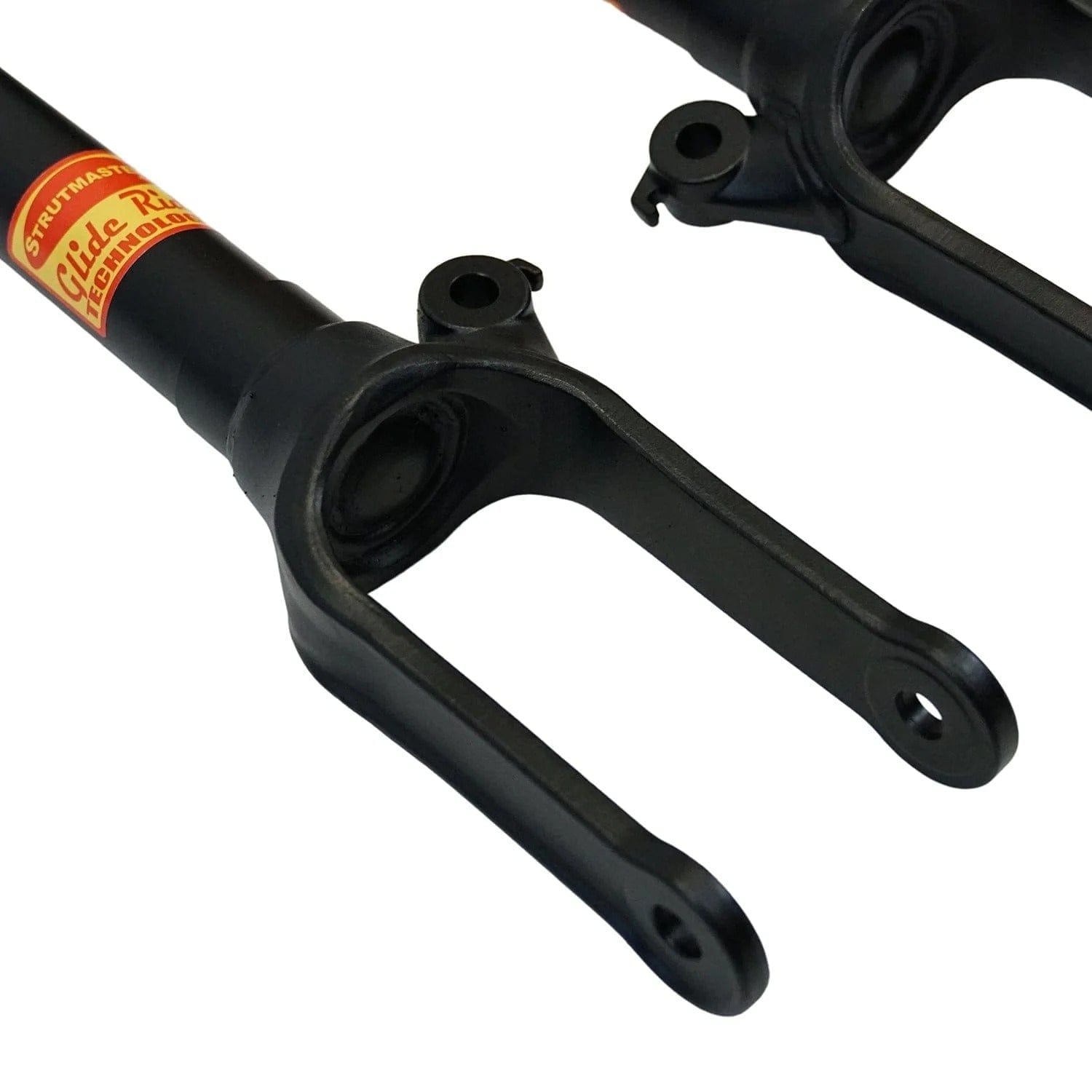

- 2 Front Coilover Struts Preloaded with Springs

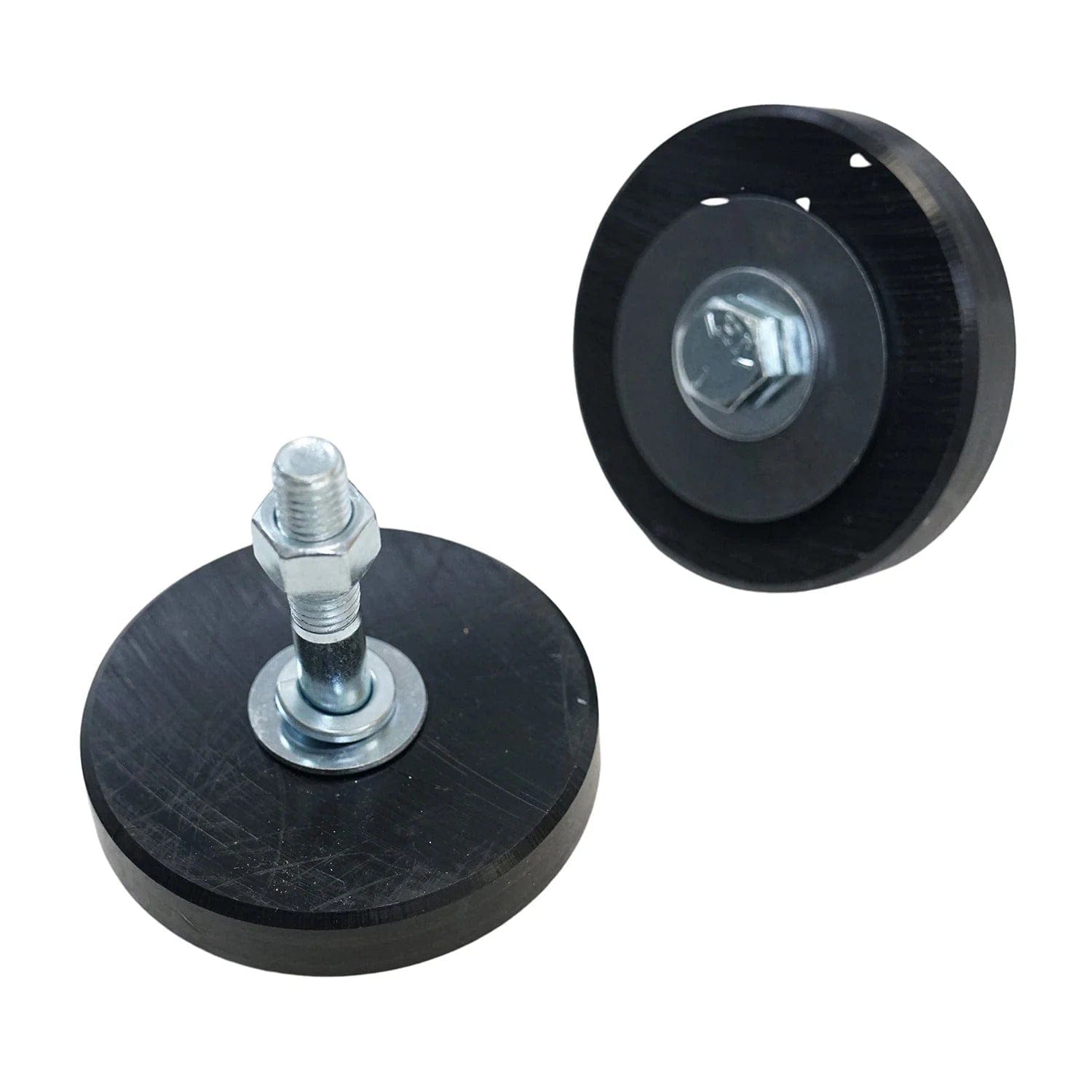

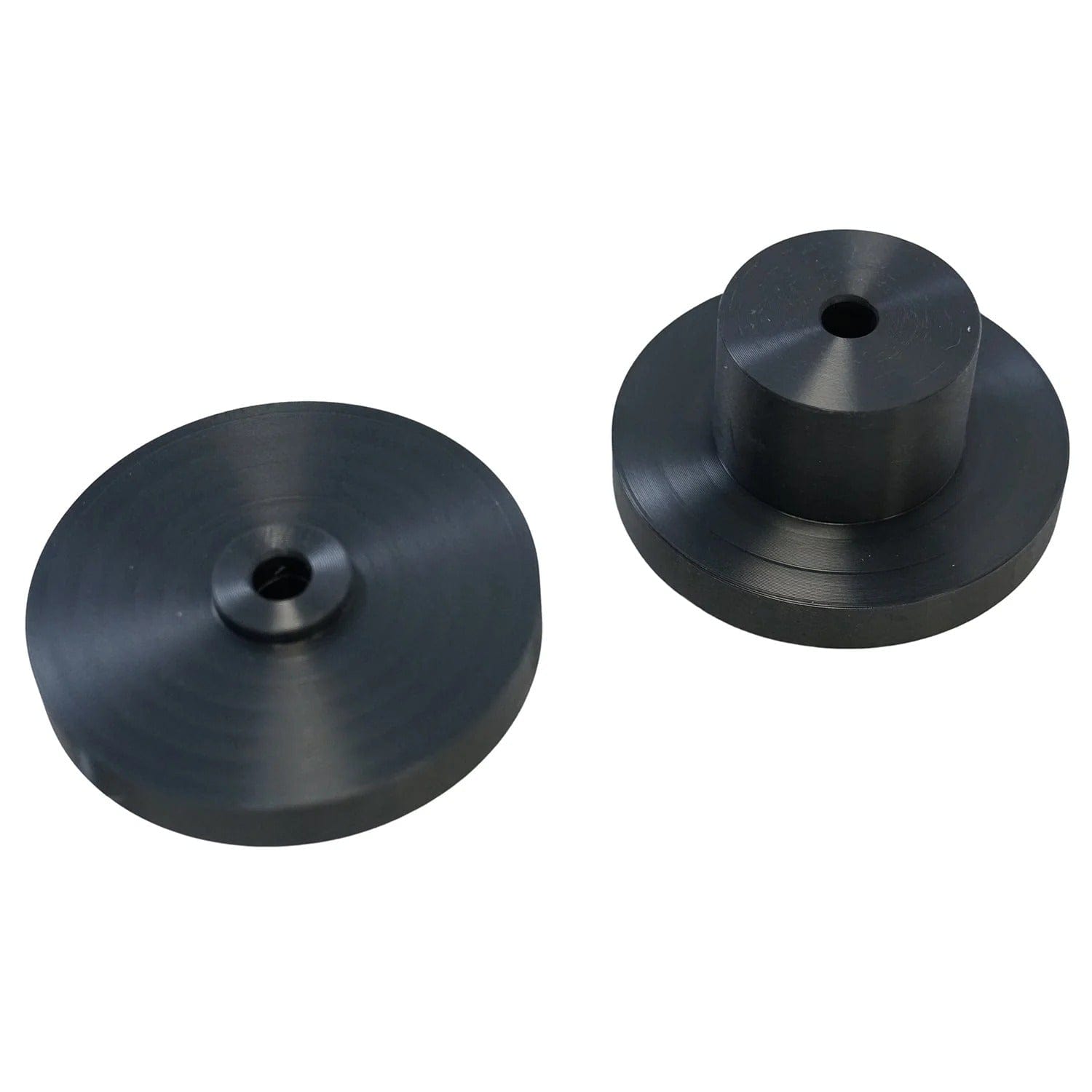

- New Mounts
- All Necessary Hardware
- Detailed Instructions
This Conversion Kit Fits
- 2010 Mercedes-Benz GL350 BlueTEC Diesel 4MATIC
- 2011 Mercedes-Benz GL350 BlueTEC Diesel 4MATIC
- 2012 Mercedes-Benz GL350 BlueTEC Diesel 4MATIC

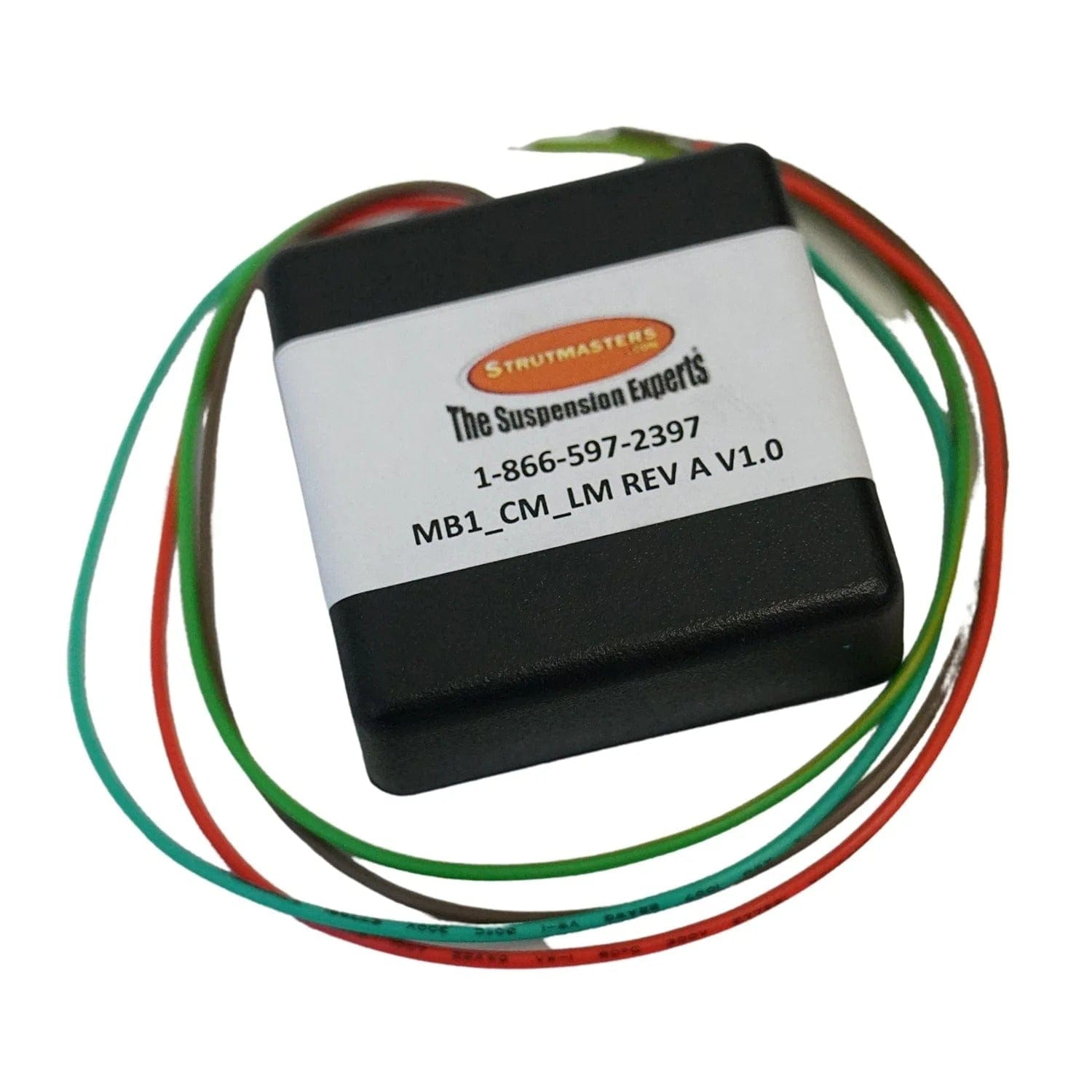

- This kit includes the module to remove the suspension warning light.
- This kit fits both models with and without Active Dampening Suspension!
The 2010-2012 Mercedes-Benz GL350 BlueTEC Diesel 4MATIC is built with the following suspension components:
2010-2012 Mercedes-Benz GL350 BlueTEC Diesel 4MATIC Air Struts (models with Active Dampening Suspension) (x2)- shocks whose dampening capabilities are controlled by the suspension control module.
2010-2012 Mercedes-Benz GL350 BlueTEC Diesel 4MATIC Coilover Struts (models without Active Dampening Suspension) (x2)- A type of shock absorber, it is a piece of metal tubing filled with gas-charged hydraulic fluid that is connected to the wheel of a vehicle in order to reduce the effects of vertical travel on a rough surface which controls the bounciness, and therefore comfort, of a vehicle. Coil springs fit around the top portion of the struts and hold the vehicle up, they are rated for and designed to work with the rest of the suspension system.
2010-2012 Mercedes-Benz GL350 BlueTEC Diesel 4MATIC Shock Absorbers (x2)- a metal tubing filled with gas-charged hydraulic fluid that is connected to the wheel of a vehicle in order to reduce the effects of vertical travel on a rough surface which controls the bounciness, and therefore comfort, of a vehicle.
2010-2012 Mercedes-Benz GL350 BlueTEC Diesel 4MATIC Air Springs (x2)- commonly referred to as air bags, a plastic and rubber bag that is fitted on top of the strut that uses pressurized air as a cushion instead of a metal coil spring to hold a vehicle off of the ground and off of its wheels. These are the number one cause of all air suspension leaks. All air springs all go bad at about the same rate. If one is leaking, the others will not be far behind. For a proper repair, all of them need to be replaced at the same time.
2010-2012 Mercedes-Benz GL350 BlueTEC Diesel 4MATIC Height Sensors (x4)- a linkage located near each wheel of a vehicle with any electronic suspension that, either mechanically or electronically, constantly measures the height of the vehicle, and reports this information back to the control module so that the computer can identify if changes in height need to be adjusted accordingly. The ride height sensor is a moving part, and like all moving parts, they will eventually wear out.
2010-2012 Mercedes-Benz GL350 BlueTEC Diesel 4MATIC Air Lines- tubes that run from a compressor to the air springs, which carry pressurized air to the air bags.
2010-2012 Mercedes-Benz GL350 BlueTEC Diesel Solenoids (models with Active Dampening Suspension) (x4)- usually L-shaped, these plastic components connect the electrical connection and lines of suspension components to the suspension control module on vehicles with active suspension. The solenoid regulates the air pressure for each air spring. Solenoids start to leak as they wear out causing the vehicle to sag or to lean. This will cause the ride height sensor to send a signal to activate the compressor in an attempt to inflate the air suspension and level out the vehicle. This excessive work load will eventually lead to total failure of the compressor.
2010-2012 Mercedes-Benz GL350 BlueTEC Diesel 4MATIC Compressor Assembly- creates/sends pressurized air to active suspension components. When the air suspension starts leaking, the compressor/pump starts working harder to try to keep the system inflated. By the time air suspension leaks down completely, sitting the vehicle on its tires, the compressor will either have failed or be well on its way to full failure. Buying replacement struts and taking the time to install them only to find out the compressor still needs to be replaced can be very frustrating, time-consuming, and expensive.
2010-2012 Mercedes-Benz GL350 BlueTEC Diesel 4MATIC Suspension Control Module- a computer which is responsible for the operations of the air suspension system and maintaining the vehicles correct ride height.
2010-2012 Mercedes-Benz GL350 BlueTEC Diesel O-rings- although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.
Suspension Failure Signs
If the Mercedes-Benz GL350 BlueTEC Diesel is unable to reach and maintain the proper ride height, it may be suffering from a failed or leaking air suspension system. Identification of a bad suspension is critical to avoiding total failure. Look for a sudden uneven height variance between different sides of the GL350. A sagging rear end or an unusually inflated front end are commonly seen. The GL350 may have the appearance of squatting down too low to the ground. These height imbalances will wear out the air compressor if they aren't fixed promptly. Look for signs that the air compressor is running too often or has already ceased working. An illuminated suspension warning light is the most obvious indicator. At this point, suspension failure is advanced. An expensive repair or direct replacement is necessary.
OEM Replacement Cost
- Front Air Struts (w/Active Dampening System) ($1,080/strut) +
- Rear Air Strut (w/ADS) ($556/strut) +
- Air Compressor Assembly ($420) +
- Pressure Accumulator (w/ADS) ($300)
- = TOTAL: Over $3,900 (and that doesnt even include replacing electronic components that are known to fail such as the height sensors).
Aftermarket Replacement Cost
- Front Air Struts (w/Active Dampening System) ($650/strut) +
- Rear Air Strut ($680/strut) +
- Air Compressor Assembly ($490) +
- Pressure Accumulator ($230)
- = TOTAL: Over $3,300 (and that doesn't even include replacing electronic components that are known to fail such as the height sensors).
