The 2013-2019 Mercedes-Benz GL/GLS 450 Rear Air Suspension Conversion Kit (MK1R0) is the perfect solution to your air suspension problems. Designed to be very affordable, you can convert your air suspension to use passive shocks and coil springs for less than the price of replacing one original equipment air spring.
$569.00 In Stock Sold out
IN STOCK & SHIPS FAST!
Need assistance buying the right part? Speak to an expert now.
Monday - Friday: 8 AM - 9 PM
Monday - Friday: 8 AM - 9 PM
Saturday: 9 AM - 6 PM
This product is vehicle specific.
Select a vehicle to ensure fitment.
- Why Strutmasters
- OEM Numbers
THIS KIT FITSPLEASE NOTE: This product will fit if you have air suspension in the rear ONLY and standard suspension in the front of your vehicle. If your vehicle has air suspension on all 4 corners, a 4-wheel conversion kit will be required to fix your suspension. Please give us a call if you aren't sure.
- 2013 MERCEDES-BENZ GL/GLS 450
- 2014 MERCEDES-BENZ GL/GLS 450
- 2015 MERCEDES-BENZ GL/GLS 450
- 2016 MERCEDES-BENZ GL/GLS 450
- 2017 MERCEDES-BENZ GL/GLS 450
- 2018 MERCEDES-BENZ GL/GLS 450
- 2019 MERCEDES-BENZ GL/GLS 450
Convert Your AIR Suspension To A Coil Spring Suspension End Your Suspension Problems Forever...Strutmasters 2013-2019 Mercedes-Benz GL/GLS 450 Rear Conversion Kit is the perfect solution to your rear suspension problems. Designed to be very affordable, you can convert your rear suspension to use coil springs for less than the price of replacing one Air Spring. KIT CLASS: PREMIUM WARRANTY: LIFETIME
- Saves Money
- Replaces Your Rear Air System
- All New Components
- Rides Great
- No Modifications Required To Install
- Easy To Install
- Premium Springs
- 2 Rear Springs
- New Mounts
- All Necessary Hardware
- Detailed Instructions
The 2013-2019 Mercedes-Benz GL/GLS 450 is built with the following rear suspension components: 2013-2019 Mercedes-Benz GL/GLS 450 Air Springs (x2)- commonly referred to as air bags, a plastic and rubber bag that is fitted on top of the strut that uses pressurized air as a cushion instead of a metal coil spring to hold a vehicle off of the ground and off of its wheels. These are the number one cause of all air suspension leaks. All air springs all go bad at about the same rate. If one is leaking, the others will not be far behind. For a proper repair, all of them need to be replaced at the same time. 2013-2019 Mercedes-Benz GL/GLS 450 Height Sensors (x2)- a linkage located near each wheel of a vehicle with any electronic suspension that, either mechanically or electronically, constantly measures the height of the vehicle, and reports this information back to the control module so that the computer can identify if changes in height need to be adjusted accordingly. The ride height sensor is a moving part, and like all moving parts, they will eventually wear out. 2013-2019 Mercedes-Benz GL/GLS 450 Air Lines- tubes that run from a compressor to the air springs, which carry pressurized air to the air bags. 2013-2019 Mercedes-Benz GL/GLS 450 Solenoids (x2)- usually L-shaped, these plastic components connect the electrical connection and lines of suspension components to the suspension control module on vehicles with active suspension. The solenoid regulates the air pressure for each air spring. Solenoids start to leak as they wear out causing the vehicle to sag or to lean. This will cause the ride height sensor to send a signal to activate the compressor in an attempt to inflate the air suspension and level out the vehicle. This excessive work load will eventually lead to total failure of the compressor. 2013-2019 Mercedes-Benz GL/GLS 450 Compressor Assembly- creates/sends pressurized air to active suspension components. When the air suspension starts leaking, the compressor/pump starts working harder to try to keep the system inflated. By the time air suspension leaks down completely, sitting the vehicle on its tires, the compressor will either have failed or be well on its way to full failure. Buying replacement struts and taking the time to install them only to find out the compressor still needs to be replaced can be very frustrating, time-consuming, and expensive. 2013-2019 Mercedes-Benz GL/GLS 450 Suspension Control Module- a computer which is responsible for the operations of the air suspension system and maintaining the vehicles correct ride height. 2013-2019 Mercedes-Benz GL/GLS 450 O-rings- although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.
Suspension Failure Signs
There are common signs that indicate a failed or leaking air suspension system in the 2013-2019 Mercedes-Benz GL/GLS 450. Early detection is the key to avoiding total failure. A sudden uneven ride height is a major red flag. Look for variances in the height from one side to the other such as one sagging end, one inflated end, or a ‚Äúsquatting down‚Äù appearance. Check the air compressor- has it stopped working? Is it running too often? Is there a suspension warning light illuminated on the dash? These are all symptoms that point to suspension failure. The GL/GLS 450 owner should get the suspension fixed as soon as an issue presents itself. The longer one waits, the more expensive the repair will be.
OEM Replacement Cost
'+ Rear Electronic Shocks ($740/shock)
+ Rear Air/Hydraulic Spring ($430/spring)
+ Air Compressor Assembly ($540)
= TOTAL: Over $2,800 (and that doesnt even include replacing electronic components that are known to fail such as the height sensors).
Aftermarket Replacement Cost
'+ Rear Electronic Shocks ($110/shock)
+ Rear Air/Hydraulic Spring ($190/spring)
+ Air Compressor Assembly ($680)
= TOTAL: Over $1,200 (and that doesn't even include replacing electronic components that are known to fail such as the height sensors).

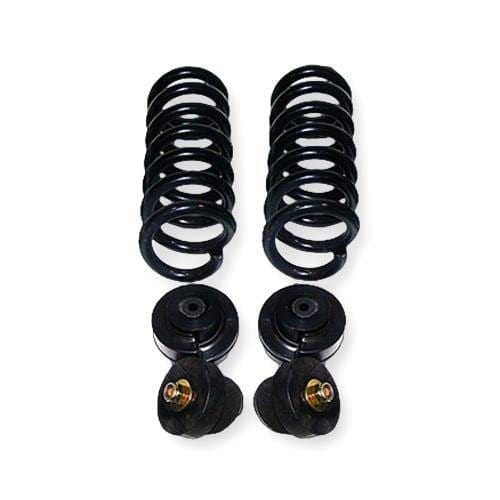

Strutmasters' air to non-air suspension conversion kit saves GL/GLS 450 owners time, frustration, and money when the air suspension system fails. This kit, made in America, gets rid of the complicated electrical air components for good. It eliminates the complex reliance the parts have on each other. The kit comes complete with two coil springs with mounts for the rear. Customers appreciate that the kit is installed in as little as one hour per wheel, thanks to easy to follow instructions and online installation videos. If further assistance is needed, Strutmasters' ASE certified experts are available to offer technical support over the phone. Strutmasters' 1-year warranty guarantees customers' satisfaction with the quality parts in the kit. Lastly, the kit costs a fraction of the price of dealership direct replacement and individual aftermarket part replacement. Read the customer reviews to see firsthand why the majority of GL/GLS 450 owners switch over to non-air suspension with our coilover kit.
1643200225, 1643200625, 1643200925, 1643201025, 1643200825, 1643200425, 1643200725, 1663200625, 1663200325, 164320082564, 2923200525
