2013-2019 Mercedes-Benz GL450/GLS450 4MATIC 4-Wheel Air Suspension Conversion Kit with Shocks (MK24F)
Monday - Friday: 8 AM - 9 PM
Saturday: 9 AM - 6 PM
- Why Strutmasters
- OEM Numbers
Convert Your AIR Suspension To A Coil Spring Suspension End Your Suspension Problems Forever...Strutmasters 2013-2019 Mercedes-Benz GL450/GLS450 4MATIC 4-Wheel Air Suspension Conversion Kit with Shocks (MK24F) is the perfect solution to your suspension problems. Designed to be very affordable, you can convert your suspension to use standard shocks and coil springs for less than the price of replacing one Air Spring.
Conversion Kit Features
- Saves Money
- Replaces Your Rear Air System
- All New Components
- Rides Great
- No Modifications Required To Install
- Easy To Install
- Premium Springs

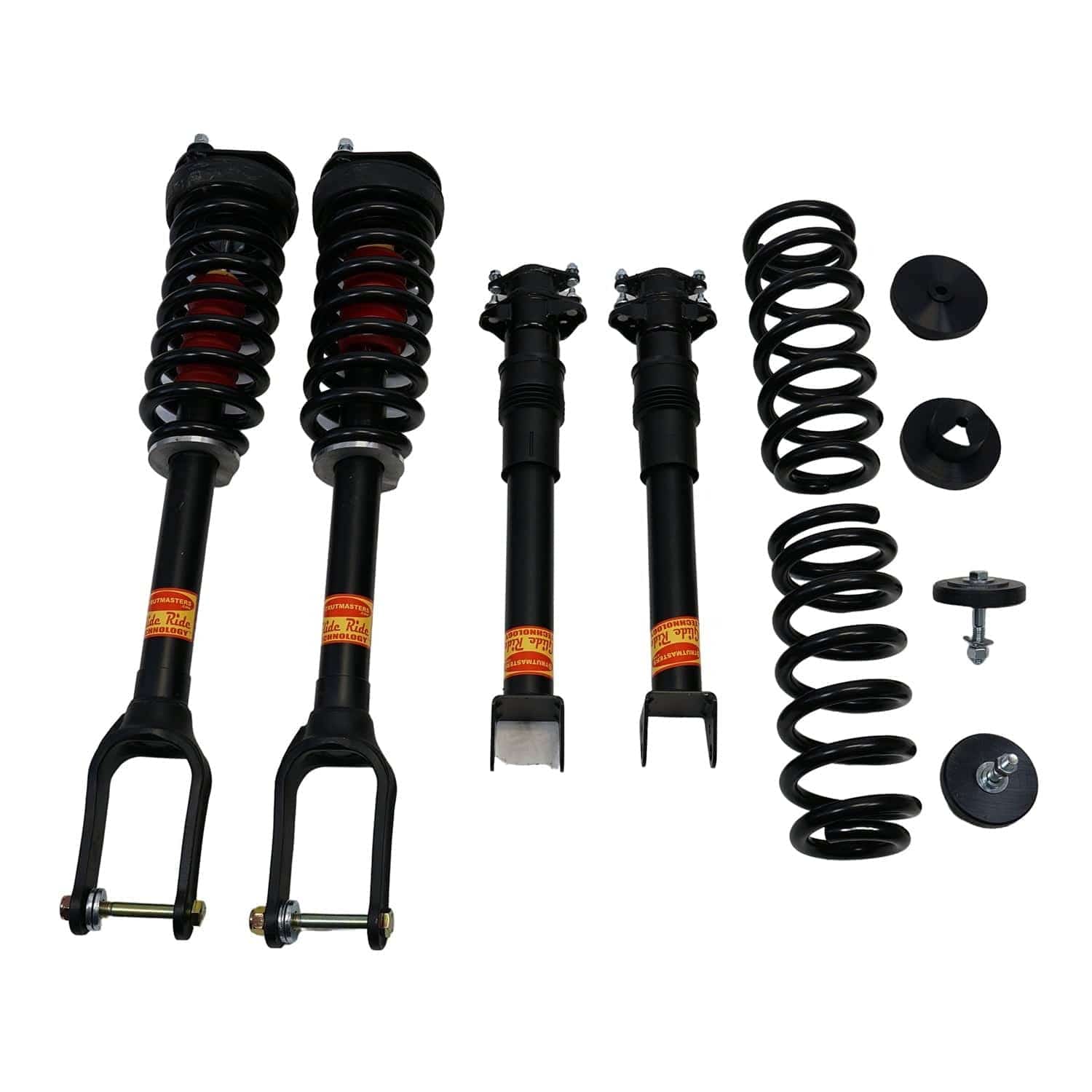

Air Suspension Conversion Kit Includes
- 2 Rear Shocks

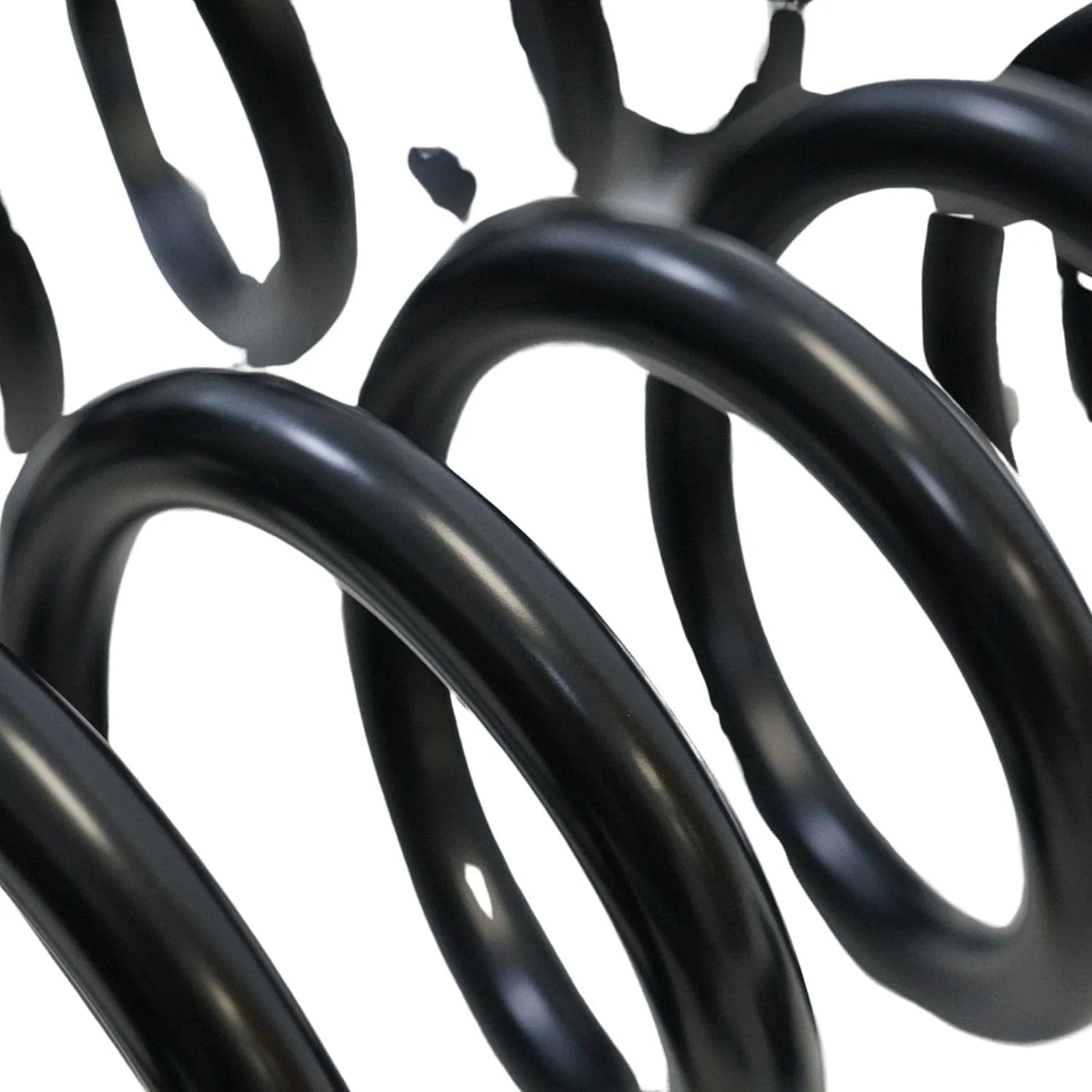

- 2 Rear Coil Springs

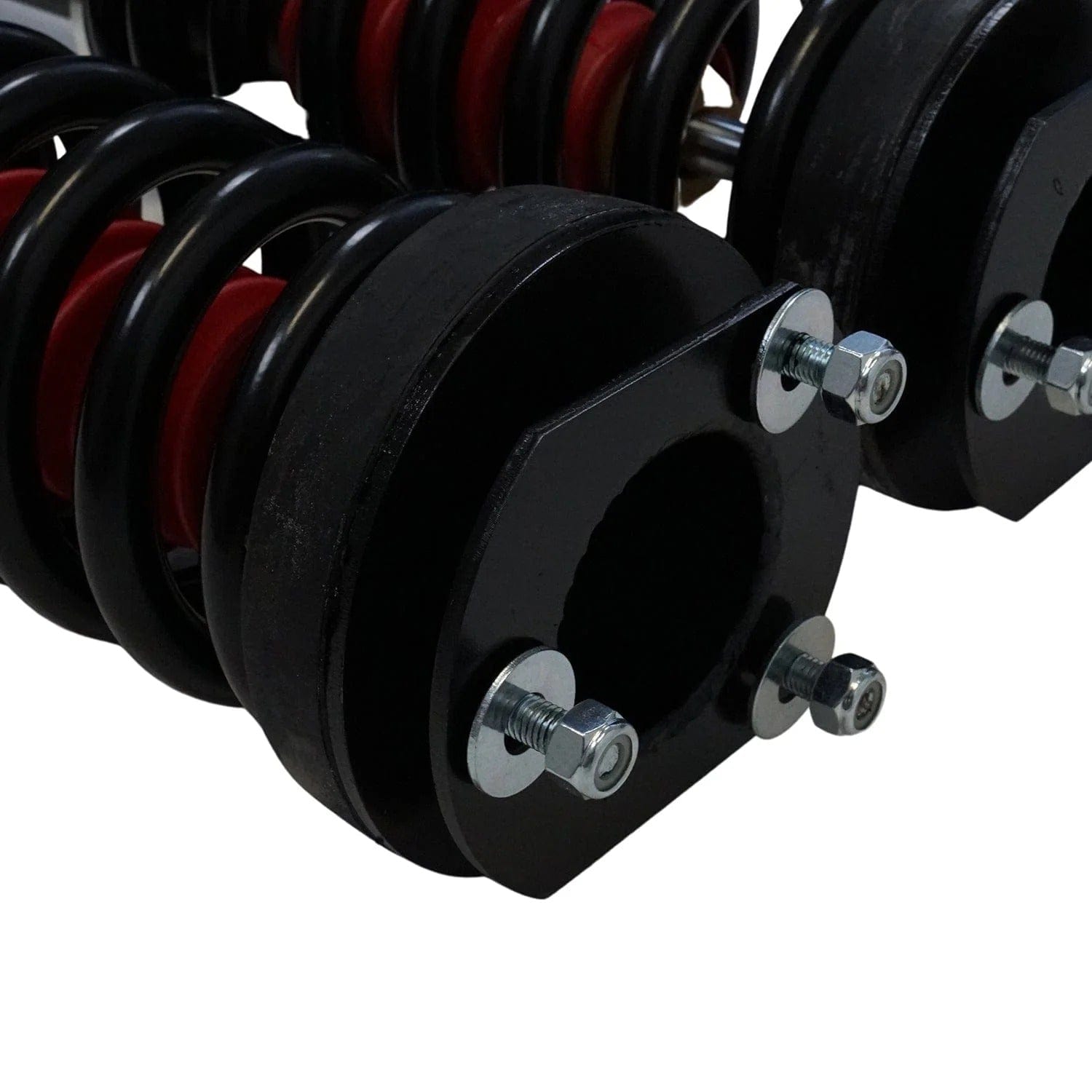

- 2 Front Coilover Struts Preloaded with Premium Springs

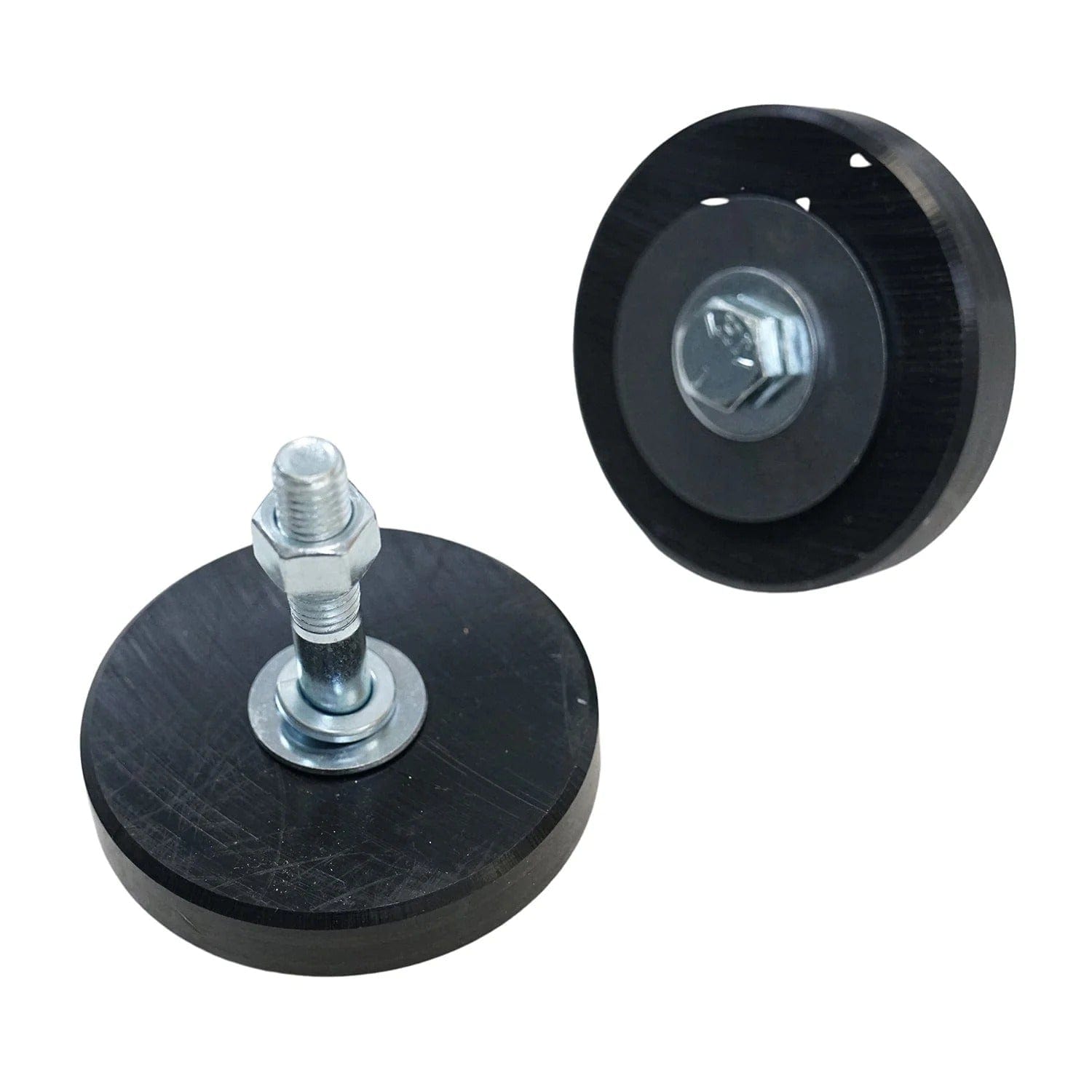

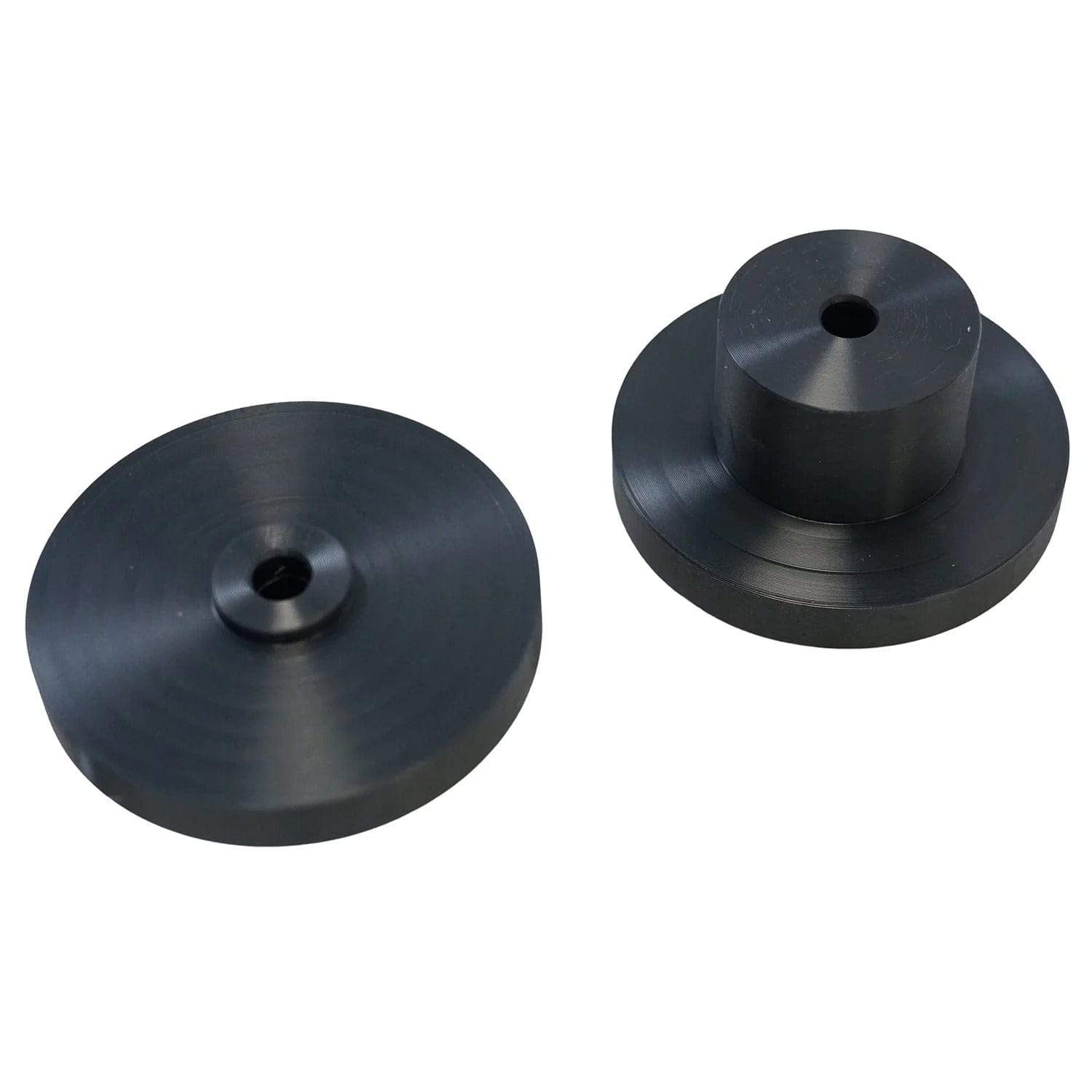

- New Mounts
- All Necessary Hardware
- Detailed Instructions
This Conversion Kit Fits
- 2013-2019 Mercedes-Benz GL450/GLS450 4MATIC
- This kit fits both models with and without Active Dampening Suspension!
The 2013-2019 Mercedes-Benz GL450/GLS450 4MATIC is built with the following suspension components:
2013-2019 Mercedes-Benz GL450/GLS450 4MATIC Air Struts (models with Active Dampening Suspension) (x2)- shocks whose dampening capabilities are controlled by the suspension control module.
2013-2019 Mercedes-Benz GL450/GLS450 4MATIC Coilover Struts (models without Active Dampening Suspension) (x2)- A type of shock absorber, it is a piece of metal tubing filled with gas-charged hydraulic fluid that is connected to the wheel of a vehicle in order to reduce the effects of vertical travel on a rough surface which controls the bounciness, and therefore comfort, of a vehicle. Coil springs fit around the top portion of the struts and hold the vehicle up, they are rated for and designed to work with the rest of the suspension system.
2013-2019 Mercedes-Benz GL450/GLS450 4MATIC Shock Absorbers (x2)- a metal tubing filled with gas-charged hydraulic fluid that is connected to the wheel of a vehicle in order to reduce the effects of vertical travel on a rough surface which controls the bounciness, and therefore comfort, of a vehicle.
2013-2019 Mercedes-Benz GL450/GLS450 4MATIC Air Springs (x2)- commonly referred to as air bags, a plastic and rubber bag that is fitted on top of the strut that uses pressurized air as a cushion instead of a metal coil spring to hold a vehicle off of the ground and off of its wheels. These are the number one cause of all air suspension leaks. All air springs all go bad at about the same rate. If one is leaking, the others will not be far behind. For a proper repair, all of them need to be replaced at the same time.
2013-2019 Mercedes-Benz GL450/GLS450 4MATIC Height Sensors (x4)- a linkage located near each wheel of a vehicle with any electronic suspension that, either mechanically or electronically, constantly measures the height of the vehicle, and reports this information back to the control module so that the computer can identify if changes in height need to be adjusted accordingly. The ride height sensor is a moving part, and like all moving parts, they will eventually wear out.
2013-2019 Mercedes-Benz GL450/GLS450 4MATIC Air Lines- tubes that run from a compressor to the air springs, which carry pressurized air to the air bags.
2013-2019 Mercedes-Benz GL450/GLS450 4MATIC Solenoids (models with Active Dampening Suspension) (x4)- usually L-shaped, these plastic components connect the electrical connection and lines of suspension components to the suspension control module on vehicles with active suspension. The solenoid regulates the air pressure for each air spring. Solenoids start to leak as they wear out causing the vehicle to sag or to lean. This will cause the ride height sensor to send a signal to activate the compressor in an attempt to inflate the air suspension and level out the vehicle. This excessive work load will eventually lead to total failure of the compressor.
2013-2019 Mercedes-Benz GL450/GLS450 4MATIC Compressor Assembly- creates/sends pressurized air to active suspension components. When the air suspension starts leaking, the compressor/pump starts working harder to try to keep the system inflated. By the time air suspension leaks down completely, sitting the vehicle on its tires, the compressor will either have failed or be well on its way to full failure. Buying replacement struts and taking the time to install them only to find out the compressor still needs to be replaced can be very frustrating, time-consuming, and expensive.
2013-2019 Mercedes-Benz GL450/GLS450 4MATIC AMG O-rings- although they are the least expensive parts of the air suspension, they are responsible for maintaining the seal where all of the air lines connect. Be sure to replace the O-rings when repairing any air suspension system.
Suspension Failure Signs
Early detection of a failed or leaking air suspension system is critical to avoiding total failure. Look for the following signs that indicate the air suspension system on the 2013-2019 Mercedes-Benz GL450/GLS450 4MATIC is going bad. The most noticeable is a sudden height imbalance between different sides of the GL450/GLS450. A sagging rear end with an inflated front end is commonly seen. There may be a shifting lean from one side to the other. The vehicle may look like it's squatting down too low to the ground. These height variances will wear out the air compressor, if not addressed in a timely fashion. If the air compressor has already ceased working, a suspension warning light will turn on in the vehicle. At this point, suspension failure is advanced and an expensive repair is needed to get the vehicle fixed.
OEM Replacement Cost
- Front Air Struts (w/Active Dampening System) ($1,080/strut) +
- Rear Air Strut (w/ADS) ($556/strut) +
- Air Compressor Assembly ($420) +
- Pressure Accumulator (w/ADS) ($300)=
- TOTAL: Over $3,900 (and that doesnt even include replacing electronic components that are known to fail such as the height sensors).
Aftermarket Replacement Cost
- Front Air Struts (w/Active Dampening System) ($650/strut) +
- Rear Air Strut ($680/strut) +
- Air Compressor Assembly ($490) +
- Pressure Accumulator ($230) =
- TOTAL: Over $3,300 (and that doesn't even include replacing electronic components that are known to fail such as the height sensors).
