If you're researching Cadillac Escalade air suspension cost, you've probably already heard the compressor running nonstop, seen the warning light on the dash, or watched your truck sag overnight in the driveway. You're not alone — and you're not overreacting. Air suspension failure is one of the most expensive, frustrating problems Escalade owners face.
This guide breaks down every repair scenario by dollar amount: dealer, independent shop, DIY, and the conversion kit option that thousands of Escalade owners use to end the cycle for good. No fluff — just the real numbers.
Why Escalade Air Suspension Fails (And Why It Keeps Failing)
The Escalade's Automatic Level Control (ALC) and Continuously Variable Road Sensing Suspension (CVRSS) systems are impressive when new. But these systems have a fundamental weakness: rubber degrades over time.
The most common failure point is the air spring (also called an air bag). The rubber bladder dries out, cracks, and begins leaking — usually somewhere between 80,000 and 120,000 miles, though some owners see problems earlier. Once an air spring leaks, the compressor has to work harder to maintain ride height. Run it long enough in this state and the compressor burns out too.
Common failure modes include:
Air bag / air spring leaks — The most frequent culprit. Rubber dry-rots and cracks, especially in climates with temperature swings.
Compressor failure — Directly caused by air spring leaks. The compressor overworks to compensate until it burns out.
Solenoid leaks — Valves wear and lose their seal.
Height sensor failure — Throws false readings, causing the system to over-inflate or under-inflate.
Dryer assembly failure — The dryer absorbs moisture from the air supply; when it saturates, moisture enters the system and causes internal corrosion.
O-ring degradation — Small leaks at connection points that are easy to miss and hard to seal permanently.
Some Escalades will display a suspension warning and cap vehicle speed at 80 mph when the system detects a fault. That's your truck telling you something is wrong — and that "something" usually leads to something bigger.
The Cascading Failure Trap
Here's the pattern that catches Escalade owners off guard:
One air spring starts leaking. You get it replaced. ~$878–$1,072 at the dealer, per RepairPal and YourMechanic estimates.
The compressor has already been stressed. Months later, it fails. Dealer compressor replacement: $835–$971.
Now the other air springs are aging too. They start leaking one by one. Each rear air shock replacement (both): ~$1,565. Each front electronic shock replacement (both): ~$1,800.
Total spent — fixing parts piecemeal: $4,000–$5,500+. And you still have an aging air suspension system.
This is the "money pit" scenario that shows up on every Escalade forum. LegitStreetCars documented a real-world 2018 dealer quote for full Escalade suspension overhaul (compressor + all four corners + alignment) coming in around $4,400 — and that's on the lower end. Forum reports commonly put the full bill at $5,000 or more for newer generations.
The trap isn't just the cost. It's that you keep paying it over and over because you're repairing a fundamentally aging system one part at a time instead of replacing the whole thing.
Cadillac Escalade Air Suspension Cost: Complete Breakdown by Repair Type
Dealer Repair Costs
Dealers use OEM parts and charge full labor rates. Costs sourced from RepairPal, YourMechanic, and real-world owner reports:
Component | Dealer Estimate |
|---|---|
Air spring replacement (one corner) | $878–$1,072 |
Rear air shocks (both) | ~$1,565 |
Front electronic shocks (both) | ~$1,800 |
Air compressor replacement | $835–$971 |
Full system overhaul (all 4 corners + compressor + alignment) | $4,400–$5,500+ |
Independent Shop Costs
An independent mechanic using quality aftermarket parts can reduce labor rates by 30–40%. Expect a full overhaul in the $2,500–$3,500 range, depending on your market. Parts quality varies widely — some shops use cheap rebuild kits that fail again within a year.
DIY Costs
If you're mechanically inclined, sourcing parts yourself and doing the labor (or hiring a shop just for installation) can bring the total down significantly. Budget approximately $1,060 in parts for a DIY full-system replacement, plus any labor if you need help. Total DIY cost: under $2,000 — but this still leaves you with rebuilt air suspension that will eventually fail again.
4-Column Cost Comparison: All Options Side by Side
Repair Scenario | Typical Cost (Full 4-Wheel) | Parts Warranty | Failure Risk |
|---|---|---|---|
Dealership | $4,400–$5,500+ | OEM warranty (varies) | Medium — OEM parts, but air system ages again |
Independent Shop | $2,500–$3,500 | Varies by shop | Medium–High — parts quality varies |
DIY | ~$1,060–$2,000 | Limited | High — complexity, system still ages |
Strutmasters Conversion Kit (2007–2014) | $779 | 1-Year | Low — eliminates air system entirely |
Strutmasters Conversion Kit (2002–2006 rear) | $389 | 1-Year | Low — eliminates air system in rear |
Year-by-Year Cost Context
2002–2006 Escalade
These trucks are well past the age at which air suspension components reliably fail. The OEM MSRP for a rear air spring replacement alone on this generation is $1,625. The Strutmasters rear conversion kit for 2002–2006 Escalades is $389 — roughly 76% less than replacing just the rear OEM components, and it eliminates the problem permanently.
2007–2014 Escalade
The most commonly affected generation in the current market. Owners in this range are hitting the 10–15+ year mark on suspension components. Strutmasters offers a complete 4-wheel conversion kit for $779, compared to $3,000–$5,000+ at the dealer. That's a savings of 76% or more.
2015–2020 Escalade
If you're in this range and starting to see early symptoms — compressor running frequently, slight sagging, warning lights — it's worth knowing your options before the system fails completely. Strutmasters offers solutions for this generation as well, and getting ahead of a full failure is significantly cheaper than reacting to one.
What a Conversion Kit Actually Does
A Strutmasters coilover conversion kit replaces your entire air suspension system — air springs, compressor, all associated hardware — with a conventional passive coil spring and strut setup. Once installed:
No more air springs to leak
No more compressor to burn out
No more solenoids, sensors, or dryer assemblies to fail
No more suspension warning lights
The ride quality trade-off is minimal to none for most daily drivers and highway commuters. You lose the automatic level control, but you gain a suspension system that simply works — every day, in every season, for years.
The Strutmasters MagneRide premium kit (for compatible Escalade trims) is available at approximately $1,500 and comes with a 3-year full warranty for owners who want added peace of mind.
The Math Is Simple
If you've already spent money on one air spring replacement, or you're about to, do the math before you commit:
One dealer air spring repair: $878–$1,072
Add a compressor replacement when it follows: +$835–$971
Add the other corners when they go: +$3,000–$4,000
Total piecemeal repair bill: $4,700–$6,000+
Or:
Strutmasters 4-wheel conversion kit (2007–2014): $779 — one time, done
Stop Paying the Air Suspension Tax
The Cadillac Escalade air suspension cost doesn't have to be a recurring line item in your budget. The compressor, the air springs, the solenoids — every one of those components has a clock on it. Every repair just resets the clock on that one part while the rest keep ticking.
A Strutmasters conversion kit resets the entire system to something that doesn't require a clock.
Ready to end the cycle?
👉 Shop Strutmasters Cadillac Escalade Conversion Kits — find the kit for your year, order direct, and get your truck back on solid ground. Most kits ship same day. Installation takes 2–3 hours at any shop or in your own driveway with basic tools.
Your Escalade was built to last. Its air suspension wasn't. Fix that — once.
Cost estimates sourced from RepairPal, YourMechanic, and real-world owner reports including LegitStreetCars. Kit pricing based on current Strutmasters product listings. Always verify current pricing at strutmasters.com

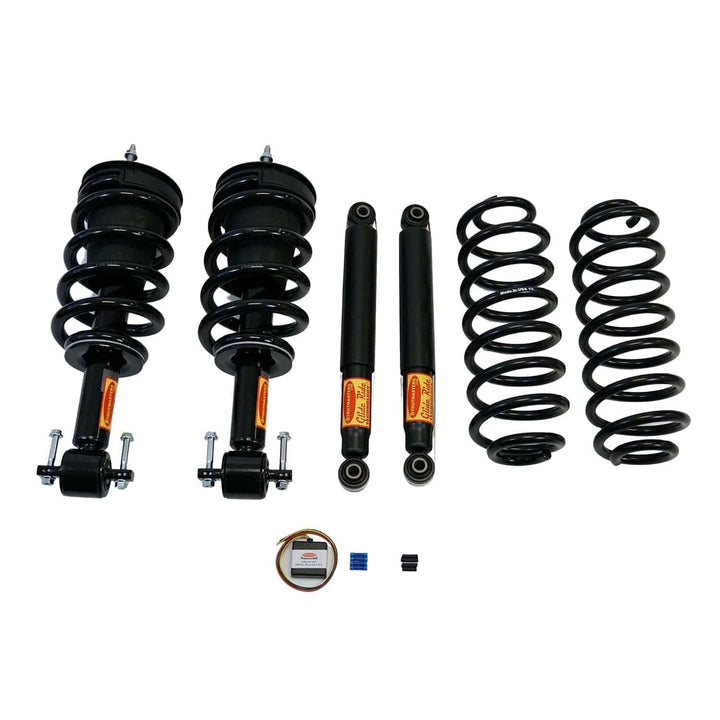

2015-2020 Cadillac Escalade 4-Wheel Air Suspension Conversion Kit / Delete Kit with Light Out Module (GC44FM)
$1,049.00
Convert Your Air Suspension To A Coil Spring Suspension. End Your Air Suspension Problems Forever... Strutmasters 2015-2020 Cadillac Escalade Four Wheel Suspension Conversion Kit with Light Out Module (GC44FM) is the perfect solution to your air and electronic suspension problems.… read more

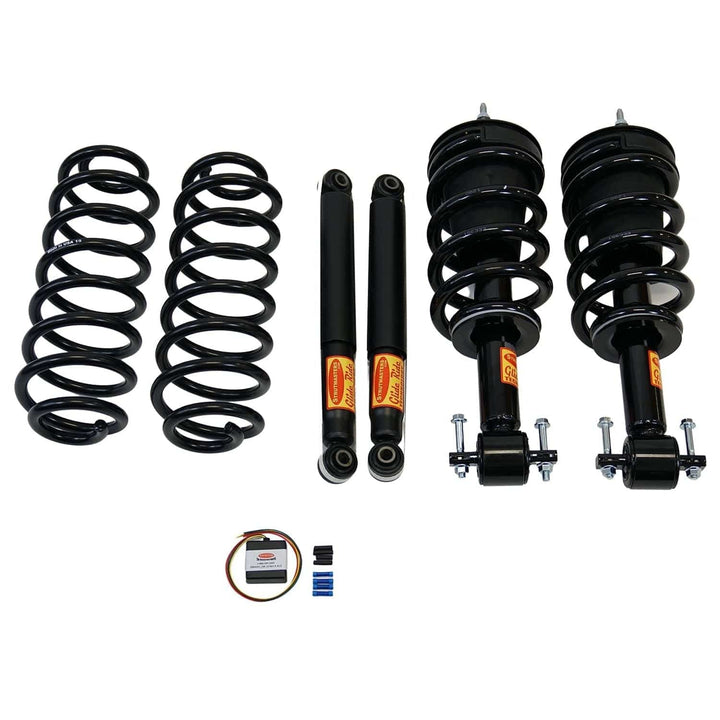

2007-2013 Cadillac Escalade, Escalade ESV, EXT 4-Wheel Air Suspension Conversion Kit / Delete Kit With Suspension Light Module (GC24FM)
$849.00
Convert Your Air and Electronic Suspension To A Passive Coil Spring Suspension. End Your Active Suspension Problems Forever... Buying and installing this genuine Strutmasters 2007-2013 Cadillac Escalade 4 Wheel Suspension Conversion Kit is one of the few ways to truly… read more

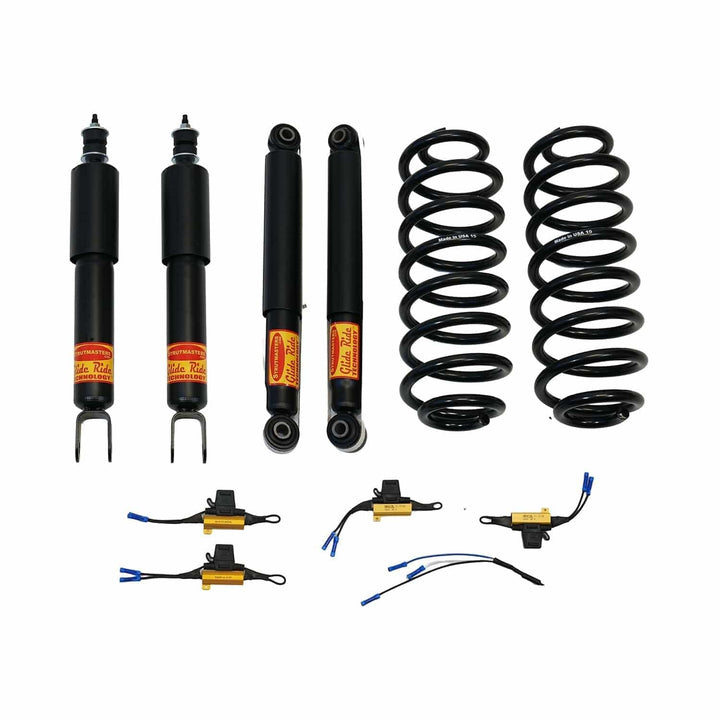

2002-2006 Cadillac Escalade, Escalade ESV, EXT 4-Wheel Air Suspension Conversion/Delete Kit (GC14F)
$639.00
Convert Your Active Air and Electronic Suspension To A Passive Suspension. End Your Air Suspension Problems Forever... This Strutmasters 2000-2006 Cadillac Escalade ESV & EXT 4 Wheel Air Suspension Conversion Kit will bring an end to your air suspension troubles… read more
FAQs
How much does it cost to fix Cadillac Escalade air suspension at a dealership?
Dealer costs vary by repair scope. A single air spring replacement runs $878–$1,072, compressor replacement is $835–$971, and a full system overhaul covering all four corners plus alignment typically lands at $4,400–$5,500 or more — especially on newer generations.
Is it worth fixing air suspension on a Cadillac Escalade?
It depends on what you're fixing. Piecemeal OEM repairs are rarely worth it — the cascading failure pattern means one fix usually leads to another. For most owners, a one-time conversion to coilover struts (starting at $779 for a full 4-wheel kit) is the more financially sound choice.
What causes Cadillac Escalade air suspension to fail?
The most common cause is rubber air spring degradation — the bladders dry-rot and crack over time, causing leaks. That forces the compressor to overwork until it burns out too. Solenoids, height sensors, and dryer assemblies also wear out, often in sequence.
How much does a Strutmasters conversion kit cost for a Cadillac Escalade?
The 2007–2014 Escalade 4-wheel conversion kit is $779. The 2002–2006 rear conversion kit is $389. A premium MagneRide-compatible kit runs approximately $1,500 with a 1-year full warranty. All kits eliminate the air suspension system entirely.
Can I install a Cadillac Escalade air suspension conversion kit myself?
Yes — most Strutmasters kits are DIY-friendly and designed to install in about 2–3 hours per vehicle. Kits come with instructions and video support. No special tools required beyond standard shop equipment.
